FULL DESCRIPTION of Item 159005

in Die Shear Testers 		Deal directly with Owner:  Catalyst Equipment Corporation of Plano, Texas

Item ID: 159005

Offered 1 Offered at Best Price

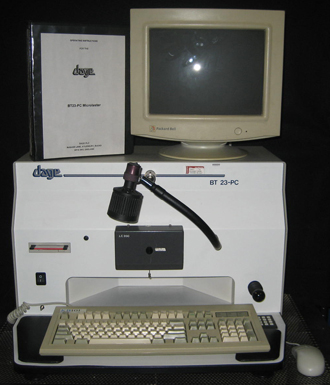

Dage BT23PC

Die Shear Tester 		Dage BT23PC
  Click to see additional image(s)... other images

Location: Plano, TX
Unit Price Unstated
Number of Units 1
Manufacturer Dage Precision
Model BT23PC
Description Die Shear Tester
Other Information

  • Shear Tester for Ball Bonds and Tab Bump
  • LC200 Load Cell
  • Destruct/Non-Destruct Testing
  • 2.0mm (0.08in) X-Axis Travel
  • 0.15mm (0.006in) tip width – Shear Tool Size
  • 3 to 7g (0.107 to 0.25ozf) Tool Landing Force
  • 0.5mm (0.02in) full scale – Load Beam Deflection
  • X-Axis – left to right, Shear Test Direction
Condition Excellent
Year of Manufacture 1995

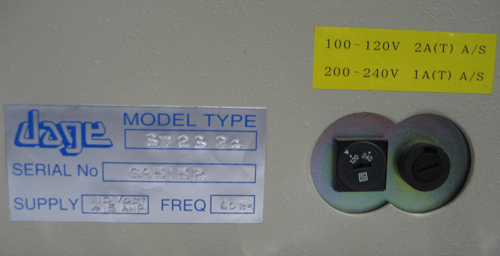

Power Requirements 110 V     4.5 A     60 Hz
CE Marked YES

OFFERED BY:
(click name below to visit its website directly)
Catalyst Equipment Corporation
Plano , Texas
+1.972.943.0808



Deal directly with Owner:  Catalyst Equipment Corporation of Plano, Texas
