FULL DESCRIPTION of Item 186357

in Vacuum Pumping Systems
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 186357

Offered 1 Offered at Best Price


OERLIKON LEYBOLD RBS RUTA ROOTS PUMPING SYSTEM 140 CFM

RBS-B Roots Pumping System

OERLIKON LEYBOLD RBS RUTA ROOTS PUMPING SYSTEM 140 CFM
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Oerlikon Leybold
Model WSU251/D40B
Pumping Speed 140.0  CFM  (3,956.0 l/m)
Ultimate Pressure  1.00E-4(En)  torr  (1.33E-4 mbar)
Inlet Flange ASA     76.2  mm  (3.000 in)
Exhaust Flange KF     40.0  mm  (1.575 in)
Backing Pump Model D40B
Roots Pump Model WSU251
Motor Horsepower 3.0  HP
Accessories

Direct mounted on roll around platform.

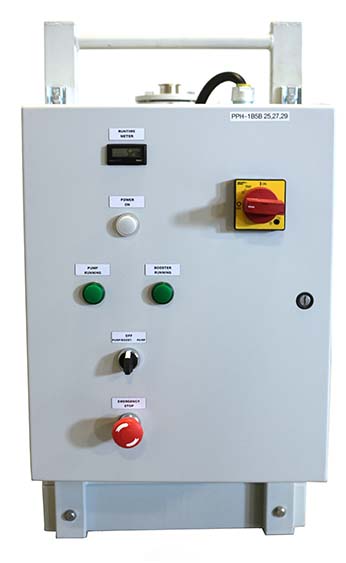

Custom controll box -- see detailed photos
527 hours

Other Information

Displacement: 53 CFM
Oil capacity: 2.70 Qts
Normal rotation speed: 1800 RPM

Power Input:  200-240/380-480, 12A/5.2A

Extended Description  Details at Oerlikon Leybold WAU251 D40B_WSU251 D40B.pdf
Power Requirements 240/480 V     50/60 Hz     3 Phase
Exterior Dimensions
  Width 24.000  in  (61.0 cm)
  Depth 34.000  in  (86.4 cm)
  Height 39.000  in  (99.1 cm)
Weight 568  lb  (258 kg)

OFFERED BY:
(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
1.518.346.8347

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.

Domestic Terms and Conditions

International Terms and Conditions
