Item ID: 186518

**1 Offered at Best Price**

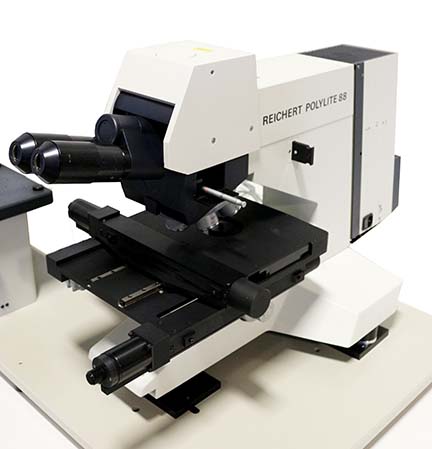

LEICA/REICHERT WAFER INSPECTION MICROSCOPE

Automated Wafer Inspection Microscope
Brightfield/Darkfield
With LEP motorized wafer transport system

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Leica
Model	POLYLITE 88
Microscope Type	Upright
Microscope Configuration	Brightfield & Darkfield
Illumination Type	Reflected Light
Binocular Angle	Variable
Eyepieces
Model	WPK
Magnification	10 X
Field Number	20 mm
Focusing	YES
Wafer Size	200.00 mm (7.87 in)
Magnification Changer	1.0,2.5
Motorized Nosepiece	YES
Multiple Objectives Models	PLAN FLUOR LWD 10X/0.20 EPI IK PLAN FLUOR XLWD 20X/0.40 EPI IK PLAN FLUOR 50X/0.60 EPI PLAN FLUOR 100X/0.70 EPI PLAN APO 150X/0.95 EPI IK
Infinity Corrected Objectives	YES
Illumination Power	*Volts:* 14 *Watts:* 85
Power Supply Included	YES
Wafer Stage/Loader
Manufacturer	Leica
Wafer Size	200.00 mm (7.87 in)
Stage Type	Coaxial X-Y
Stage Area	*Length:* 140 mm (5.512 in) *Width:* 261.0 mm (10.276 in)

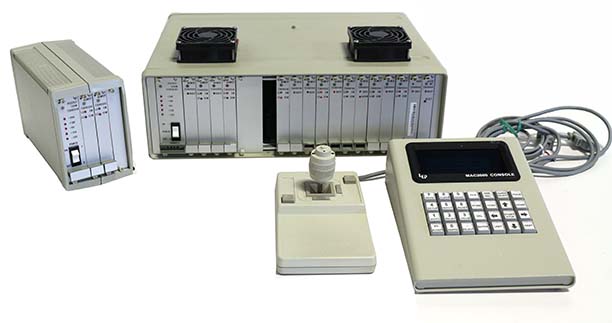

Accessories	Leica brightfield/darkfield microscope M/N: 302313 LEP motorized X-Y stage controller M/N: 73000100 LEP wobbler control M/N: 73000102 LEP MAC2000 interface console M/N: 73000352 LEP Joystick Keyence LX-132T Laser (Notch/ Edge Finder) (included, but not shown in the photo)
Other Information	Adustable aperture and field diaphragm Power requirements (Scope): 115/220 V, 50/60 Hz, 100 W Power requirements (stage controller): 100-240 V, 50/60 Hz, 300 W

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).

Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.

Domestic Terms and Conditions

International Terms and Conditions

FULL DESCRIPTION of Item 186518
