FULL DESCRIPTION of Item 40300

in Electron Beam Evaporators
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 40300

Offered1 Offered at Best Price


TEMESCAL HIGH VOLUME E BEAM EVAPORATOR, SIX POCKET

High Volume E Beam Evaporator
TEMESCAL HIGH VOLUME E BEAM EVAPORATOR, SIX POCKET
  Click to see additional image(s)... other images

Location: Scotia, NY
Unit Price Unstated
Number of Units 1
Manufacturer Temescal
Model VES-2550
Description High Volume Evaporator
Vacuum System Cryo Pumped
Load Lock Included No
E Beam Power Supply
  Power Supply Type Tetrode Tube
  High Voltage Minimum 6 kV
  High Voltage Maximum 10 kV
  Process Control Voltage Minimum 0 Volts DC
  Process Control Voltage Maximum 10 Volts DC
  Number of Guns Controlled 1
  Electron Source Type Six Pocket
Vacuum System CTI On Board 10 High Vac Cryo Pump
Granville Philips 307 Ion gauge controller
Gas Inputs One
Substrate Heaters Yes
Film Thickness Monitor Yes
Residual Gas Analyzer No
Accessories (4)1000 Watt substrate heaters
Leybold IC/5 deposition controller w/dual crystal monitor

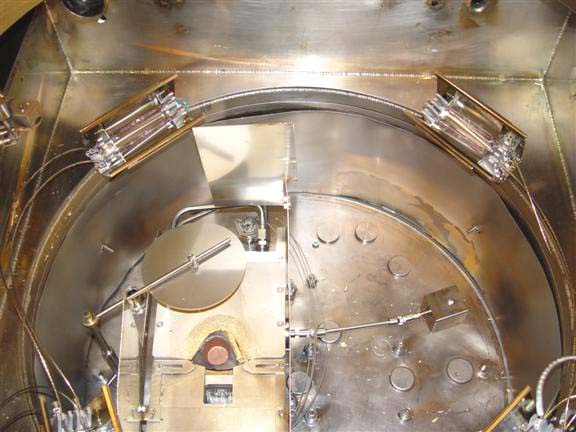

Other Information Deposition chamber:
  • Water cooled
  • 25.5"dia x 12"high
    Source Chamber
  • Pnuematically actuated
  • 27.5"dia
  • Can accomodate upto three sources

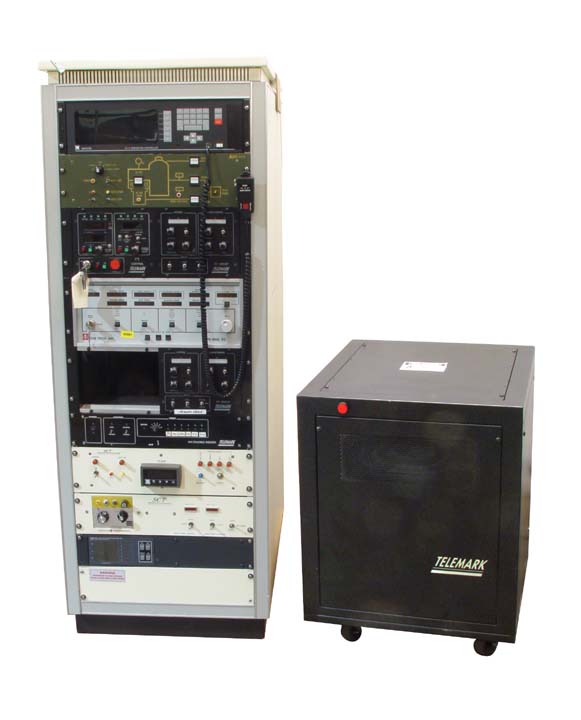

    Telemark model TT10 power supply, p/n:123-1003-1
    Telemark TT10/15 controller
    Telemark 376 crucible indexer

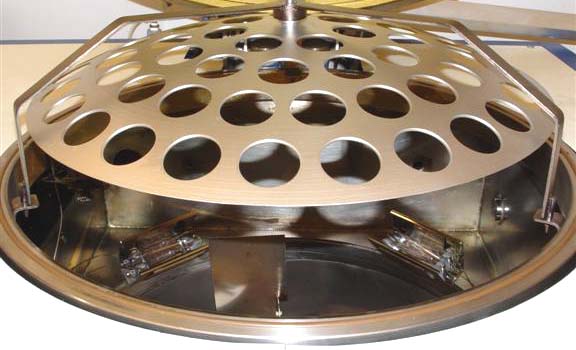

    Model TP-8, 2", substrate fixture for lift off process. Up to 162 2" substrates
    CTI 8510 Cryo compressor

    Source Number Two--Option
  • Temescal SFIH-270-2 Single 40cc pocket; 14kW rating,
  • Telemark TT6 Power Supply
  • TT3/6 Controller
  • Inficon dual crystal monitor
  • Inficon oscillator package
  • Shutter for source
  • Feedthroughs
  • One MKS 10 SCCM O2 MFC with shut off valve
Exterior Dimensions
  Width 64.000  in  (162.6 cm)
  Depth 40.000  in  (101.6 cm)
  Height 72.000  in  (182.9 cm)
Weight 1,900  lb  (862 kg)
