FULL DESCRIPTION of Item 52623

in Resistance Evaporators
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 52623

Offered1 Offered at Best Price

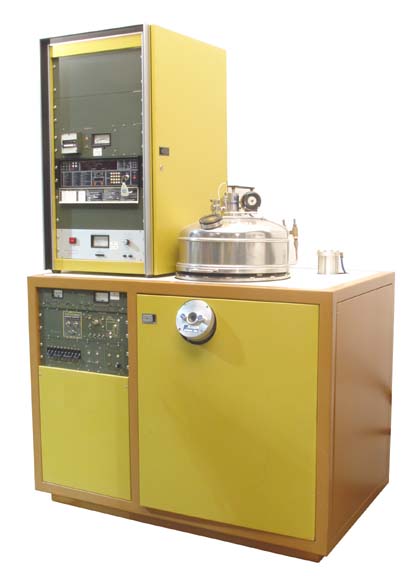

TEMESCAL FILAMENT EVAPORATOR

Filament Evaporator
TEMESCAL FILAMENT EVAPORATOR
  Click to see additional image(s)... other images

Location: Scotia, NY
Unit Price Unstated
Number of Units 1
Manufacturer Airco Temescal
Model BJD-1800
Description Filament Evaporator--Cryo Pumped
Vacuum System Cryo Pumped
Vacuum System CTI Cryotorr 8
CTI compressor, Water cooled
Helium lines and CTI regeneration controller
Base pressure in the clean chamber will be in 10-8 Torr range after extended pump down time.
Film Thickness Monitor Yes

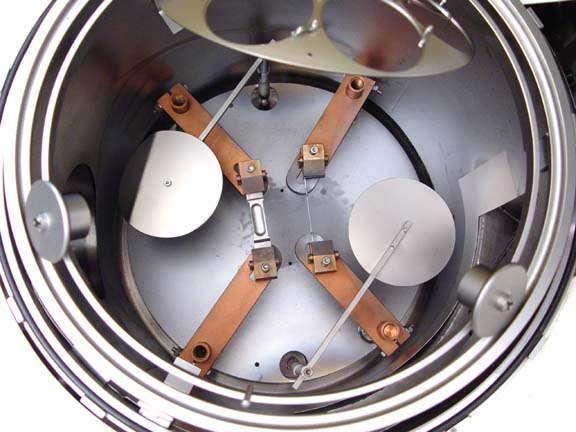

Other Information Source Chamber
18" Dia x 18" High, water cooled, 304 stainless steel

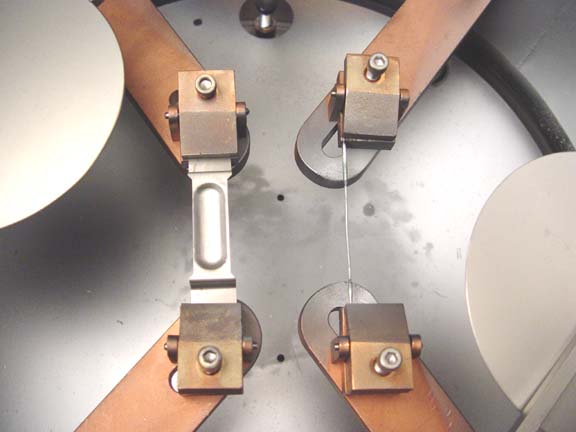

Source Tray
  • 18" Dia flat plate with 10 1" dia. feedthrough ports
    Source Configuration
  • 2 crystal holders with shutters
  • 1 EMI EMS 7.5V 600A DC Power Supply
  • 2 Inficon feedthroughs with air
  • 2 Oscillators

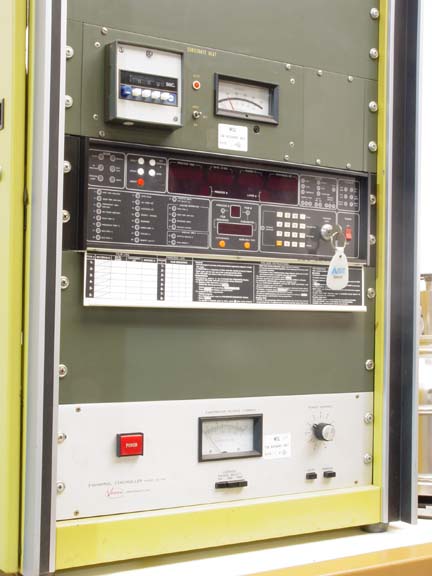

  • 1 Inficon IC 5 Deposition Controller

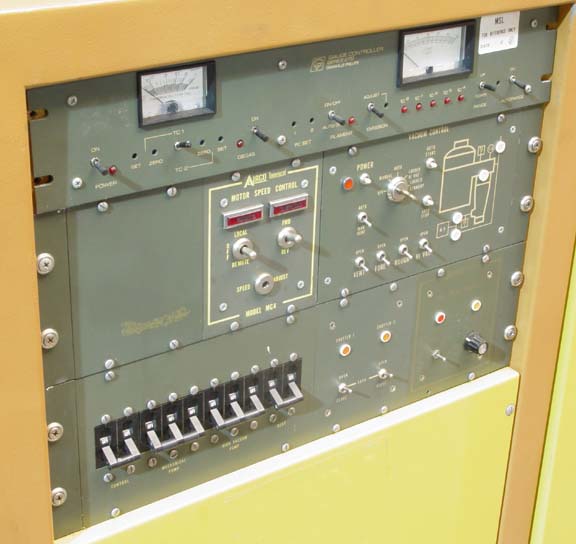

  • Granville Philips 307 Gauge Controller with process control
Power Requirements 208 V     70.0 A     60 Hz     3 Phase
Exterior Dimensions
  Width 56.000  in  (142.2 cm)
  Depth 34.000  in  (86.4 cm)
  Height 89.000  in  (226.1 cm)
Weight 1,322  lb  (600 kg)
