FULL DESCRIPTION of Item 87979

in Electron Beam Evaporators
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, NY

Item ID: 87979

Offered1 Offered at Best Price


TEMESCAL E-BEAM EVAPORATOR, 6 POCKET

E Beam Evaporator

Temescal BJD-1800
TEMESCAL E-BEAM EVAPORATOR, 6 POCKET
  Click to see additional image(s)... other images

Location: (Scotia, NY )
Unit Price Unstated
Number of Units 1
Manufacturer Temescal
Model BJD-1800
Description E Beam Evaporator, 7" Crucible
Vacuum System Cryo Pumped
Load Lock Included No
E Beam Power Supply
  Power Supply Type Triode Tube
  High Voltage Minimum 8 kV
  Number of Guns Controlled 1
  Electron Source Type Six Pocket
  Crucible Size 7.00  cc  (0.43 cu in)
Vacuum System

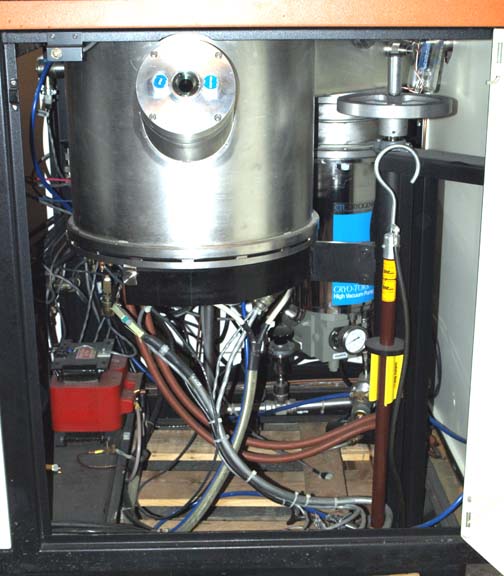

CTI Cryotorr 8
Suitable Cryo Compressor Included.
30 CFM Mechanical Vacuum Pump. (Backing Pump)
Substrate Heaters Yes
Film Thickness Monitor Yes
Residual Gas Analyzer No
Accessories Includes
Model TP-8- Lift-Off Substrate Fixture.
Single dome configured for 4" wafers

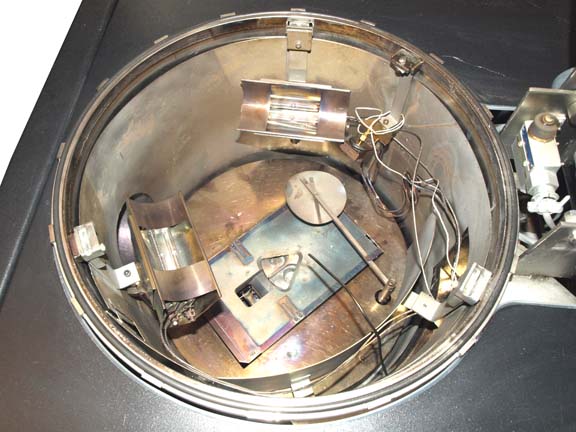

Other Information 18" in diameter x 9" high stainless steel substrate dome chamber
4" veiw port

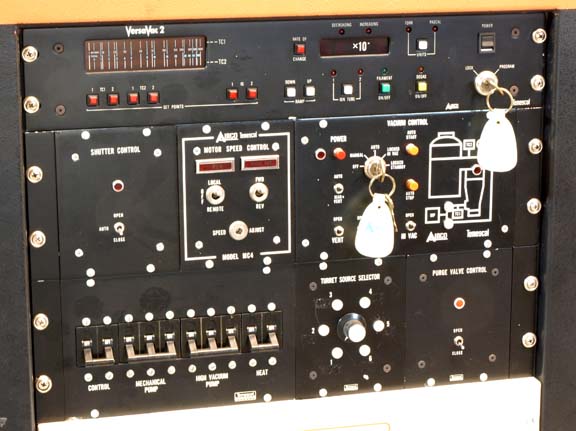

Airco Temescal VersaVac 2
Thermocouple/Ionization gauge

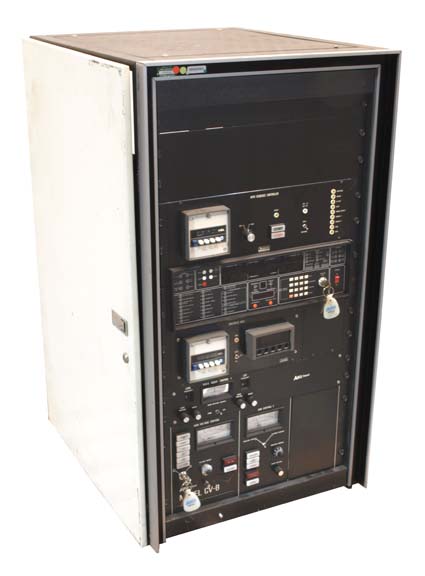

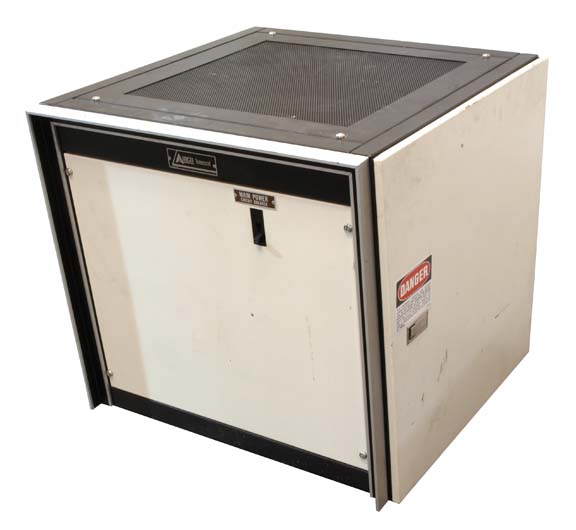

Airco Temescal CV-8A Power Supply
Airco Temescal XYS-8 Sweep Control
FDC 8000 Film Thickness Monitor

NB: Temescal Auto Sequence Controller shown is not included
Power Requirements 208 V     70.0 A     60 Hz     3 Phase
Exterior Dimensions
  Width 60.000  in  (152.4 cm)
  Depth 44.000  in  (111.8 cm)
  Height 56.000  in  (142.2 cm)
