FULL DESCRIPTION of Item 22276

in Horizontal Sputterers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 22276

Offered 1 Offered at Best Price


CHA INDUSTRIES SPUTTERING SYSTEM

Sputtering System


CHA INDUSTRIES SPUTTERING SYSTEM
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer CHA Industries
Model SSC 1000
Description Sputtering System
Other Information

System Specifications

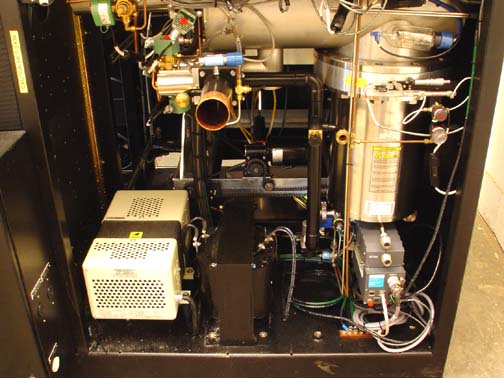

  • Combination high-vac valve,trap and pump
  • Micrometer adjustable,variable orifice throttle valve

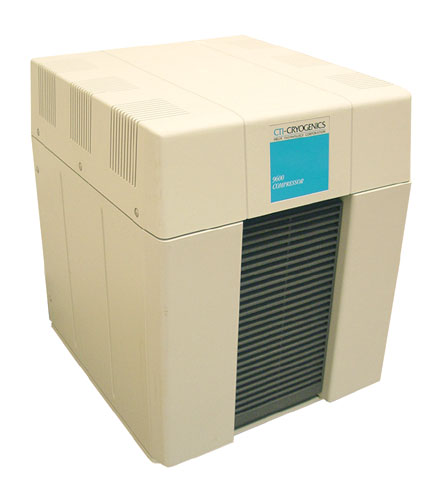

  • CTI ON Board 10 cryopump with 9600 compressor(water cooled)
  • CTI On Board auto regeneration control

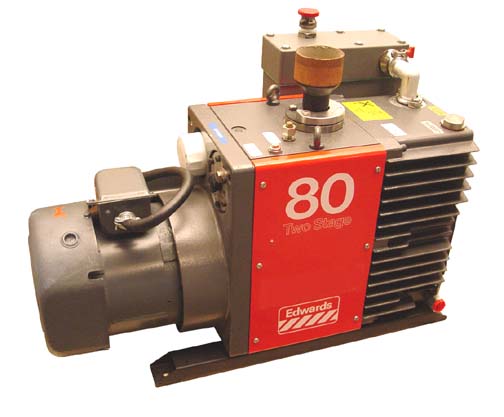

  • Edwards E2M80 mechanical pump
  • Mass-Vac Posi-Trap model 345040 molecular sieve trap
  • Soft vent
  • Soft roughing
  • Vacuum manifolding
  • Granville-Phillips model 307 ion gauge control

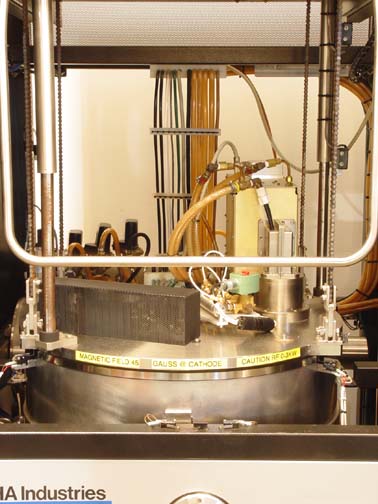

  • 28.5" diameter by 16" tall deposition chamber
  • 29" Diameter process/source chamber mounting plates
  • Source plate has two blank off plates for unused 8" source positions
  • Upper mounting plate for cathode,heater array and lower plate for fixturing

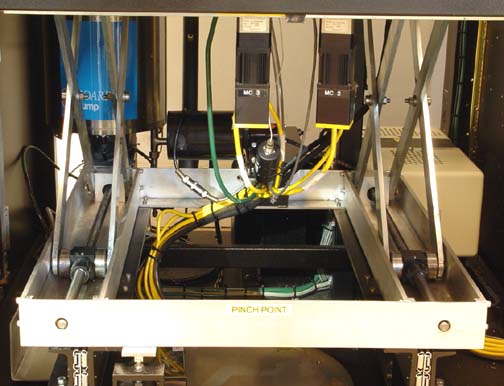

  • Upper and lower plate hoists
  • Motorized hoists with adjustable limit switches
  • Flag shutter

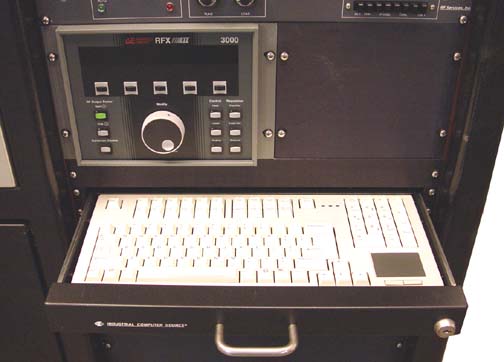

  • Advanced Energy 3KW RF sputter power supply
  • Heater array/Heater power supply for high pressure operation
  • (1) Magnetron Cathode: 8 inch
  • Inficon IC 5 rate and thickness deposition controller,configured for time/power control with 3.5" floppy disc drive intergrated for control of the shutter and sputter power supply.
    Mass flow gas control (02/Ar)
  • MKS model 247 power supply/readout
  • Two model 2179 mass flow controlers with positive shutoff valves
  • MKS model 250 pressure controler
  • MKS model 627 pressure transducer
  • Industrial grade Siemens PC, 64MB RAM,10.4" TFT color monitor
  • Windows NT 4.0 WONDERWARE software
  • Controls multi layer,sequential process intergrating the operation,all the controls and power supplies
  • Manual vent switch
  • Roughing over-time and chamber over pressure interlocks
Power Requirements 120/208 V     100.0 A     60 Hz     3 Phase
Year of Manufacture 2000
Condition Excellent
Exterior Dimensions
  Width 69.000  in  (175.3 cm)
  Depth 54.000  in  (137.2 cm)
  Height 97.000  in  (246.4 cm)
