Item ID: 3464

**2 Offered at $ 2,600.00 (each)**

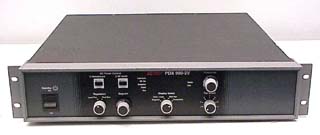

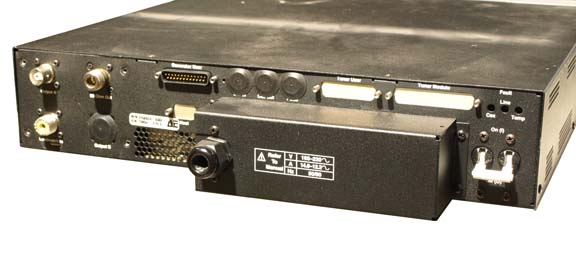

ADVANCED ENERGY RF PLASMA GENERATOR POWER SUPPLY 900W, 350 KHZ

RF Plasma Generator

... other image

Location: Scotia, New York

Unit Price	$ 2,600.00 (each)
Number of Units	2
Manufacturer	Advanced Energy
Model	PDX9002V
Description	RF Plasma Generator
Rated Power Output	900 Watts
Frequency	350.00
Scale	kHz
Output Impedance	50 Ohms
Input Connector	Type N
Output Connector	Type N
Panel Meters	Digital
External Cooling	Forced Air Cooled
Other Information	Maximum output voltage: 850V Maximum output voltage for 50 Ohm load: 300V RF output: 8 W minimum, 900 W max, accuracy 1% of setpoint Frequency adjustment: 50 kHz tuning range Output current: 6.0 amp max Forward or load power regulation modes Load matching transformer 25-125 Ohm 7 steps
Extended Description	Details at pdx900-2v specifications.pdf
Power Requirements	220/240 V 20.0 A 50/60 Hz 1 Phase
Exterior Dimensions
Width	19.000 in (48.3 cm)
Depth	20.000 in (50.8 cm)
Height	3.500 in (8.9 cm)
Weight	30 lb (14 kg)
