FULL DESCRIPTION of Item 217403

in DC Power Supplies
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 217403

Offered 23 Offered at $ 1,250.00 (each)

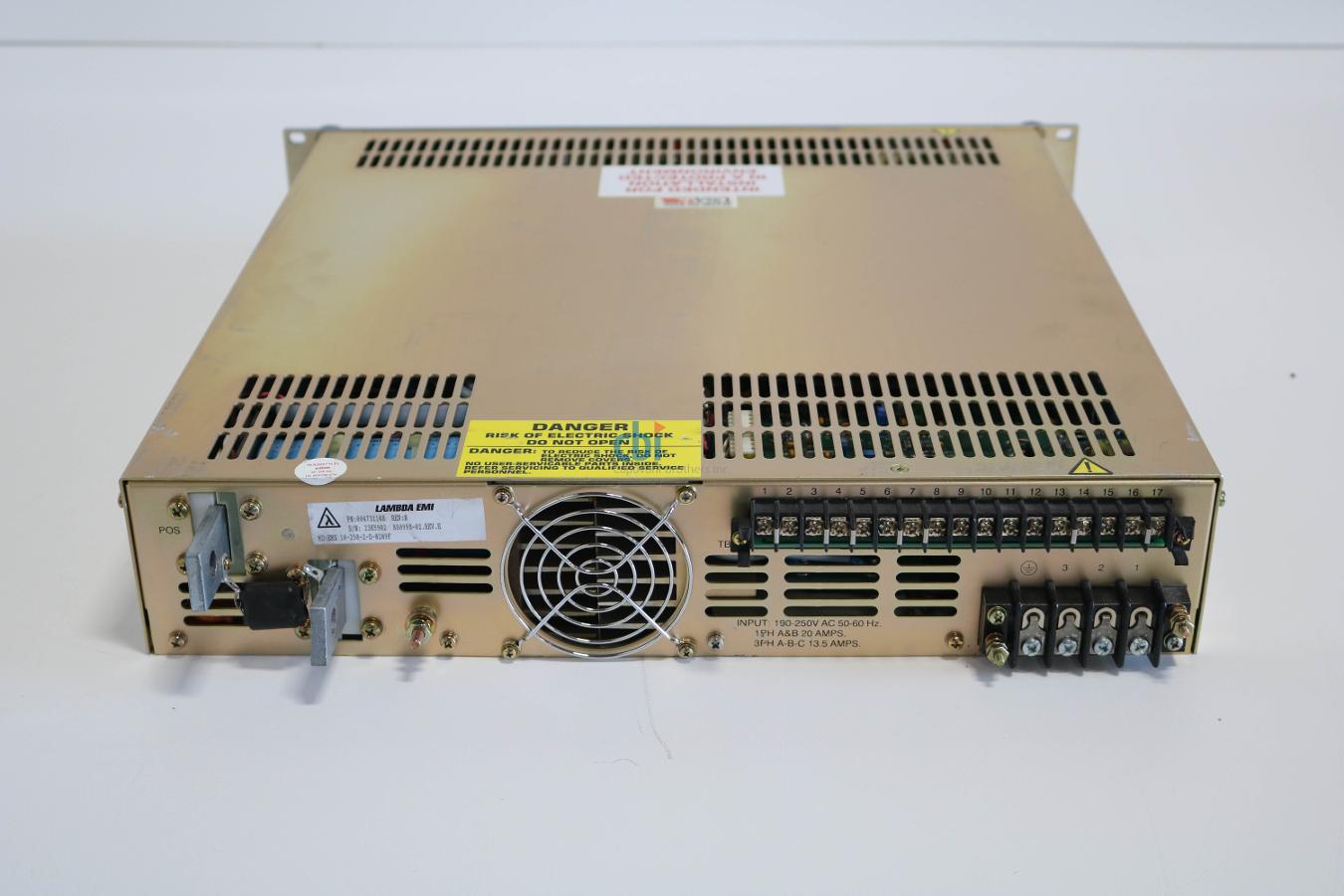

ELECTRONIC MEASUREMENTS DC POWER SUPPLY, 10V, 250 A

DC Power Supply

Manufactured for Varian

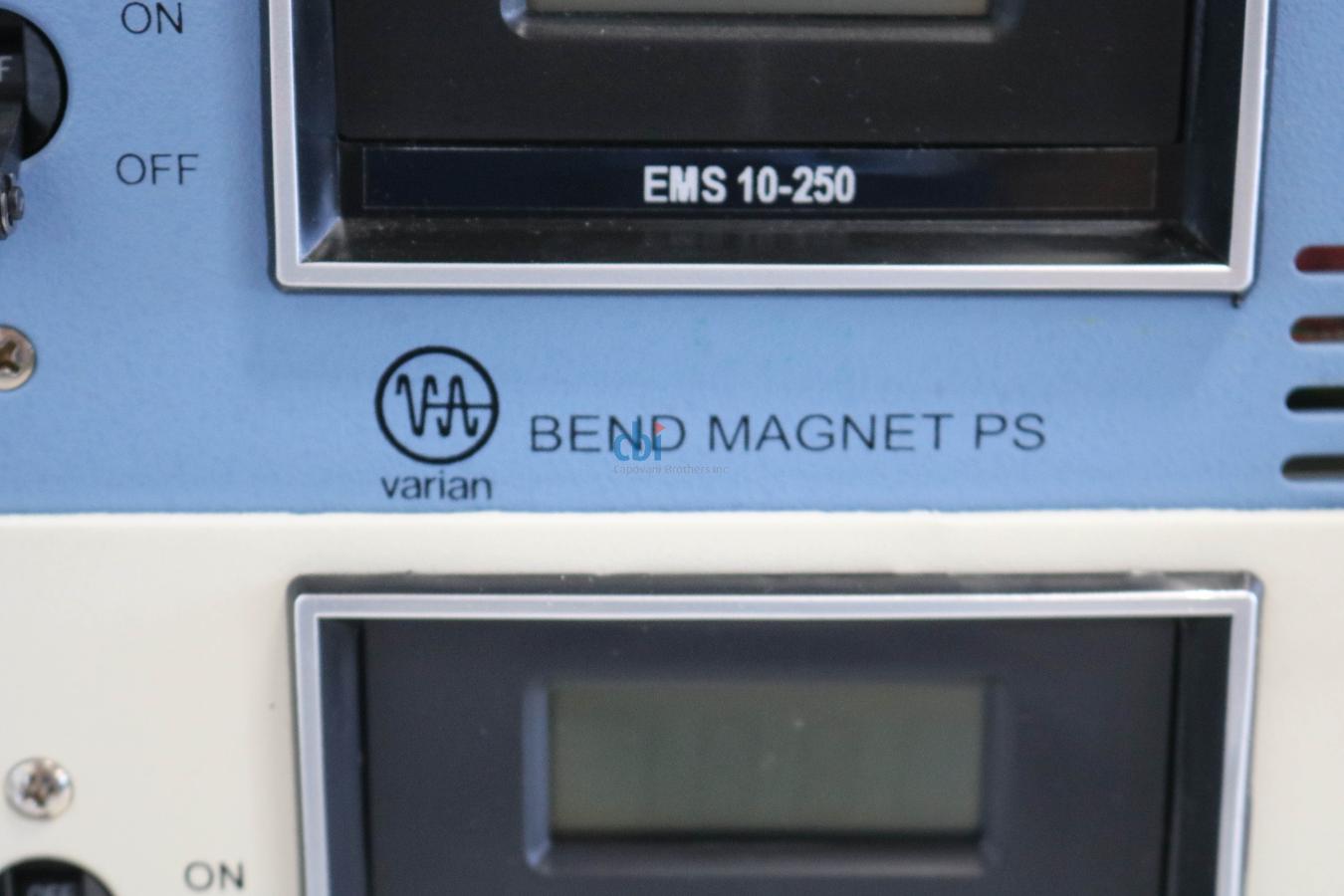

NB: These power supplies have Varian branding on them and there are three color variants available/shown. If color matters please inquire about availability.

ELECTRONIC MEASUREMENTS DC POWER SUPPLY, 10V, 250 A
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 1,250.00 (each)
Number of Units 23
Manufacturer Electronic Measuremt
Model EMS 10-250-2-D-0209F
Maximum Output Voltage 10.00 Volts
Maximum Output Current 250.00 Amps
Maximum Output Power 2.50 kW
Regulation Modes Constant Current     Constant Voltage
Ripple 75 mV
Panel Meters Digital
Control Type Programmable
External Cooling Forced Air Cooled
Other Information

Front panel control knobs for voltage and current are not installed, can be added upon request.

Operation on the single phase power is not recommended, if you do need to use it, contact our tech support, please.



Extended Description  Details at 83473000_EMS_STD Rev J.pdf

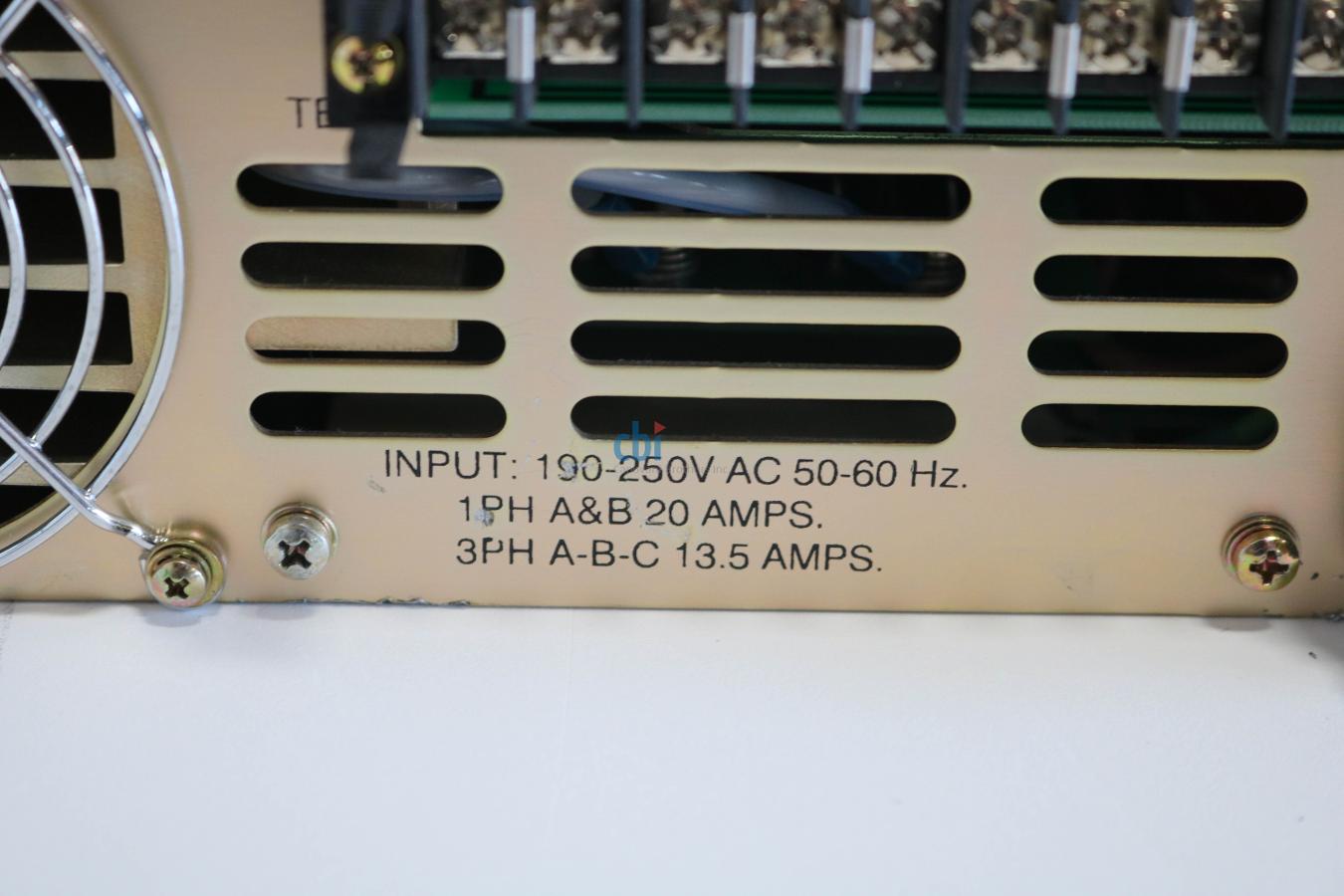

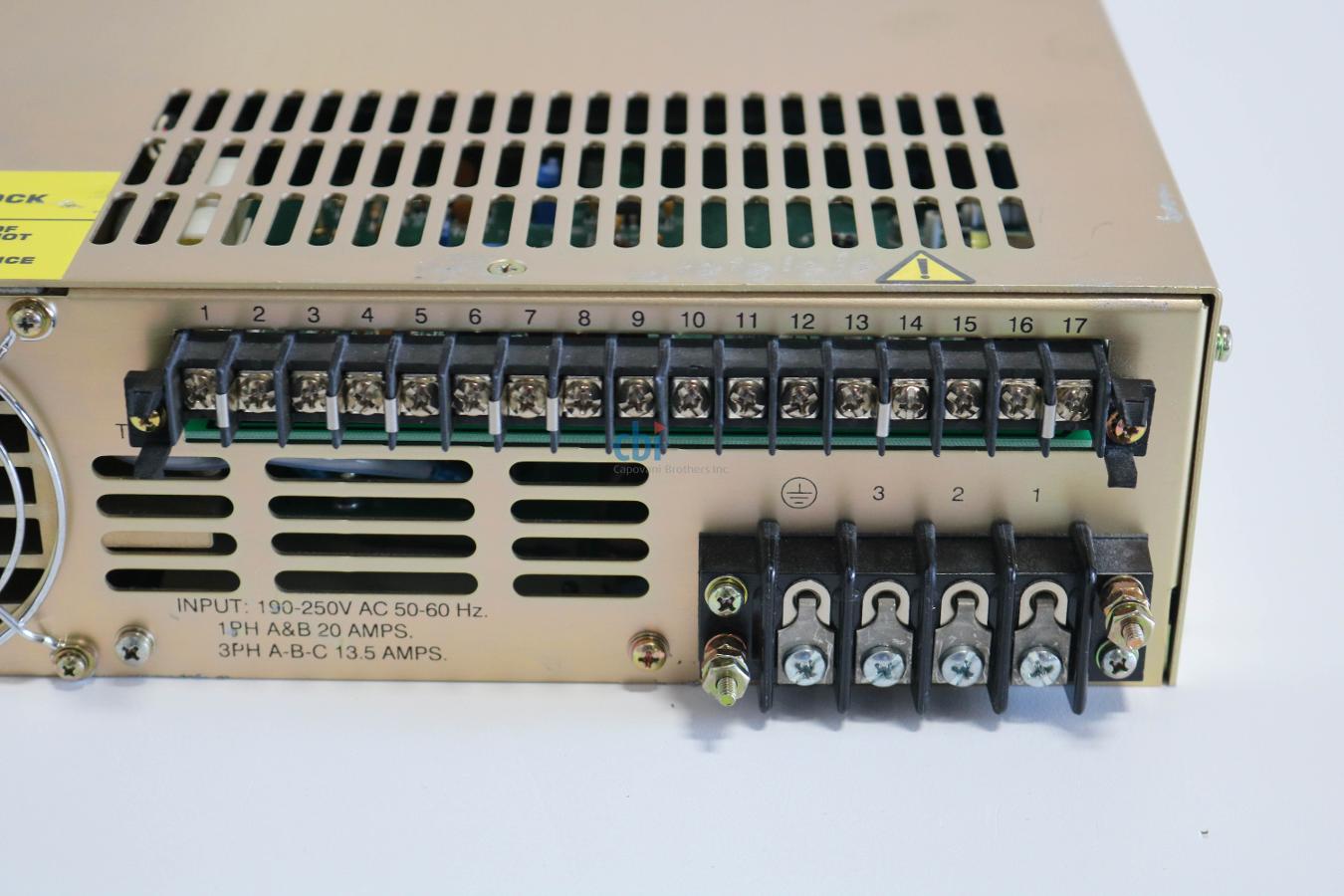

Power Requirements 190-250 V     16.5 A     50/60 Hz     3 Phase
Exterior Dimensions
  Width 21.000  in  (53.3 cm)
  Depth 19.000  in  (48.3 cm)
  Height 3.250  in  (8.3 cm)
Weight 35  lb  (16 kg)
