FULL DESCRIPTION of Item 45437

in Analytical Wafer Probers 		Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 45437

Offered 1 Offered at Best Price


MICROMANIPULATOR SEMI-AUTOMATIC PROBER

Semi Automatic Prober

 MICROMANIPULATOR SEMI-AUTOMATIC PROBER
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Micromanipulator
Model 6640
Wafer Size Range
  Set Size 150 mm
Microscope Type Stereo Zoom

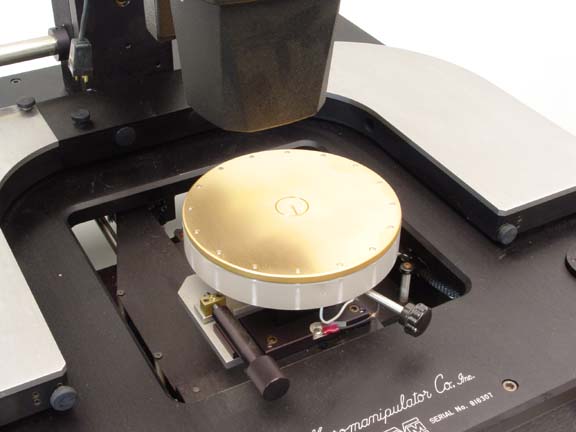

Vacuum Chuck
  Diameter 6.0000  in  (152.40 mm)
  Plating Material Gold Plated Brass
Vacuum Required 20.00  in Hg  (507.99 mm Hg)
Interface RS 232
Other Information

B&L Stereo Zoom 7 Microscope 10 to 70X
Vacuum Chuck

  • Flatness +-.0005"
  • Electrical isolation exceeds 500 mghohms at 500 VDC
  • Electrically connected via coax cable to BNC at rear of machine

    Fine Lift Control
  • Resolution: 0.3 micron per degree of revolution
  • Range: 0.5"
Power Requirements 120/240 V     15.0 A     50/60 Hz     1 Phase
Exterior Dimensions
  Width 24.000  in  (61.0 cm)
  Depth 24.000  in  (61.0 cm)
  Height 22.000  in  (55.9 cm)
Weight 151  lb  (68 kg)

OFFERED BY:
(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
1.518.346.8347

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.

Domestic Terms and Conditions

International Terms and Conditions




Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
