in Xray Fluorescence Spectrometers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 103332

Offered 1 Offered at Best Price


X-Ray Fluoresence Spectrometer
Model: TXRF 300S

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Rigaku
Model TXRF 300S
Wafer Size Range
  Minimum 150 mm
  Maximum 300 mm
Cassette to Cassette YES
Xray Source Specifications

X Ray Tube
  Water cooled diffraction x-ray tube
  Target:  Au
  Electron gun:  W filament
  Focusing size: .4 x 12 mm on the target
  Maximum load:  1.2kW


Oxford Detector:
Model:  7043
Det. area 80 mm2
Window Be
Resolution at 5.9 KeV is 175 eV
Bias -500V

Other Information

System Includes:
Ebara Dry Pump: Model A10S

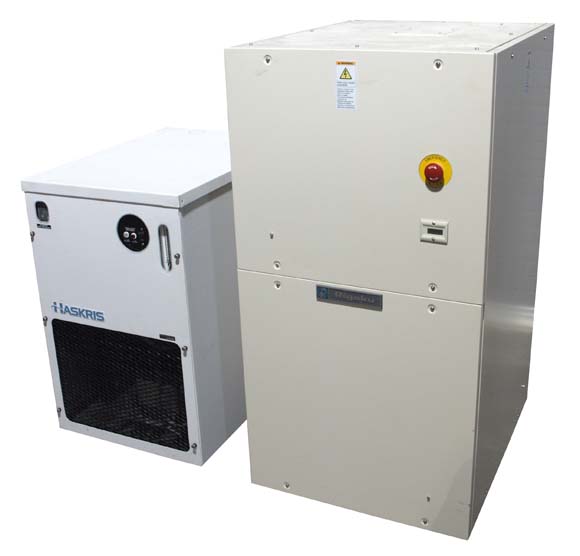

Haskris Chiller: Model RW100F1
Oxford Instruments: Model 7043
UBS Industries: Model LLC-203 Liquid Level controller

Extended Description  Details at specifications.pdf
Year of Manufacture 2001
Power Requirements 208 V     50/60 Hz     3¬†Phase
Exterior Dimensions
  Width 67.000  in  (170.2 cm)
  Depth 48.000  in  (121.9 cm)
  Height 62.000  in  (157.5 cm)
Weight 2,092  lb  (949 kg)
