Unit Price |
Unstated |
Number of Units |
1 |
Manufacturer | Cress Mfg. Co. |
Model | BT29ATCPM/982 |

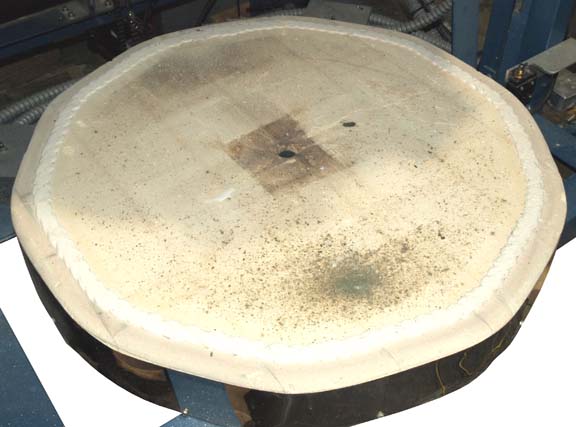

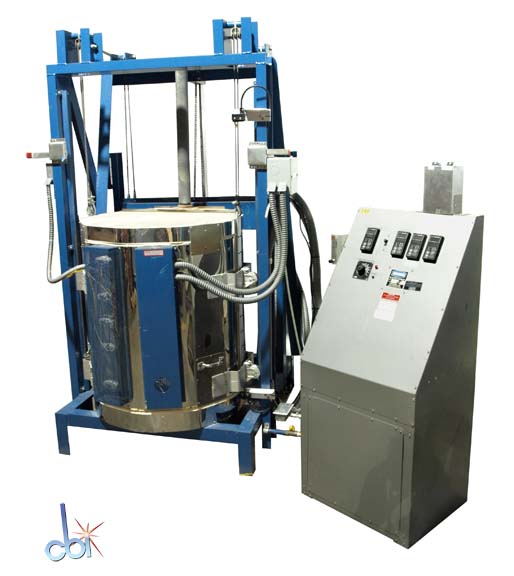

Description | Bottom Opening Furnace |
Maximum Temperature | 1,232 ºC (2,250 ºF, 1,505 ºK) |
Heat/Cool Controls |  |
Control Type | Programmable |
Overtemperature Protection | YES |
Number of Control Zones | 4 |

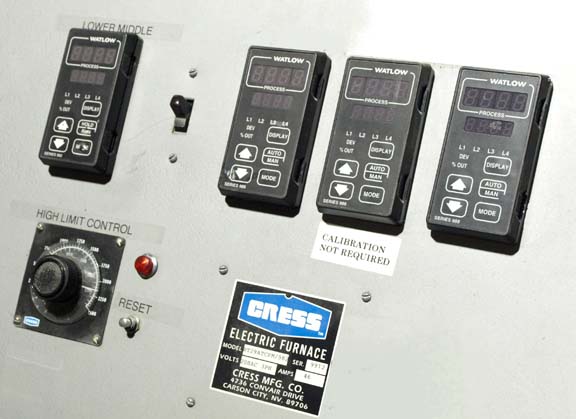

Other Information | Chamber Size: 29" Height x 23 3/8" Decagon Max. Continous Temperature: 2000° F (1) Watlow Series 982 Controller (3) Watlow Series 988 Controller Exhaust Stack: 2" Purge: 1/2" NPT |
Power Requirements | 208 V
46.0 A
60 Hz
3 Phase
|
Exterior Dimensions |  |
Width | 55.000 in (139.7 cm) |
Depth | 57.000 in (144.8 cm) |
Height | 80.000 in (203.2 cm) |
Weight | 1,122 lb (509 kg) |
