in Residual Gas Analyzers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 105976

Offered 1 Offered at Best Price

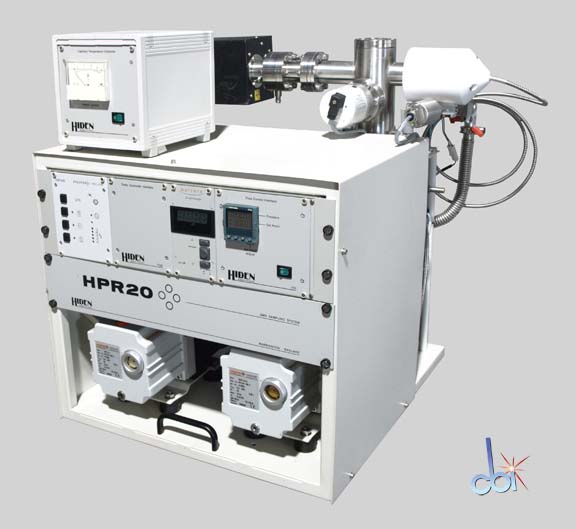

Atmospheric/Chamber Gas Analysis System

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Hiden Analytical
Model HPR-20 QIC

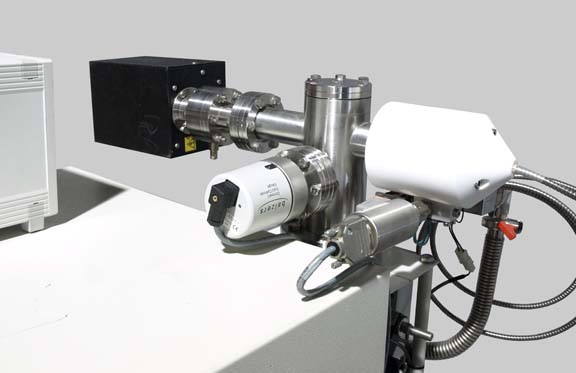

Description Atmospheric/Chamber Gas Analysis System
Mass Range 200 AMU
  • Pfeiffer Turbo Pump

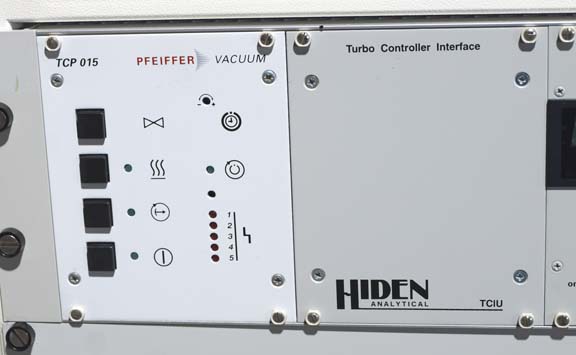

  • Pfeiffer Turbo pump Controller: Model TCP 015

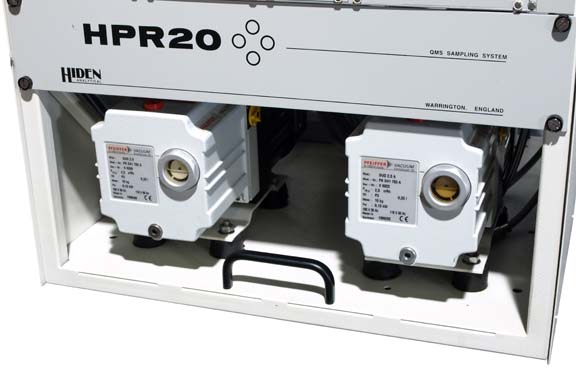

  • (2) Pfeiffer Mechanical Vacuum Pumps: Model DUO 2,5A
  • Balzers IRK 250 Cold Cathode Gauge
  • MS Windows computer is not included

Other Information

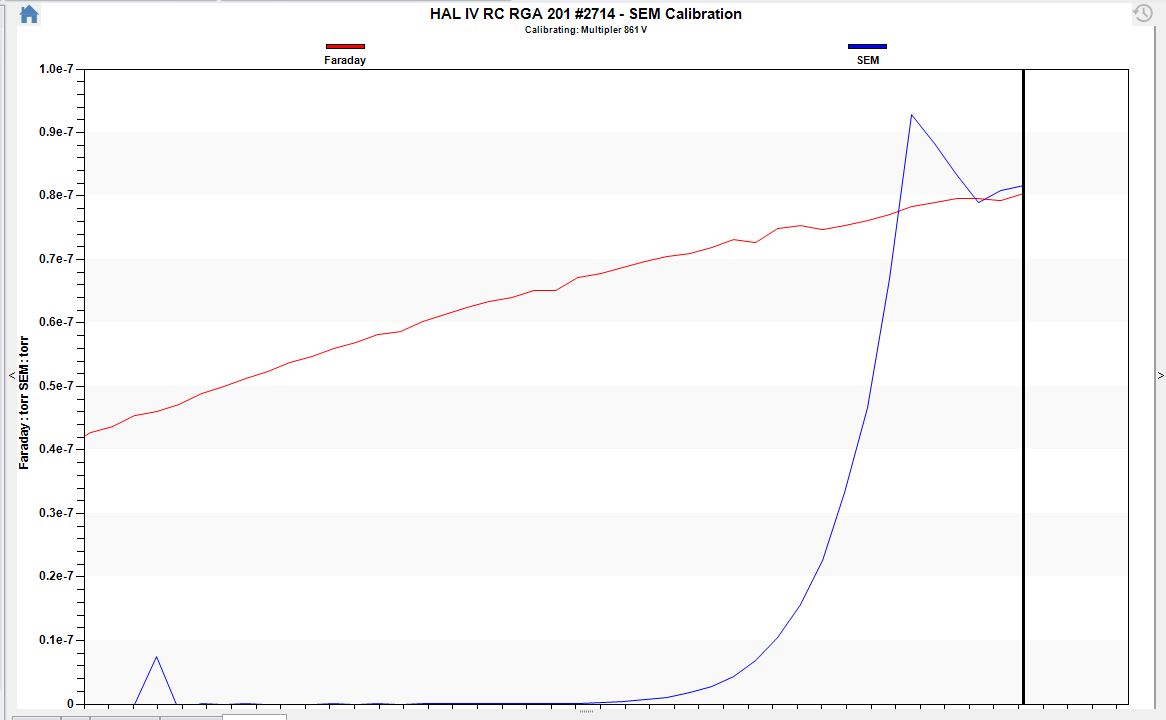

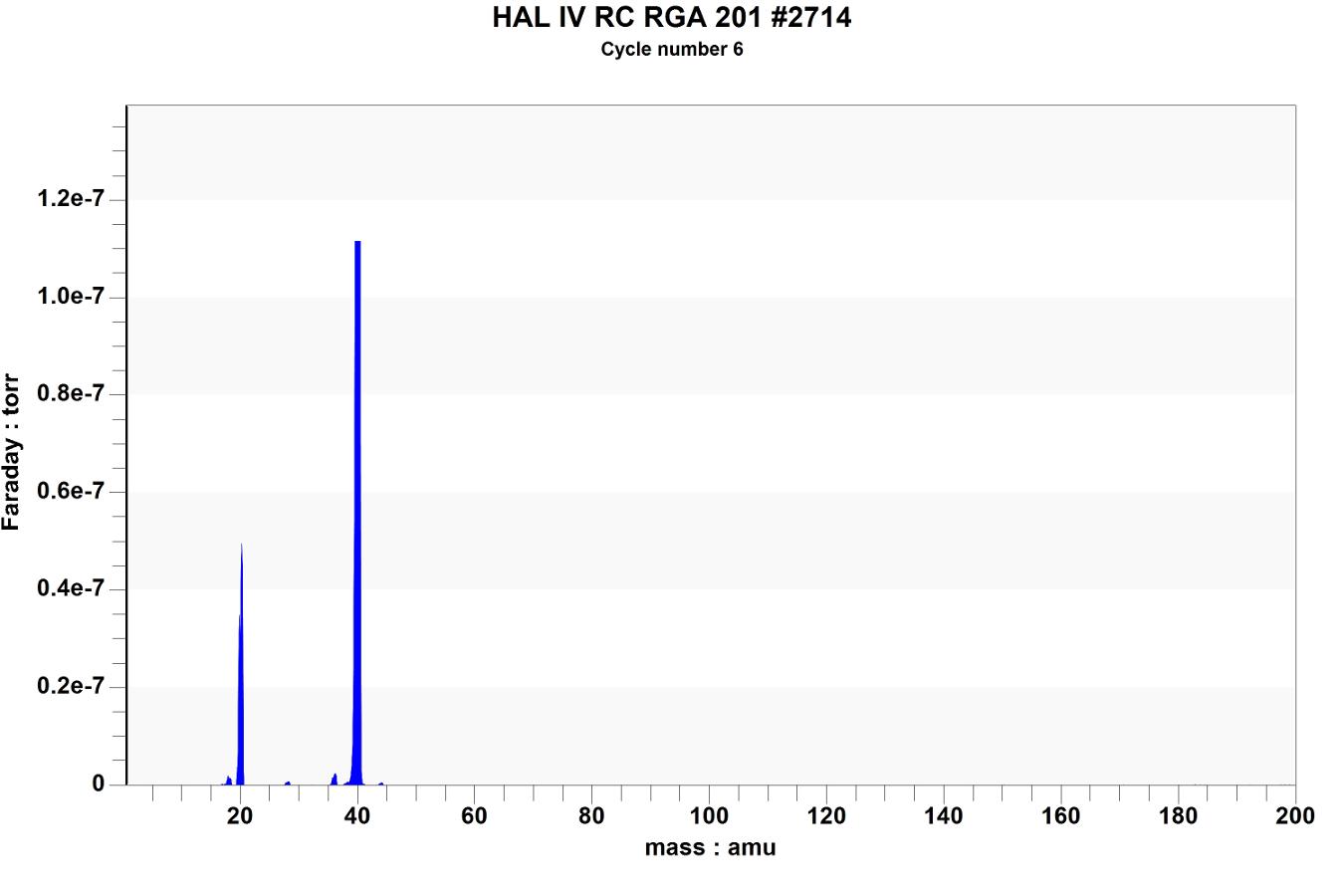

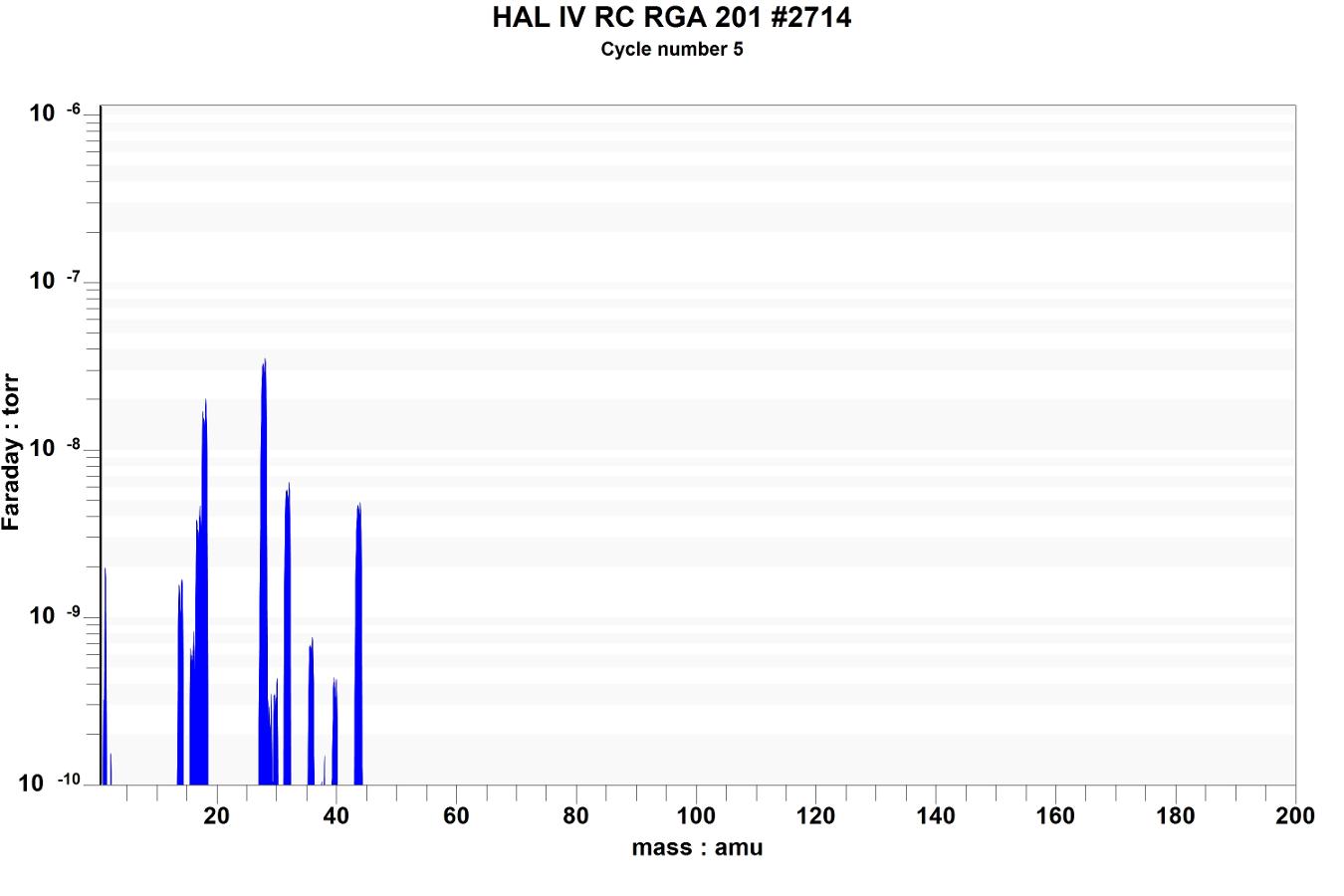

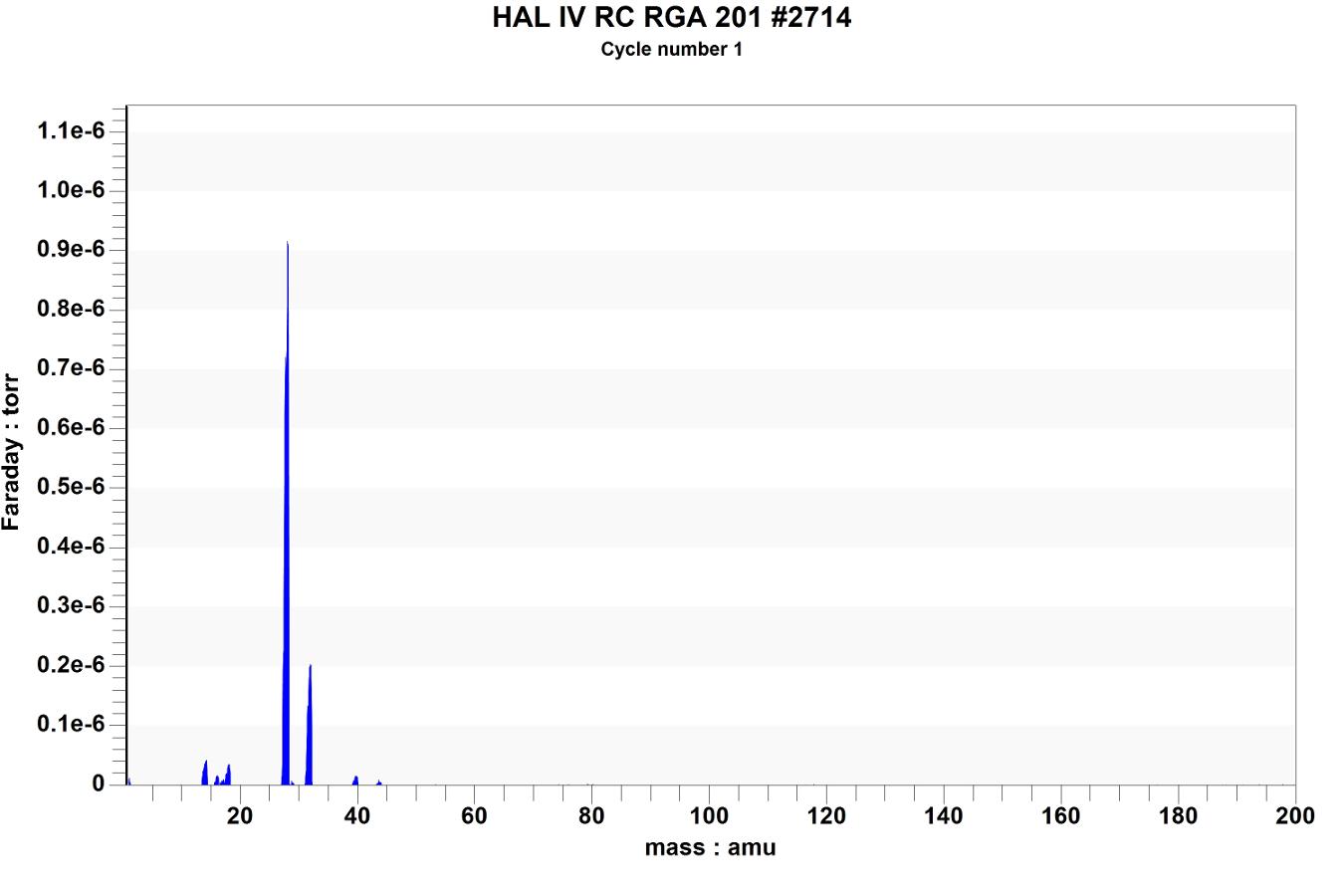

RGA is tested and fully operational, see sample scans (photos 8-11)

Hardware is compatible with the current version of Hiden MASSOFT software as of 12/2023.

Software is not included and must be purchased from Hiden Analytical

Mass range: 200 AMU
QIC direct inlet for Continuous sampling of 1-20 cm3 / min from 10 mbar to 2 bar.

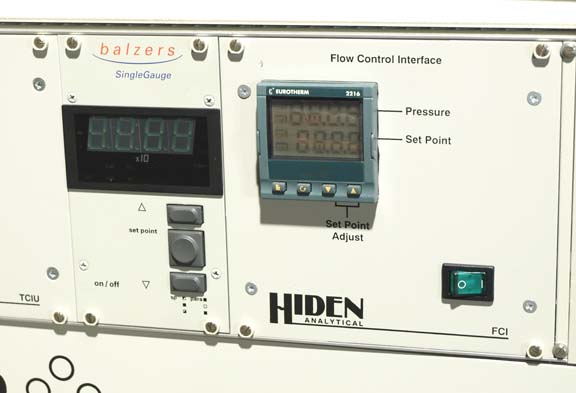

Automated Flow Control Interface for constant ion source pressure.
Soft Ionization for the analysis of complex organics.
Stability (less than ±0.5% height variation over 24 h).


Year of Manufacture 1998
CE Marked YES
Exterior Dimensions
  Width 19.500  in  (49.5 cm)
  Depth 25.000  in  (63.5 cm)
  Height 24.000  in  (61.0 cm)
Weight 174  lb  (79 kg)

(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.

Domestic Terms and Conditions

International Terms and Conditions
