Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 10766

Offered 1 Offered at $ 8,250.00

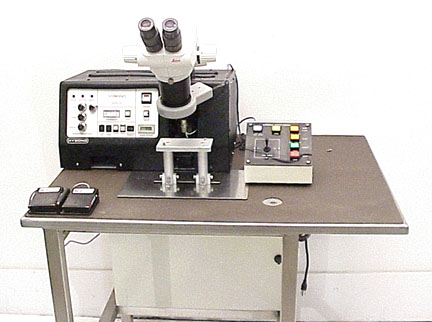

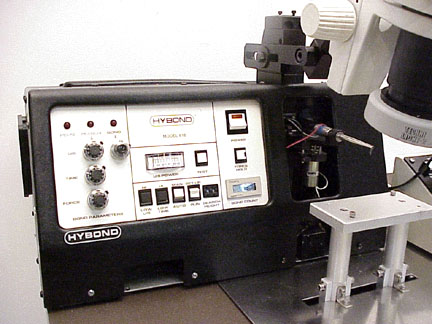

HYBOND 616-001

Ultrasonic Peg Bonder

HYBOND 616-001
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 8,250.00
Number of Units 1
Manufacturer Hybond
Model 616-001
Description Ultrasonic Peg Bonder
Other Information

Ultrasonic system: PLL self-tuning, 62.5 KHz (±2.5KHz) nominal
Ultrasonic power range: 0-2 watt on Low setting (default), 0-4 watts on High setting
Bond time range: Low: 10 - 400 mSec High: 200 - 600 mSec
Bond force range: 25 - 200 grams
Bondable wire diameters: 0.5 to 2.0 mils (12,5 to 50 µm) insulated ; 0.5 to 2.0 mils (12,5 to 50 µm) bare
Bondable ribbon dimensions: Up to 2 x 20 mils (50 x 500 µm)
Bondable wire/ribbon materials: Gold, gold plated copper, and aluminum
Bond head movement: Semi-automatic / automatic
Bond actuation: Sensor at variable height, actuated by pushbutton or footswitch
Z axis travel: 1.5 in (3,81 cm)
Vertical bonding window: 1.4 in (3,55 cm)
Leica GZ 6 Stereozoom microscope:
10X/22 Eyepeices
Ring light
X-Y Motorized stage

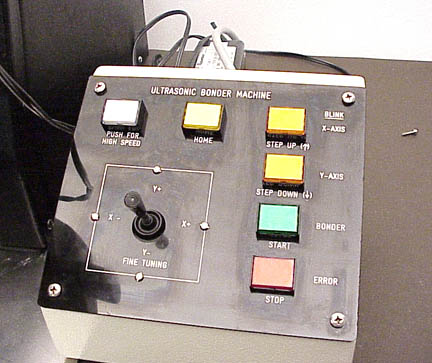

Controller w/joy stick

Condition Excellent
Year of Manufacture 1997
Exterior Dimensions
  Width 36.000  in  (91.4 cm)
  Depth 10.236  in  (26.0 cm)
  Height 48.000  in  (121.9 cm)

(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.
