FULL DESCRIPTION of Item 108681

in Linear Stages
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 108681

Offered 1 Offered at $ 1,200.00

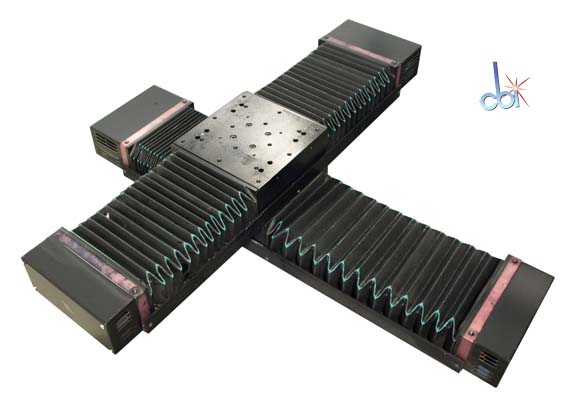

EALING ELECTRO-OPTIC X-Y STAGE WITH CONTROLLER

X-Y Stage with Controller

Ealing Electro-Optic 37-0346

EALING ELECTRO-OPTIC X-Y STAGE WITH CONTROLLER
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 1,200.00
Number of Units 1
Manufacturer Ealing Electro-Optic
Model 37-0346
Configuration X-Y
Total Travel, XYZ X: 12.00  in  (305 mm)     Y: 12.00  in  (305 mm)
Mechanical Drive System Lead screw
Screw Pitch 5 turns per inch
Indexer Included YES
Table Length 6.25  in  (158.75 mm)
Table Width 6.25  in  (158.75 mm)
Tabletop Height 5.50  in  (139.70 mm)
Motor  Drive: Stepper Motor
Controller Included Yes
Cables Included Yes
Accessories

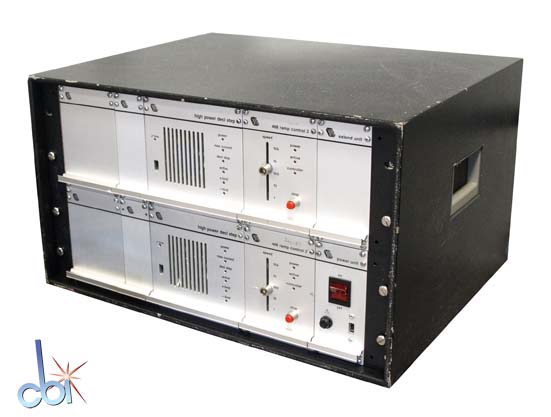

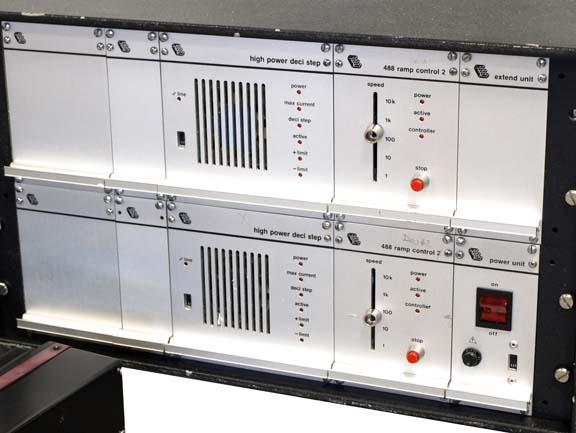

Controller:
(2) High Power Deci Step: Model 37-0726
(2) 488 Ramp Control: Model 37-0718
(1) Power Unit

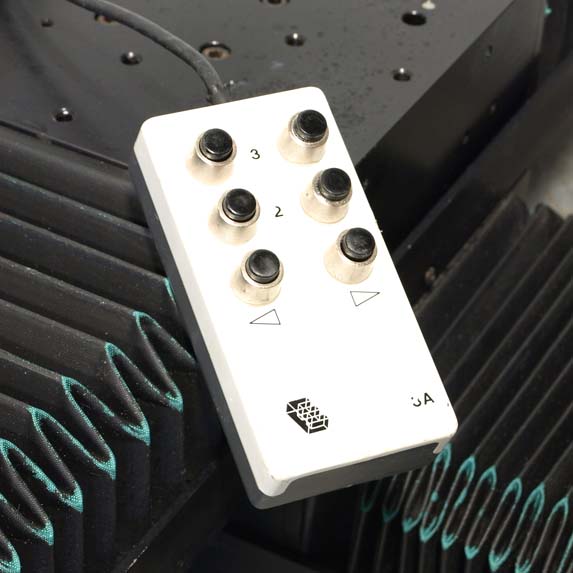

Hand Held Pendant

Exterior Dimensions
  Width 29.500  in  (74.9 cm)
  Depth 29.500  in  (74.9 cm)
  Height 5.500  in  (14.0 cm)
Weight 144  lb  (65 kg)
