Other Information |
- Measuring Range: 100Å to 1310kÅ
- Scan Speed Range: Low, Med, High
- Vertical Resolution: 1Å in the 65kÅ range, 10Å in the 655kÅ range, 20Å in the 1310kÅ range
- Data Points per micron: 0.04 -- 40
- Scan Length 50 microns to 50 mm
- Leveling: 2 point programmable or cursor leveling
- Stylus: 12.5 micron, diamond (other sizes are optional)
- Maximum sample thickness: 1.75 inches
- Sample stage diameter: 7 inches
- Sample stage translation, manual: X axis: 6" and Y axis: 3"
- Maximum sample weight: 1 lb
- Zoom range: 35X -- 200X

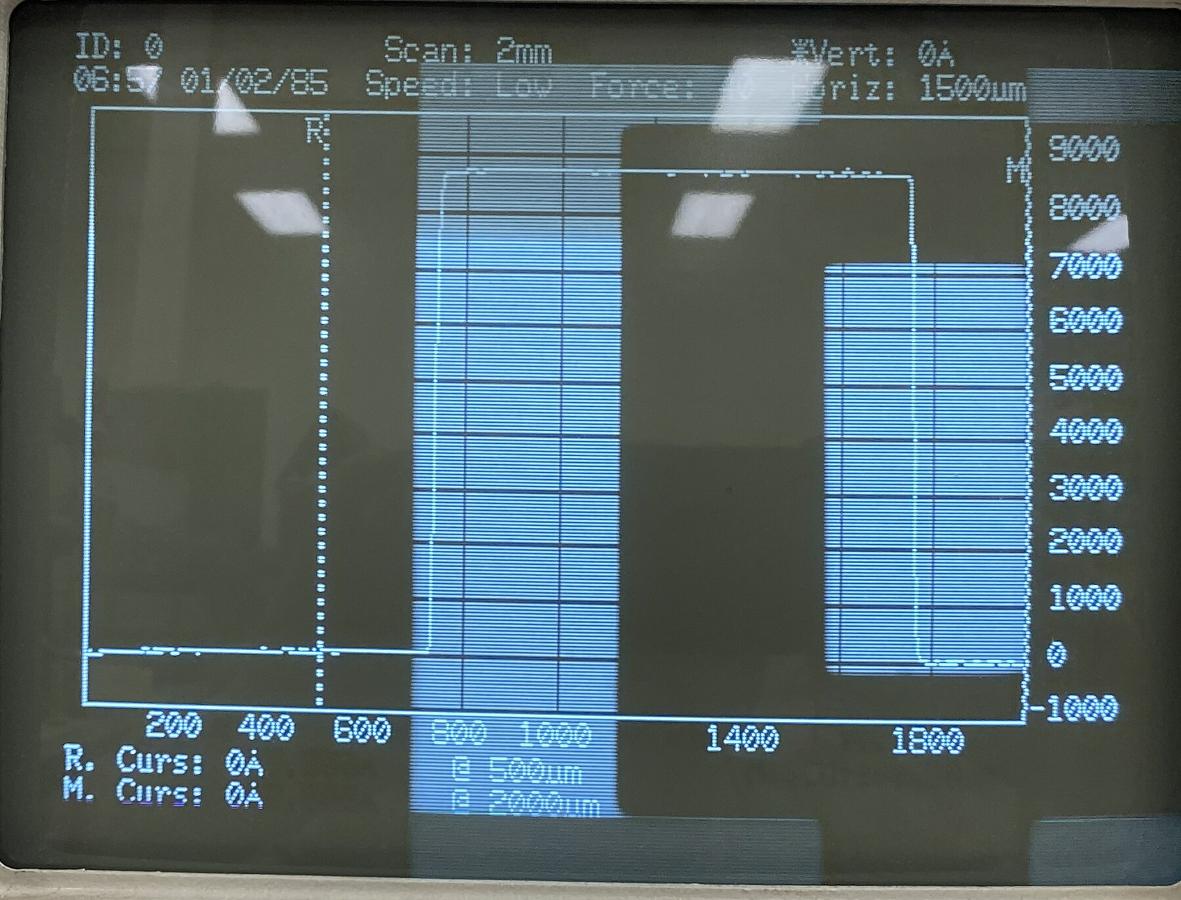

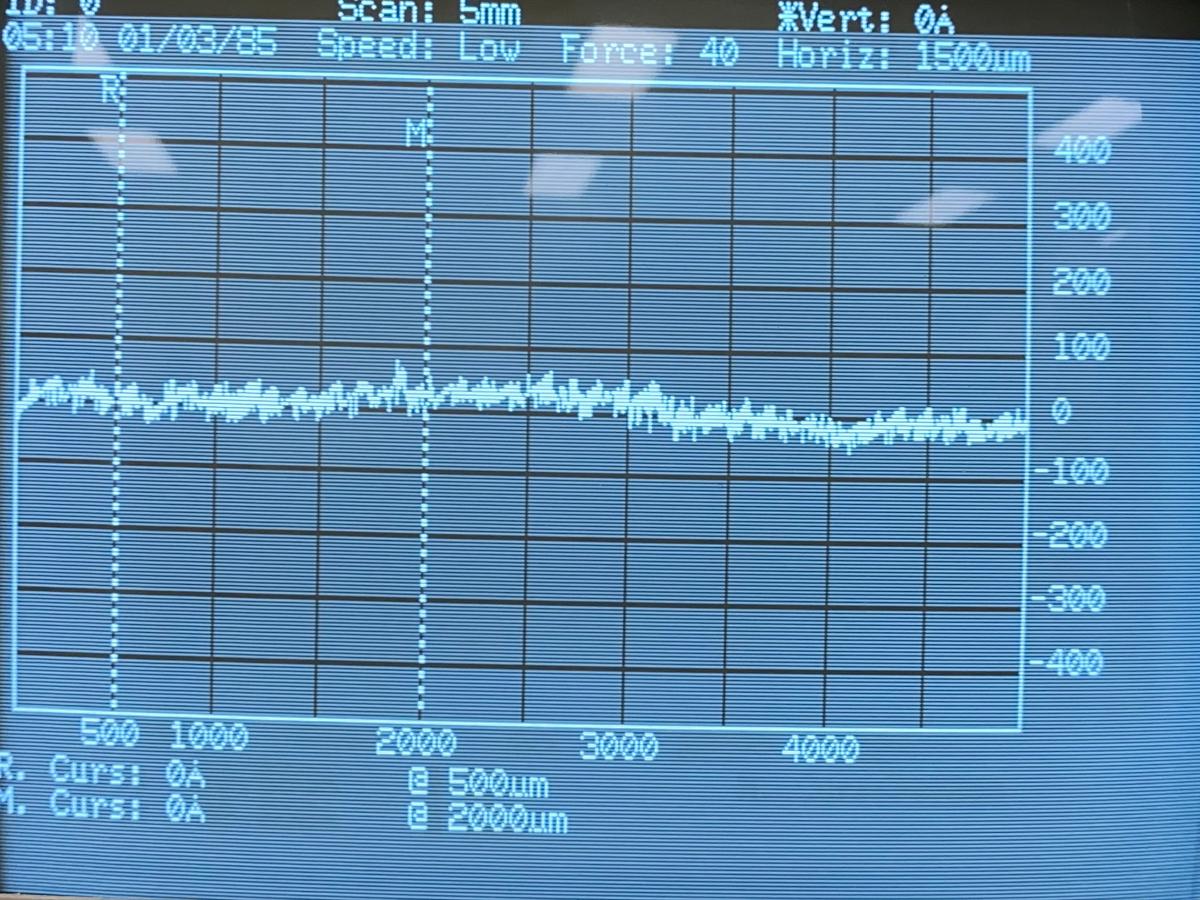

Unit is tested, see sample scans, image 8 and 9 |
