FULL DESCRIPTION of Item 113600

in Vacuum Ovens
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 113600

Offered 1 Offered at $ 19,500.00


TENNEY VACUUM OVEN / DRYING CHAMBER 150ºC

4.5 Cubic Foot Vacuum Oven/Drying Chamber
TENNEY VACUUM OVEN / DRYING CHAMBER 150ºC
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 19,500.00
Number of Units 1
Manufacturer Tenney
Model 4.5SVO
Maximum Temperature 150  ºC  (302 ºF, 423 ºK)
Minimum Temperature 25  ºC  (77 ºF, 298.00 ºK)

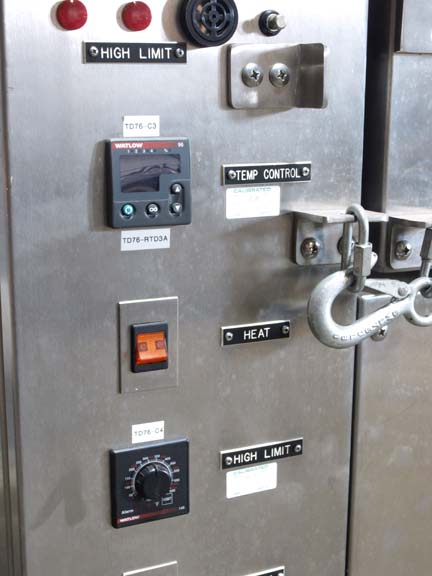

Heat/Cool Controls
  Control Type Digital Setpoint
  Overtemperature Protection YES
  Chart Recorder Strip-Single Pen
  Controller Manufacturer/Model Watlow/96
  Number of Control Zones 1
Capacity/Volume Box 4.50  cu ft  (0.13 cu m)
Chamber Size
  Width 22.00  in  (55.88 cm)
  Depth 24.00  in  (60.96 cm)
  Height 18.00  in  (45.72 cm)

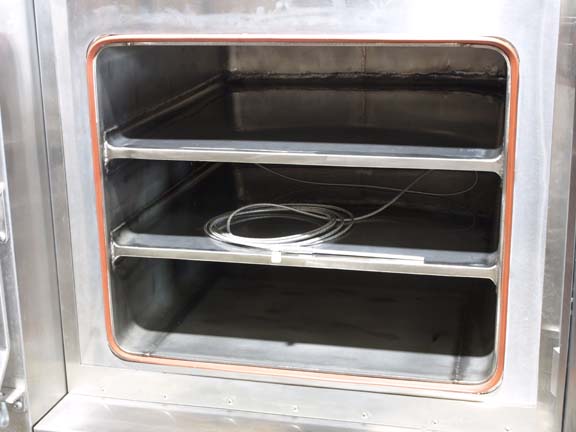

Chamber Characteristics
  Chamber Construction 316 Stainless Steel
  Number of Shelves Provided 2
  Viewing Window YES
External Cooling Water Cooled
Accessories High Limit: Watlow 145 Series
Vacuum System Montior: Watlow 96 Series
Pressure Transducer MKS: Series 722A

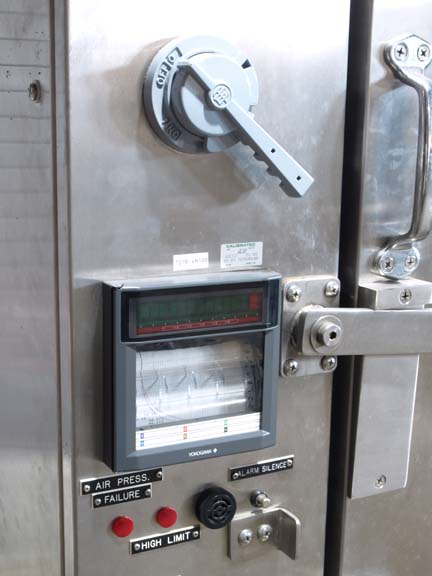

Chart Recorder: Yokogawa VR100
Process Timer: Eagle CX200
Viewing Window: 12" x 12"
Shelves: Two (2) fully welded in place
Other Information Vacuum range: Site level to 100mmHg.
Vacuum pump not included
Water Requirement: 10 GPM at +20°C
Heating: Fluid heating, 3KW immersion heater
Power Requirements 460 V     15.0 A     60 Hz
Year of Manufacture 2002
Exterior Dimensions
  Width 39.000  in  (99.1 cm)
  Depth 48.000  in  (121.9 cm)
  Height 68.000  in  (172.7 cm)
Weight 1,340  lb  (608 kg)
