FULL DESCRIPTION of Item 119886

in Die Shear Testers
Deal directly with Owner:  Catalyst Equipment Corporation of Plano, Texas

Item ID: 119886

Offered 1 Offered at Best Price

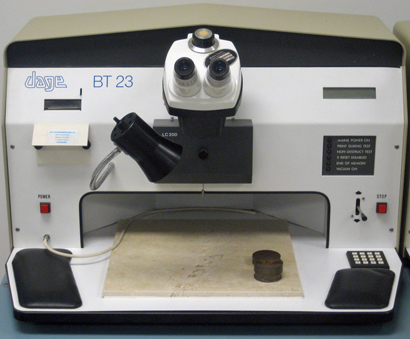

Dage BT-23

Die Shear Tester
Dage BT-23
  Click to see additional image(s)... other image

Location: Plano, TX
Unit Price Unstated
Number of Units 1
Manufacturer Dage Precision
Model BT-23
Description Die Shear Tester
Other Information
  • Shear Tester for Ball Bonds and Tab Bump
  • LC200 Load Cell: 200g Ball Shear
  • BAUSCH & LOMB StereoZoom 4 Microscope
  • Destruct/Non-Destruct Testing
  • 2.0mm (0.08in) X-Axis Travel
  • 0.15mm (0.006in) tip width – Shear Tool Size
  • 3 to 7g (0.107 to 0.25ozf) Tool Landing Force
  • 0.5mm (0.02in) full scale – Load Beam Deflection
  • X-Axis – left to right, Shear Test Direction
  • 110V, 50/60Hz, 20 (in.) Hg Min. Vacuum

OFFERED BY:
(click name below to visit its website directly)
Catalyst Equipment Corporation
Plano , Texas
+1.972.943.0808
