Unit Price |
Unstated |
Number of Units |
11 |
Manufacturer | Affinity |

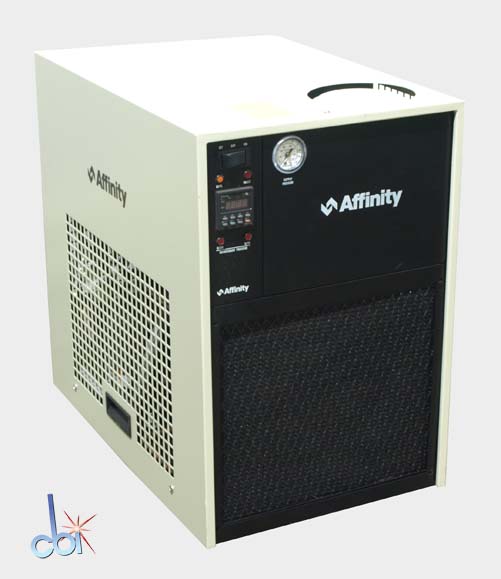

Model | PAA-003T CHILLER |
Cooling System |  |
External Cooling | Air Cooled |
Pump type/Model | Positive Displacement / P2 |
Cooling Capacity | 1,000 W (3,411 BTU/hr) |
Minimum Temperature | 4 ºC (39 ºF, 277.00 ºK) |
Maximum Temperature | 30 ºC (86 ºF, 303 ºK) |
Temperature Control |  |
Control Stability | ± 0.100 ºC |
Heat/Cool Controls |  |

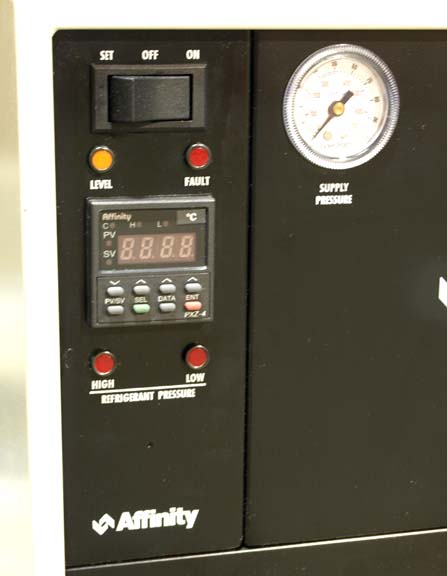

Control Type | Programmable |
Max Flow | 4 GPM (15.20 l/m) |
Maximum Pressure | 60.000 PSI (4,137.18 mbar, 413,718.00 Pa) |
Capacity/Liquid | 1.75 L (0.46 gal) |
Compressor Horse Power | 0.35 HP |
Accessories | Plug type NEMA 6-15P 3-wire 2 pole 15-amp 250-volt. |
Other Information | Refrigerant: R-134A 2.5-lbs |
Power Requirements | 208/230 V
7.0 A
50/60 Hz
1 Phase
|
CE Marked | YES |
Exterior Dimensions |  |
Width | 15.000 in (38.1 cm) |
Depth | 25.000 in (63.5 cm) |
Height | 25.000 in (63.5 cm) |
Weight | 154 lb (70 kg) |
