in Turbo Pumps
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 147469

Offered 1 Offered at $ 7,326.00

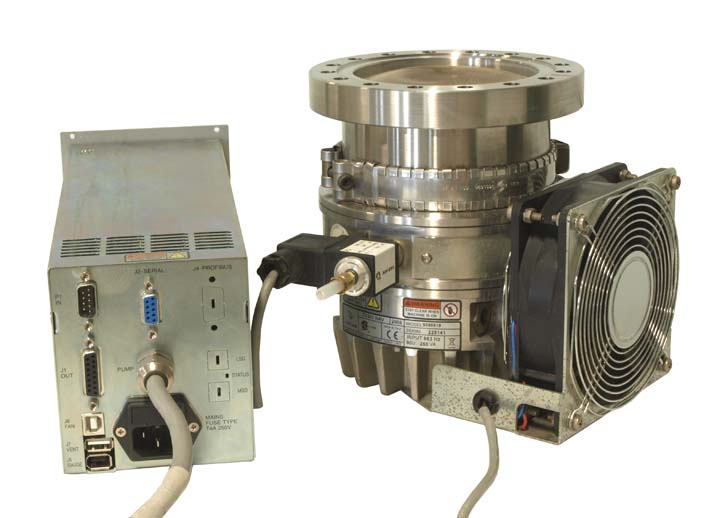

Turbo Pump

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 7,326.00
Number of Units 1
Manufacturer Varian
Model TV-301
Pumping Speed Nitrogen 250.0  l/s  (529.8 CFM)
Ultimate Pressure  3.75E-10(En)  torr  (5.00E-10 mbar)
Inlet Flange Conflat     152.4  mm  (6.000 in)
Foreline Flange KF     16.0  mm  (0.630 in)
Controller Included Yes

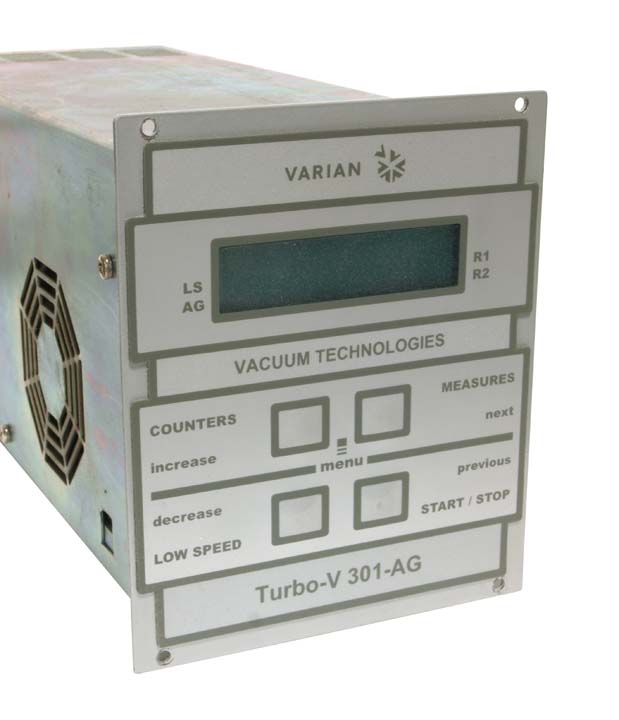

Controller Model/Part Number TV301 p/n 9698991
Cables Included Yes
Duty--Service Normal
Inlet Screen Included Yes
Bearing Type Ceramic
Installation Orientation Any
Rotational Speed 56,000 RPM
External Cooling Forced Air Cooled

Heat Band 120 Volt 60 Watt p/n 969804

Other Information

Flange: ID.4" OD.6"
Pump will be rebuilt when ordered, call for the lead time

Exterior Dimensions
  Width 8.000  in  (20.3 cm)
  Depth 7.000  in  (17.8 cm)
  Height 7.500  in  (19.1 cm)
Weight 17  lb  (8 kg)
