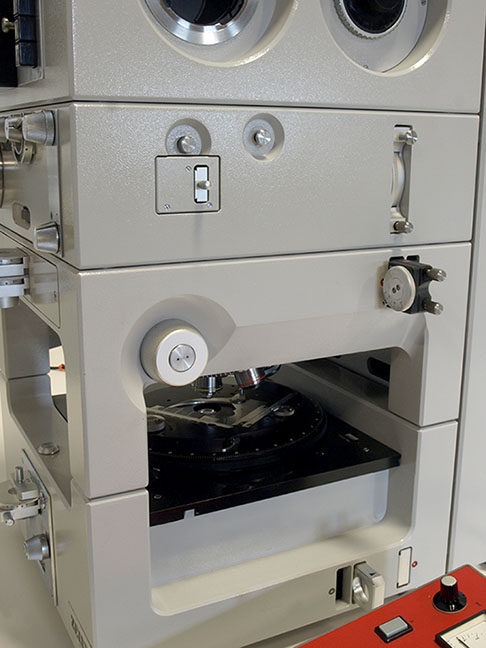

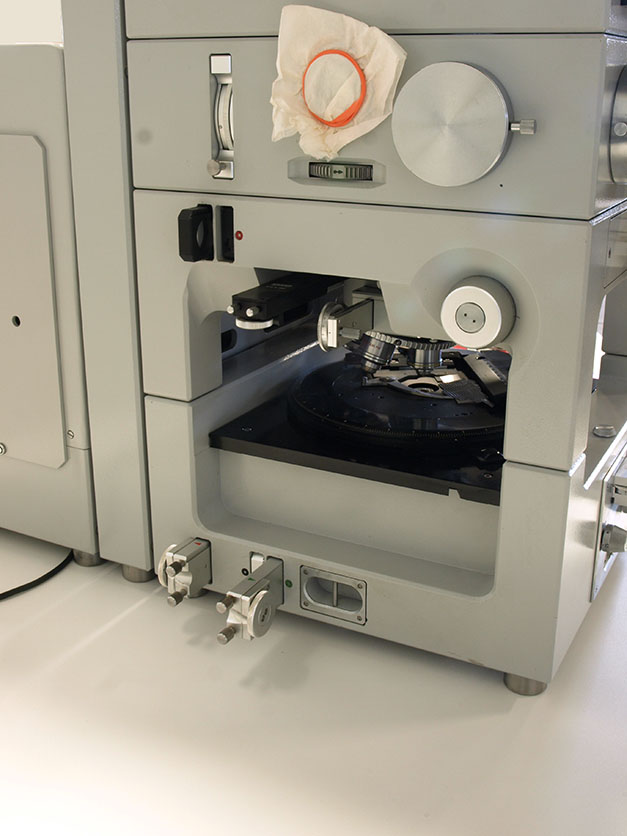

Other Information | Stage Module T 47 56 30 (1) 47 57 01-9900 Lamp field stop slider (1) 47 57 21-9900 Mirror insert (1) 47 57 05-99 Aperture diaphram slider (1) 47 58 00-9900 Filter holder with seven colored filters installed (1) 47 56 60-99 Rotary polarizing stage, click stops every 45 degrees (1) 47 57 31 Zoom condensor insert (1) 47 58 50 (1) 47 58 10 Transmitted light polarizer (1) 46 52 94-9901 Condenson 1.4 pol (1) 46 55 00 1.2/1.4 Ultra condensor (1) Darkfield condensor 0.7/0.85
Objective Module 47 56 01 (1) 47 57 55 Reflector HPL-Pol+D (1) 47 58 15 Reflected light polarizer (1) 47 57 10-9902 Lamp field stop slider--reflected light (1) 47 56 08-9900 Four place revolving nose piece (1) 47 57 60-9900 Analyzer sliding tube (1) 47 57 49 Reflected light mirror (1) 47 58 46 Analyzer K 0-40 λ (1) 47 58 20 Polarizer (1) 47 56 07 Carrier for revolving nose piece sing objective (3) 47 59 51 -9900 Centerable revolving nose piece single objective (1) 47 58 00 filter slider--no filters installed (1) 47 58 55 9901 Four place revolving nose piece with 10x, 25x, 50x, 100, Nomarski prisms--Note Prism may be delaminated. (1) 47 57 08 Aperture diaphram slider
Objectives (1) EPIPLAN-HD 5x/0.12 Pol ∞/0 (1) PLAN 5x/0.12 pol ∞/- (1) PLANAPO 10x/0.25 pol ∞/0.17 (1) PLANAPO 25x/0.65 pol ∞/0.17 (1) PLANAPO 50x/0.95 pol ∞/0.22 (1) EPIPLANAPO-HD 25X/0.65 pol ∞/0 (1) PLANAPO 100x/1.3 oel pol ∞/0.17

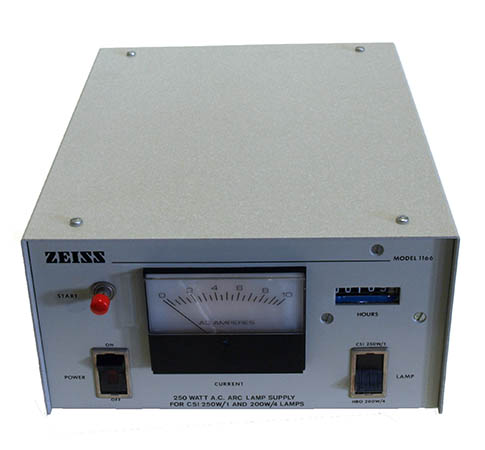

Lamp Housing 47 56 40 For Maximum of Three Light Sources Light source -- 100 Watt halogen 12v Light source -- 250 Watt CSI (confocal spectral imaging) -- CSI 250 W/1 CSI Lamp Supply Zeiss model 1166

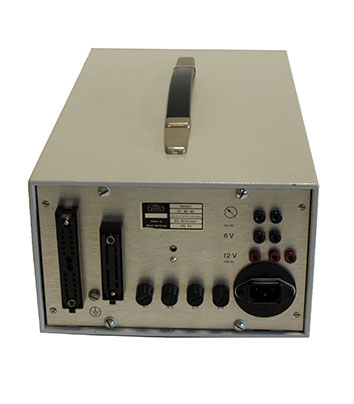

Power Supply Unit 47 20 83 Control Unit 47 56 90 |
