Unit Price |
Unstated |
Number of Units |
1 |

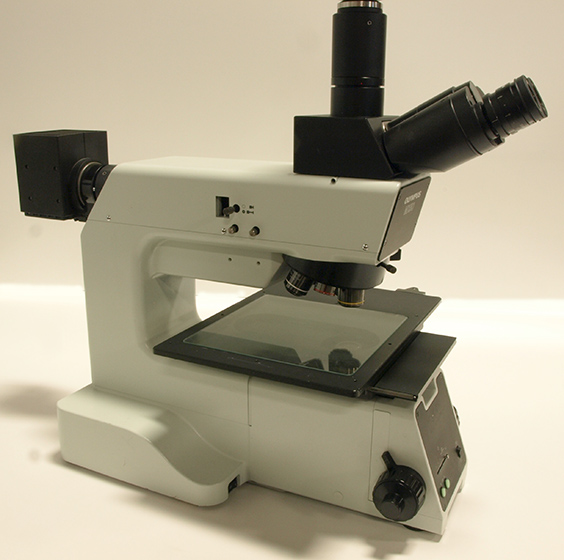

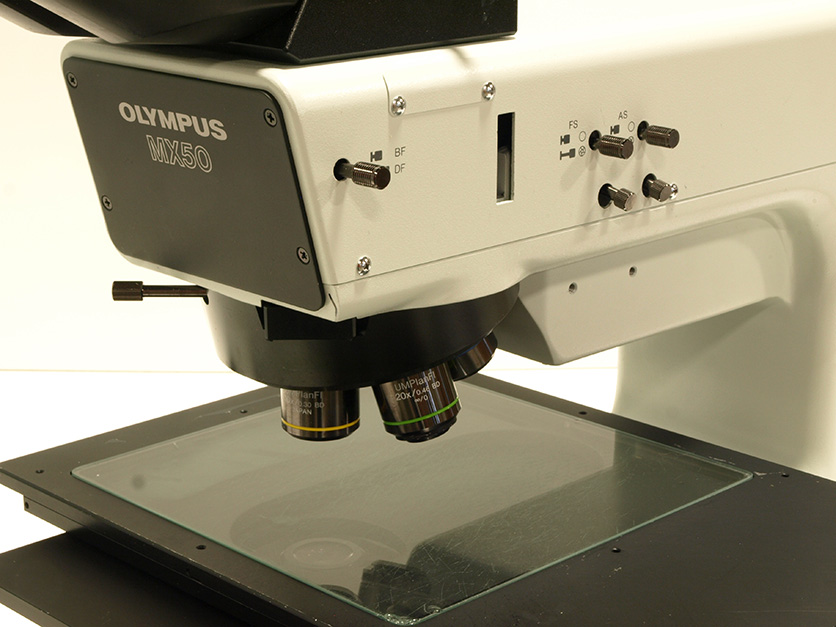

Manufacturer | Olympus |
Model | MX50T-F |
Microscope Configuration | Brightfield & Darkfield |
Illumination Type | Reflected Light |
Binocular Angle | 45° |
Eyepieces |  |
Model | U-SWH 10x.26.5 |
Magnification | 10 X |
Field Number | 26 mm |
Focusing | YES |
Trinocular/Phototube Provided | YES |
Motorized Nosepiece | YES |
Multiple Objectives Models | Olympus MX50A-F
LMPlan FL 5x/0.15 NB: Brightfield only UMPlan FL 10x/0.30 BD UMPlan FL 20x?0.46 BD UMPlan FL 50x/0.80 BD LMPlan FL 100x/0.90 BD |
Infinity Corrected Objectives | YES |
Illumination Power | Volts: 12
Watts: 100
|
Power Supply Included | YES |
Stage Type | Coaxial X-Y |
Stage Area | Length: 356 mm (14.016 in)
Width: 254.0 mm (10.000 in)
|
X-Y-Z Stage Travel | X: 210 mm (8.268 in)
Y : 210 mm (8.268 in)
|
Accessories | Olympus MX50A-F Details
U-ETR-3 Trinocular MX-LSH Halogen lamp 12V,100W |

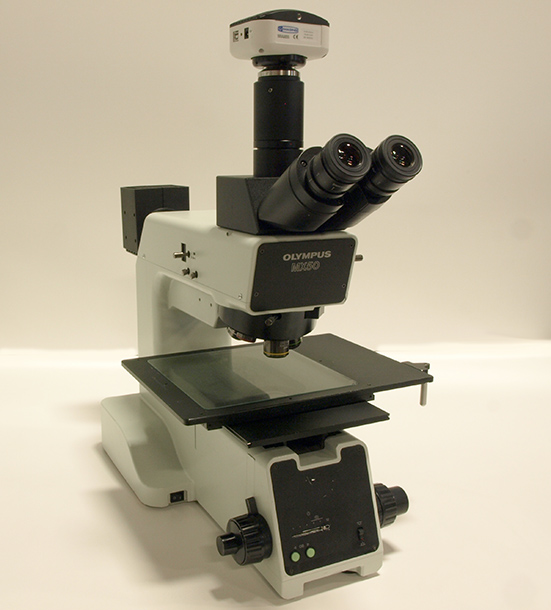

Other Information | NB: Qimaging Camera and phototube shown are not included. |

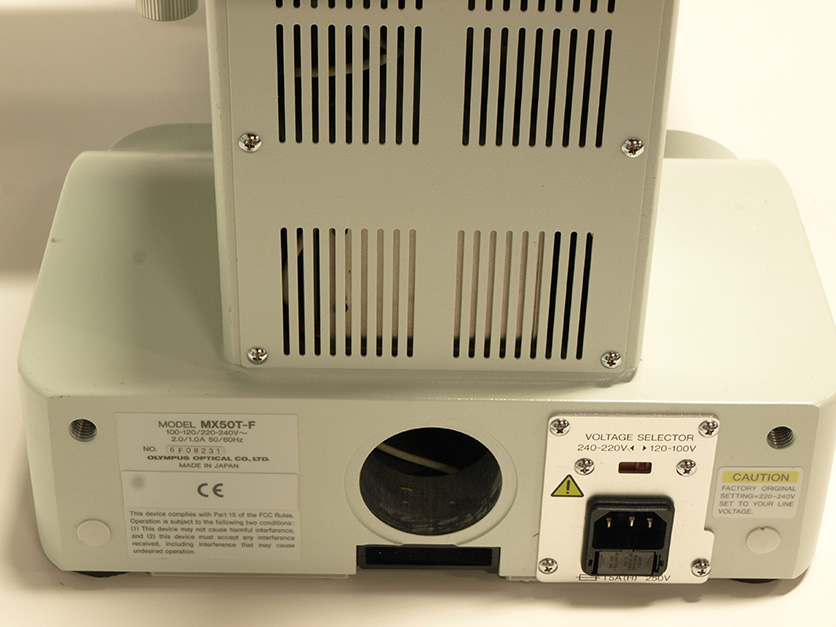

Power Requirements | 100-240 V
5.0 A
50/60 Hz
1 Phase
|
CE Marked | YES |
Condition | Very Good |
