in Manual Wedge Bonders
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 172393

Offered 1 Offered at Best Price

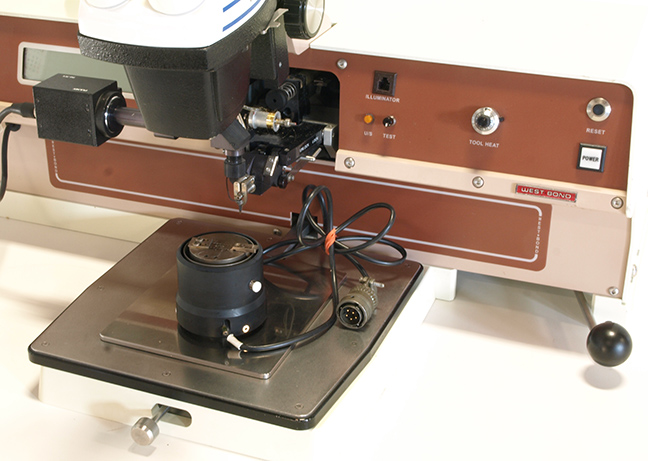

Semi-Automatic Wedge Bonder

Model 4500B operates under microprocessor control with user-programmed memory to stitch bond a succession of parallel multi-arch wires, requiring an operator only to position the critical bond target. Each increment of motion of tool and work in both Z and Y directions is chosen by stepper motors under program control so that the resulting wire connections have identical shapes. This is ideal for bonding high power, high frequency devices where it is necessary to hold the mutual inductance of parallel wires constant.

  Click to see additional image(s)... other image

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer West-Bond
Model 4500B
Description Semiautomatic Wedge Bonder

Heated Work Holder with West Bond 1200D Power Supply
Heated tip

Other Information

The 4500B is a single tool with 45 degree wire feed designed to bond aluminum or gold wires ranging from 0.0007 in. to 0.002 in.

Power Requirements 115 V     2.5 A     50/60 Hz     1¬†Phase
Exterior Dimensions
  Width 27.000  in  (68.6 cm)
  Depth 26.000  in  (66.0 cm)
  Height 19.000  in  (48.3 cm)
Weight 92  lb  (42 kg)

(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.
