FULL DESCRIPTION of Item 179019

in Radio Frequency (RF) Generators
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 179019

Offered 6 Offered at Best Price

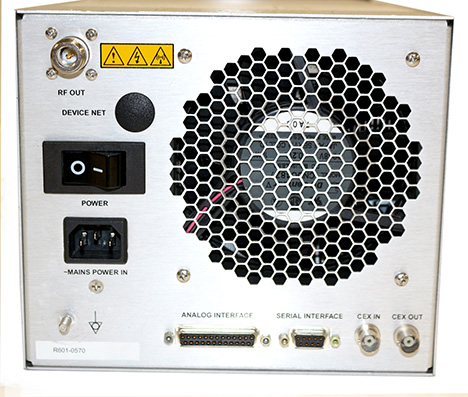

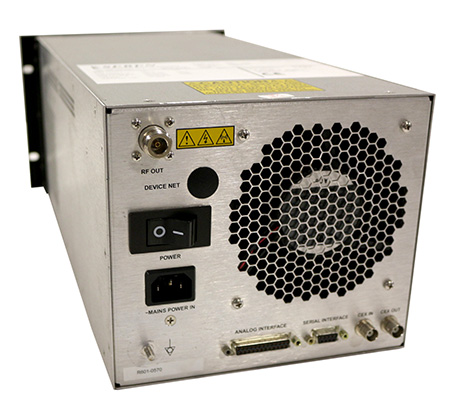

SEREN RF GENERATOR, 600 WATTS

RF Generator
Part number 9600610028.

You may also be interested in Seren MC2 Matching Network Controller

SEREN RF GENERATOR, 600 WATTS
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 6
Manufacturer Seren
Model R601
Description RF Generator
Rated Power Output 600 Watts
Frequency 13.56
Scale MHz
Mismatched Power Output 100.00  W
Output Connector Type N
Panel Meters Digital
External Cooling Air Cooled
Other Information

Part number 9600610028.
This part number has analog interface connector pin 3 "RFON" modified, it will turn RF "ON" when pulled up to +24V.

If your application require standard unit (pin 3 internally pulled up to +5V, and will turn RF "ON" when pulled to the ground),

request conversion to the standard unit P/N 9600610000 when ordering, please.


Input power: 90-125 VAC or 190-264 VAC, 47-63 Hz (universal input).  Maximum current: 15A. There are no transformer voltage taps to configure.

Extended Description  Details at 6100220000_R(L)X01_Series_OPER_MAN_V1_04.pdf
Power Requirements 120/240 V     15.0 A     47-63 Hz     1 Phase
Year of Manufacture 2007
Exterior Dimensions
  Width 9.500  in  (24.1 cm)
  Depth 18.500  in  (47.0 cm)
  Height 7.000  in  (17.8 cm)
Weight 33  lb  (15 kg)
