FULL DESCRIPTION of Item 1802

in Multiple Gauge Controllers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 1802

Offered 2 Offered at $ 1,325.00 (each)


GRANVILLE PHILLIPS DUAL ION/SINGLE CONVECTRON CONTROLLER

Dual Ion/Single Convectron Controller



Granville Phillips Model 360, can replace 307 controller

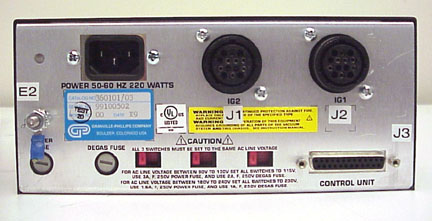

Picture of the controller's back panel is representative

GRANVILLE PHILLIPS DUAL ION/SINGLE CONVECTRON CONTROLLER
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 1,325.00 (each)
Number of Units 2
Manufacturer Granville Phil
Model 360
Description Dual Ion/Single Convectron Controller
Gauge Types Controlled Ion; Convectron
Cables Included No
Accessories

Contains modules:
360104 standard Electrometer with Stabil-ion remote control
360105 for single convectron gauge

Optional 6 channel process control board, can be added if available, +$545

Cable between controller and the power supply included.

Ion gauge cables see items 6799, 179524, 209733

Other Information

This controller can be calibrated for different ion gauges, calibration for each channel is loaded via memory modules.

  • If you have standard Bayard-Alpert glass gauge, CBI can upload average calibration for that gauge with sensitivity 10/Torr to channel one, two or both.
  • If you have Stabil-Ion gauge with individual module containing calibration for that gauge, you should upload that to the controller before using it.
  • If you have Stabil-Ion gauge without individual module, CBI can upload average calibration with sensitivity 50/Torr to channel one, two or both.

Specify type and sensitivity of your gauges when ordering.
Features and controls: Two ion gauges in sequential operation
One Convectron gauge
Electron Beam Degas
I/O Remote
STABIL-ION Remote
Click here for the manual

Condition Excellent
Power Requirements 115 V     50/60 Hz     1 Phase
Exterior Dimensions
  Width 8.000  in  (20.3 cm)
  Depth 11.000  in  (27.9 cm)
  Height 3.500  in  (8.9 cm)
Weight 14  lb  (6 kg)
