in Rotary Vane Pumps
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 186387

Offered 23 Offered at Best Price

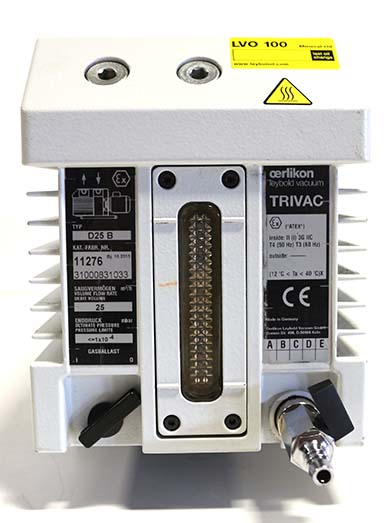

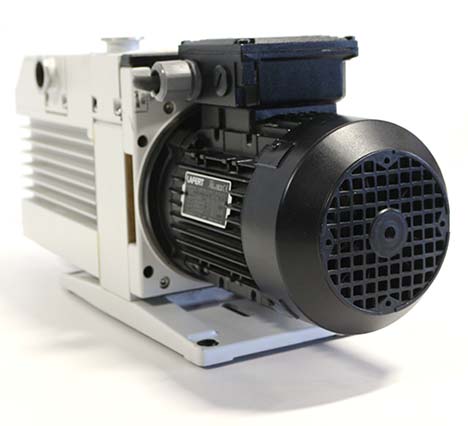

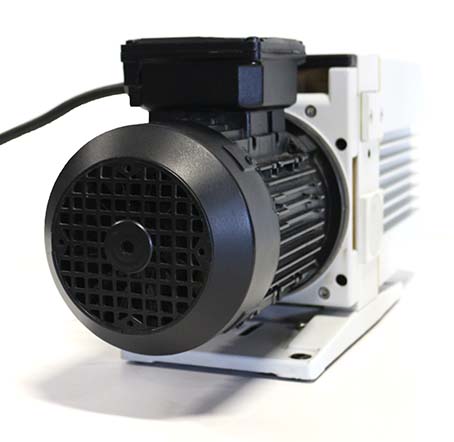

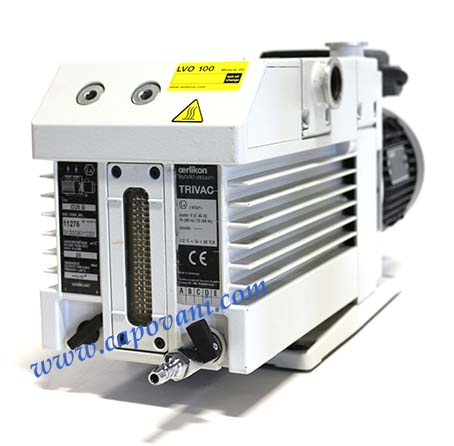

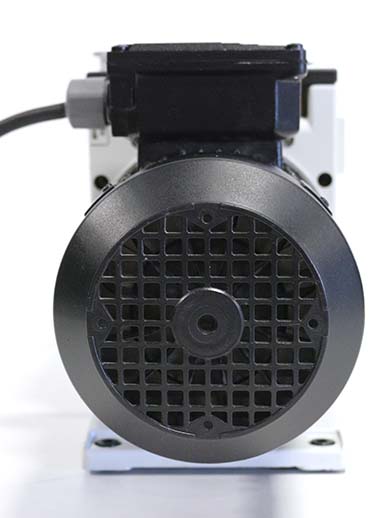

Two Stage Rotary Vane Vacuum Pump

Once sold, all mechanical vacuum pumps will be rebuilt to factory specifications, unless stated otherwise.
All rebuilt pumps are sold with a one year warranty on parts and labor.
Pumps can be ordered Fomblin® or standard hydrocarbon oil prepped.

Pumping speed and ultimate pressure are based on 60 Hz operation.



  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 23
Manufacturer Oerlikon Leybold
Model D25B
Pumping Speed 20.9  CFM  (590.6 l/m)
Ultimate Pressure  7.50E-5(En)  torr  (10.00E-5 mbar)
Inlet Flange KF     25.0  mm  (0.984 in)
Exhaust Flange KF     25.0  mm  (0.984 in)
Refurbished YES
Duty--Service Normal
Two-Stage YES
Gas Ballast Yes
Direct Drive Yes
Motor Horsepower 1.5  HP
Rotational Speed 1,725 RPM
Oil Type Hydrocarbon
Oil Capacity      Maximum: 0.47  L  (0.50 qt, 0.10 Br gal)
Other Information Part No.: 11276

Power input:  200/380-400V, 50Hz -- 200-240/380-400V, 50Hz
Power input:  208-240/416-480 V, 60Hz -- 200-240/380-480, 60Hz
Extended Description  Details at Oerlikon Leybold D25B_11276.pdf
Power Requirements 230/460 V     3.6 A     1.8 A(2)     50/60 Hz     3 Phase
Exterior Dimensions
  Width 9.750  in  (24.8 cm)
  Depth 25.000  in  (63.5 cm)
  Height 11.750  in  (29.8 cm)
Weight 98  lb  (44 kg)

OFFERED BY: (click name below to visit its website directly)

Capovani Brothers Inc.
Scotia , New York
Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, Fax: 518.381.9578).

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.
