Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 1887

Offered 1 Offered at Best Price

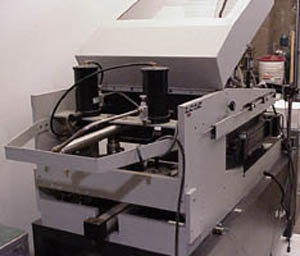

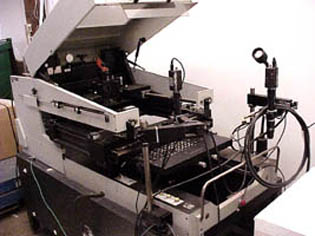

Screen Printer

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer MPM
Model SP2400
Description Screen Printer With Manual Vision System

Manual vision system assures precise alignment of board to stencil
Provides for fewer defects and higher yields.

Other Information

System specifications:
Print area: 20" x 20" max
Frame size: 29" x 29" OD.
Board carriage

  • Registration repeatability: ±0.0005"
  • Board size: 21" x 21"
  • X Y Adjustment: ±0.500"
  • Rotary adjustment: ±10°
    Squeegee head
  • Print stroke adjustment: 1" to 23"
  • Squeegee speed: 0 to 12" per second
  • Squeegee pressure: 5 to 60 lbs.
  • Squeegee angle of attack adjustment: ±5°
  • Squeegee holder: 21" with 0.375 square blade
  • Squeegee flood blade, seperate height and level adjustment
    Motor drive: 1' range
    Vacuum work holder
    Manual vision system
  • Two camera assemblies
  • Video splitter
  • Work lamp
  • Monitor
Power Requirements 115 V     15.0 A     50/60 Hz     1¬†Phase
Condition Excellent
Exterior Dimensions
  Width 32.000  in  (81.3 cm)
  Depth 81.000  in  (205.7 cm)
  Height 59.000  in  (149.9 cm)

(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, and Discover Card are accepted.
