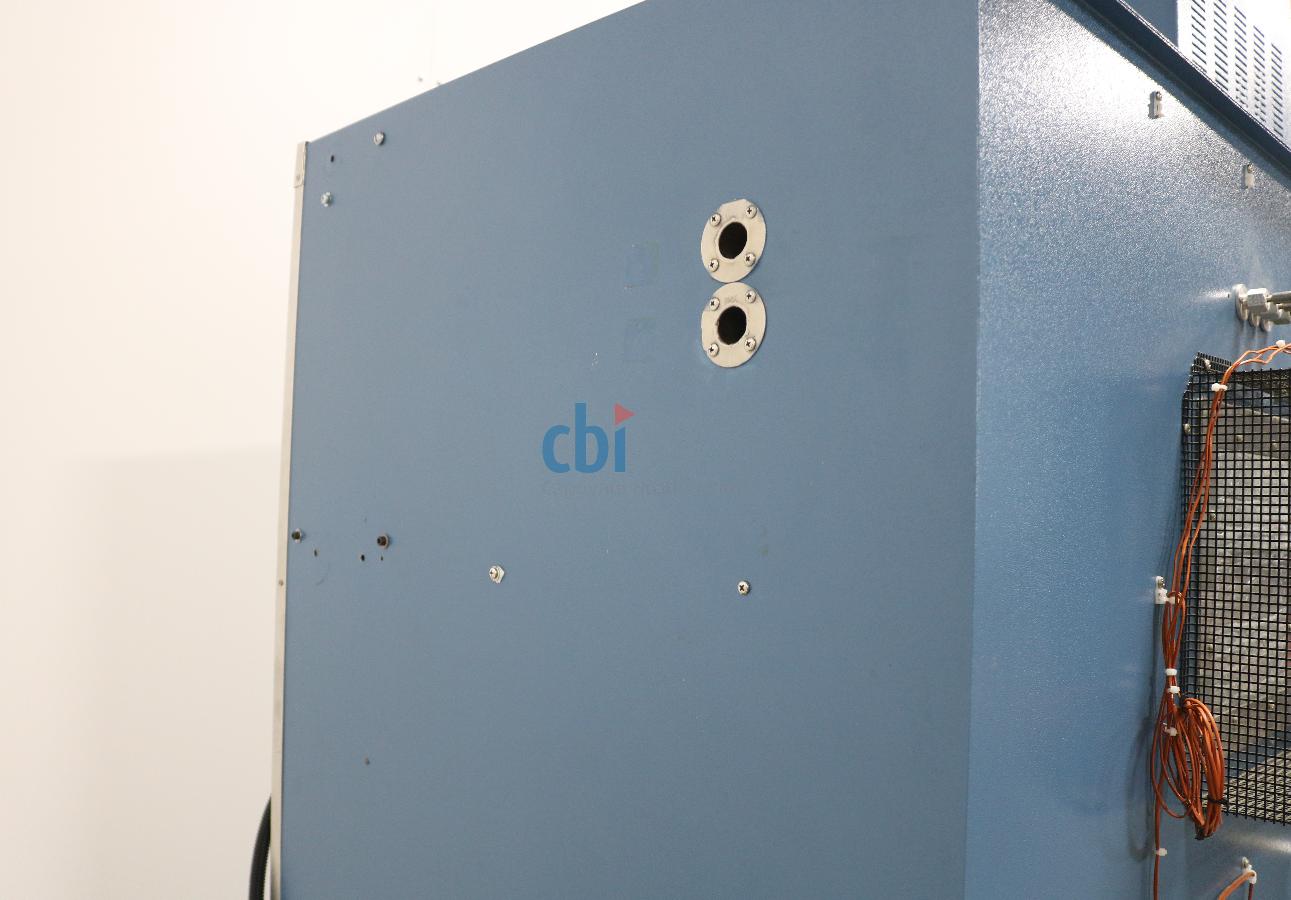

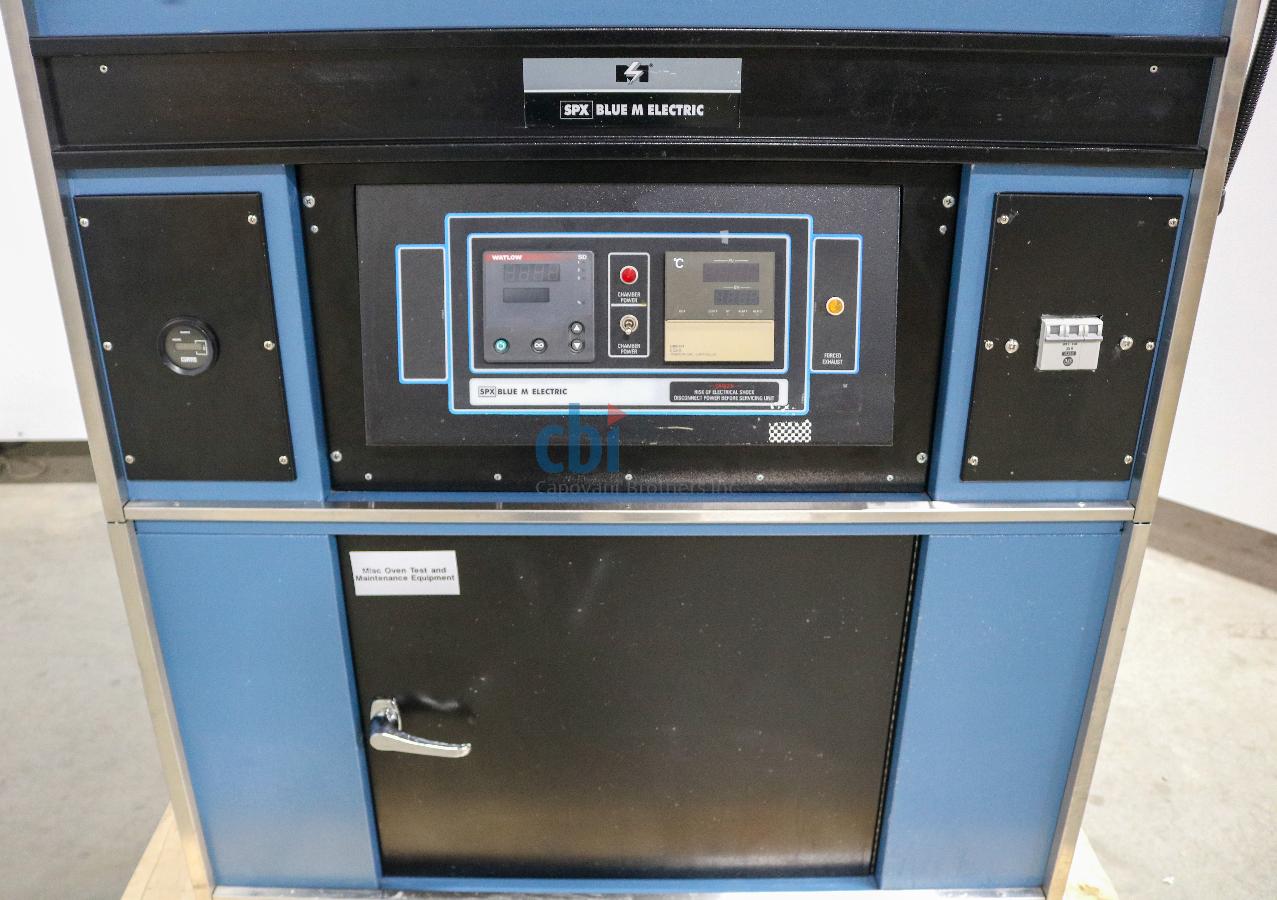

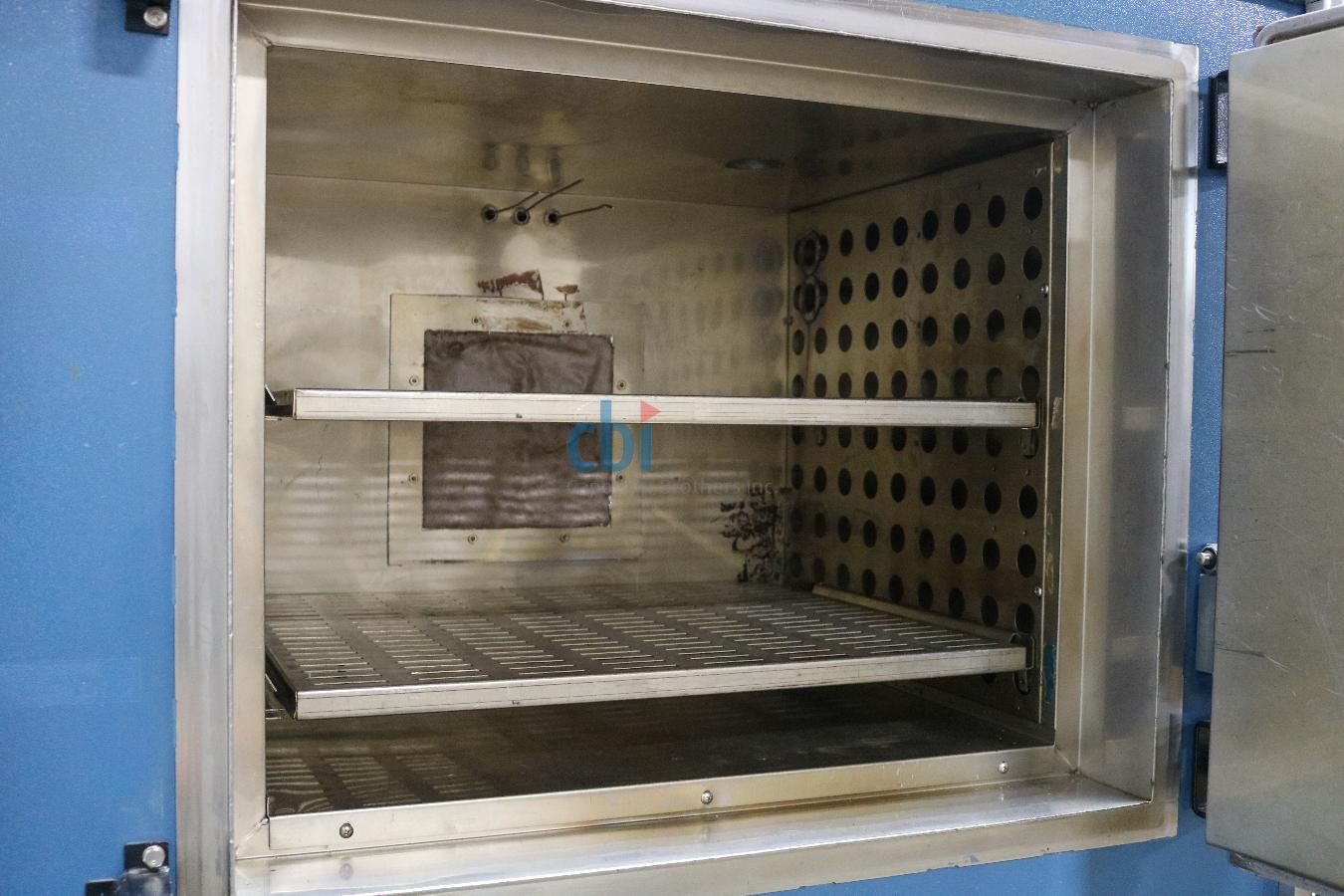

Item ID: 203160 1 Offered at Best Price BLUE M CLASS A VOLATILE OVEN 316C Class A Volatile Oven ... other images Location: Scotia, New York Unit Price Unstated Number of Units 1 Manufacturer Blue M Model DCSA-256-G-MP550-HP Description Class A Volatile Oven Maximum Temperature 316 ºC (601 ºF, 589 ºK) Heat/Cool Controls Control Type Digital Setpoint Controller Manufacturer/Model Omron E5AX--A-F Capacity/Volume Box 5.80 cu ft (0.16 cu m) Chamber Size Width 25.00 in (63.50 cm) Depth 20.00 in (50.80 cm) Height 20.00 in (50.80 cm) Chamber Characteristics Chamber Construction Stainless steel Maximum Number of Shelves 2 Number of Shelves Provided 2 Number and Size of Access Ports 3-1" Access ports 2 on right and 1 on left side Other Information Watlow SD control for over temperature. Heating capacity 12-KW Minimum purge time required 1-min Exhaust duct 3" x 7" Type of solvent (Flammable liquid or gas} VM & P naptha or equal. Fire Extinguisher port 2" on top of unit. 25-Amp Main Breaker. Power Requirements 480 V 16.0 A 60 Hz 3 Phase Exterior Dimensions Width 45.000 in (114.3 cm) Depth 40.000 in (101.6 cm) Height 83.000 in (210.8 cm) Weight 675 lb (306 kg) OFFERED BY: (click name below to visit its website directly)Capovani Brothers Inc. Scotia , New York 1.518.346.8347 Shipping & Handling:Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions. Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.Please feel free to call us with any questions. (Phone: 518.346.8347, Fax: 518.381.9578). Payment:Minimum order of $50 required. We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms. All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms. All other sales, including foreign sales, are prepayment only. MasterCard, VISA, Discover and AMEX are accepted at sellers discretion. Domestic Terms and Conditions International Terms and Conditions Deal directly with Owner: Capovani Brothers Inc. of Scotia, New York Make OFFERSend INQUIRY
Class A Volatile Oven

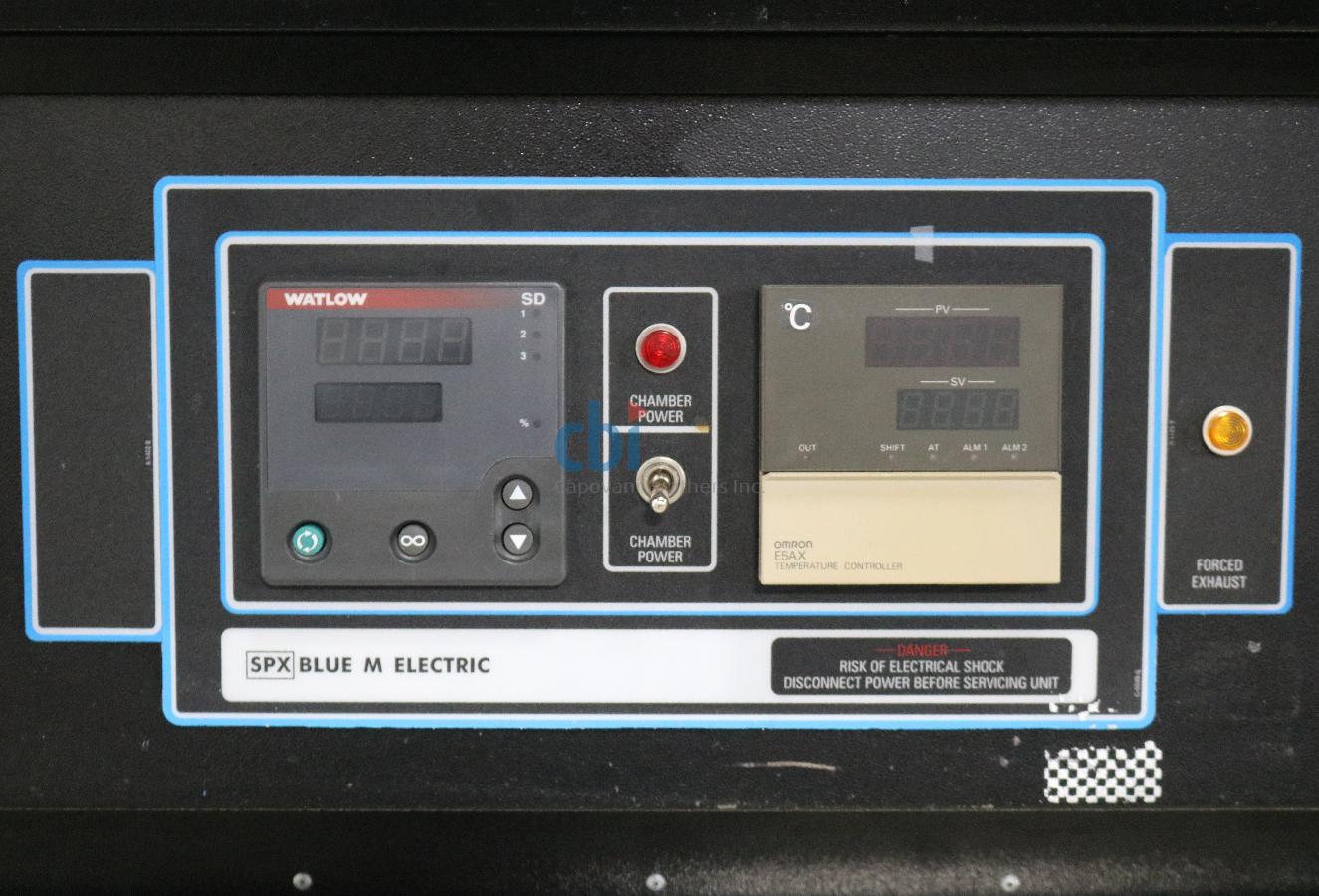

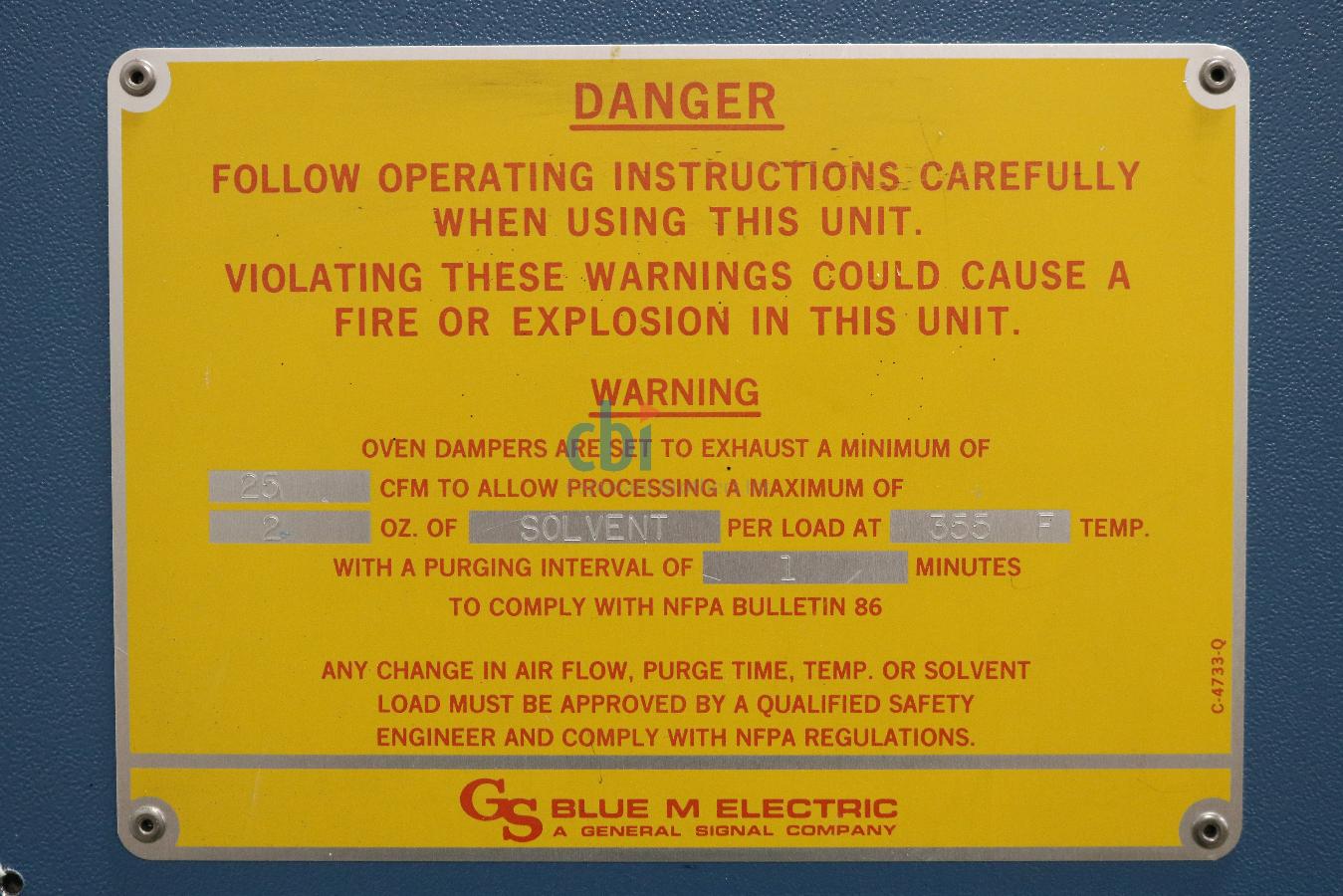

Watlow SD control for over temperature.
Heating capacity 12-KW
Minimum purge time required 1-min
Exhaust duct 3" x 7"
Type of solvent (Flammable liquid or gas} VM & P naptha or equal.
Fire Extinguisher port 2" on top of unit.
25-Amp Main Breaker.
