Unit Price |
Unstated |
Number of Units |
2 |

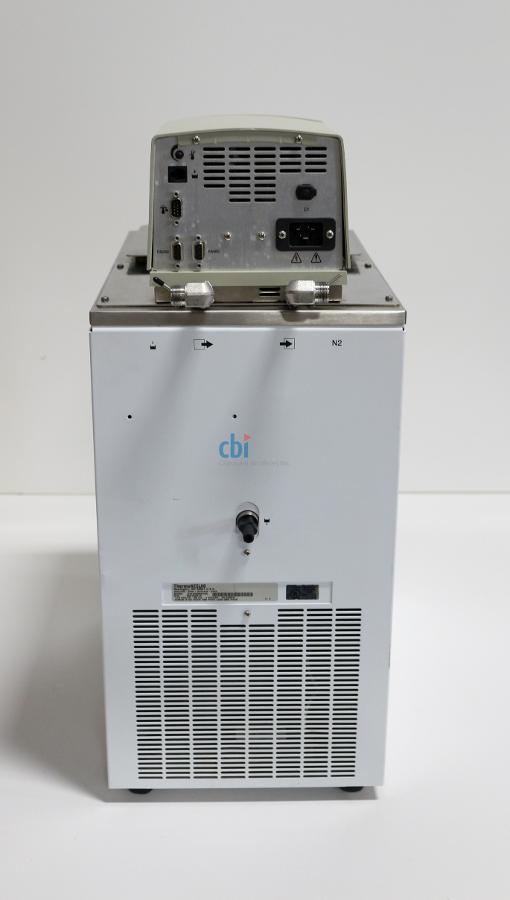

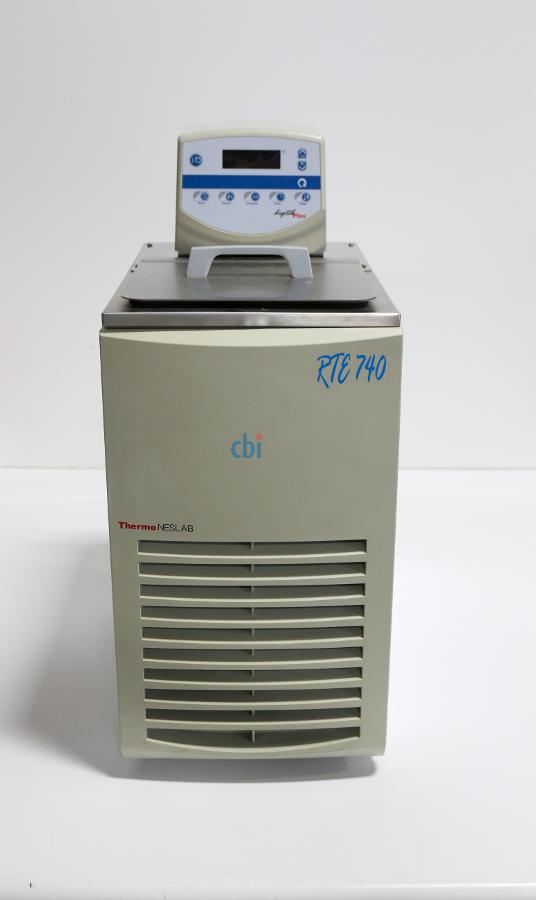

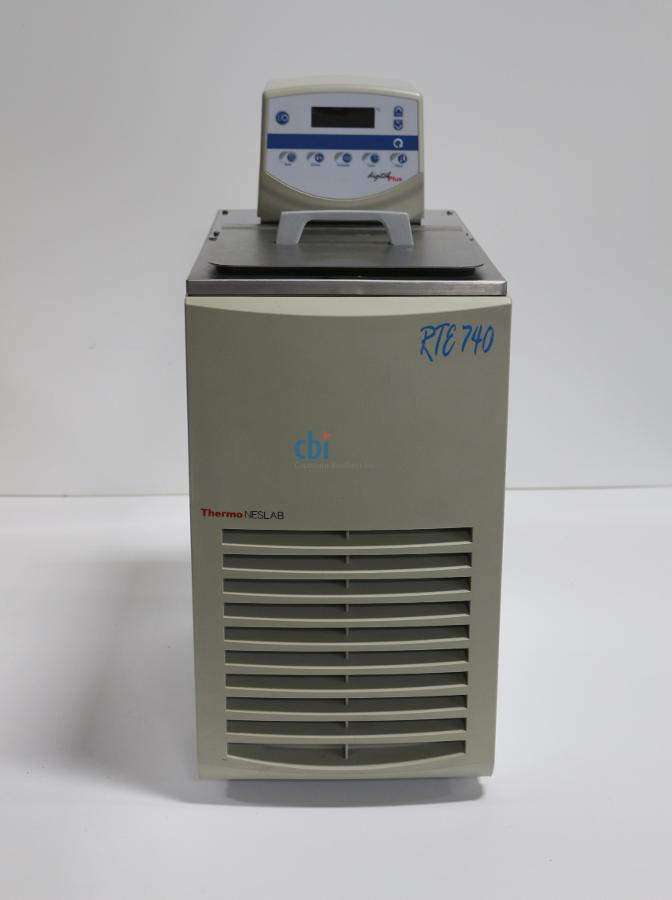

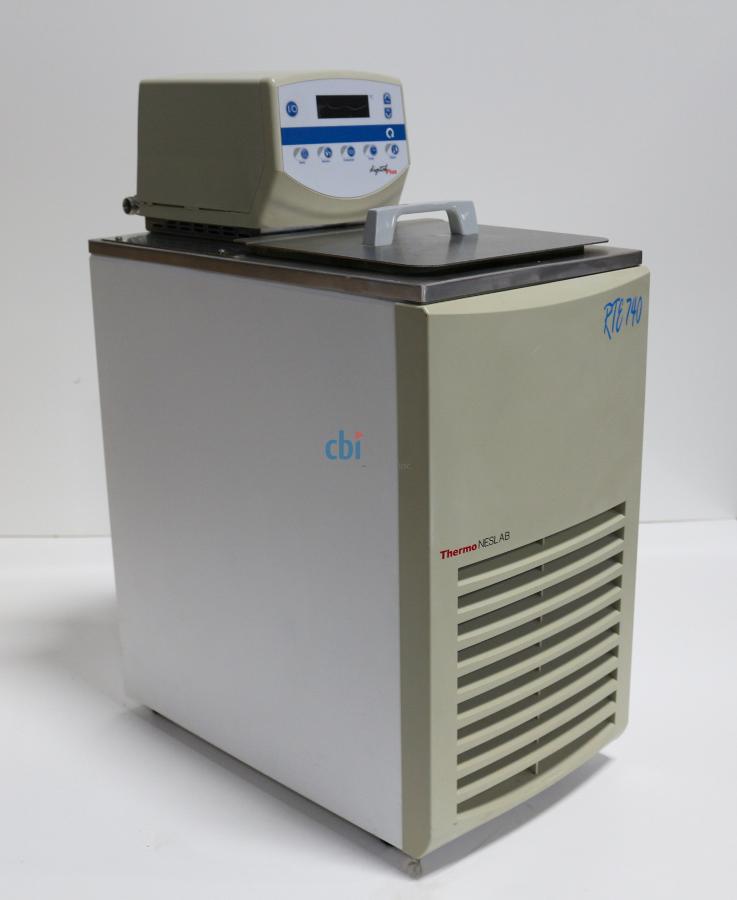

Manufacturer | Neslab |
Model | RTE-740 Digital Plus |
Minimum Temperature | -40 ºC (-40 ºF, 233.00 ºK) |
Maximum Temperature | 200 ºC (392 ºF, 473 ºK) |
Cooling Capacity | 800 W (2,729 BTU/hr) |
Temperature Control |  |
Control Stability | ± 0.010 ºC |
Heat/Cool Controls |  |
Control Type | Programmable |
Overtemperature Protection | YES |
Interface | Other |

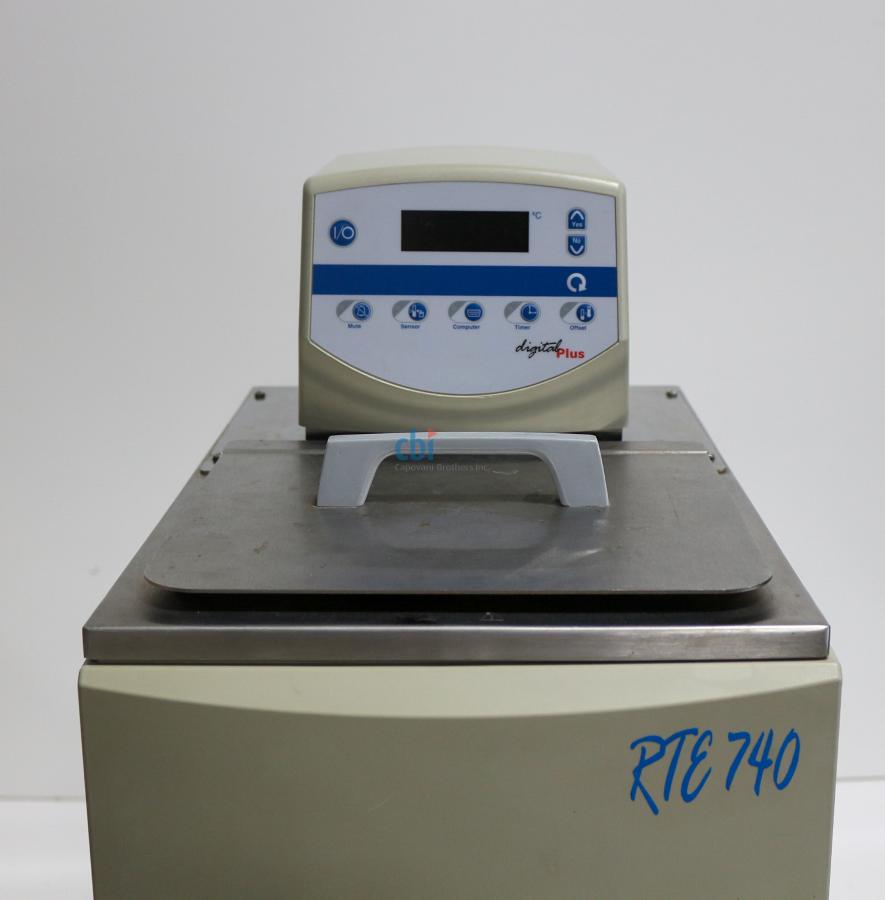

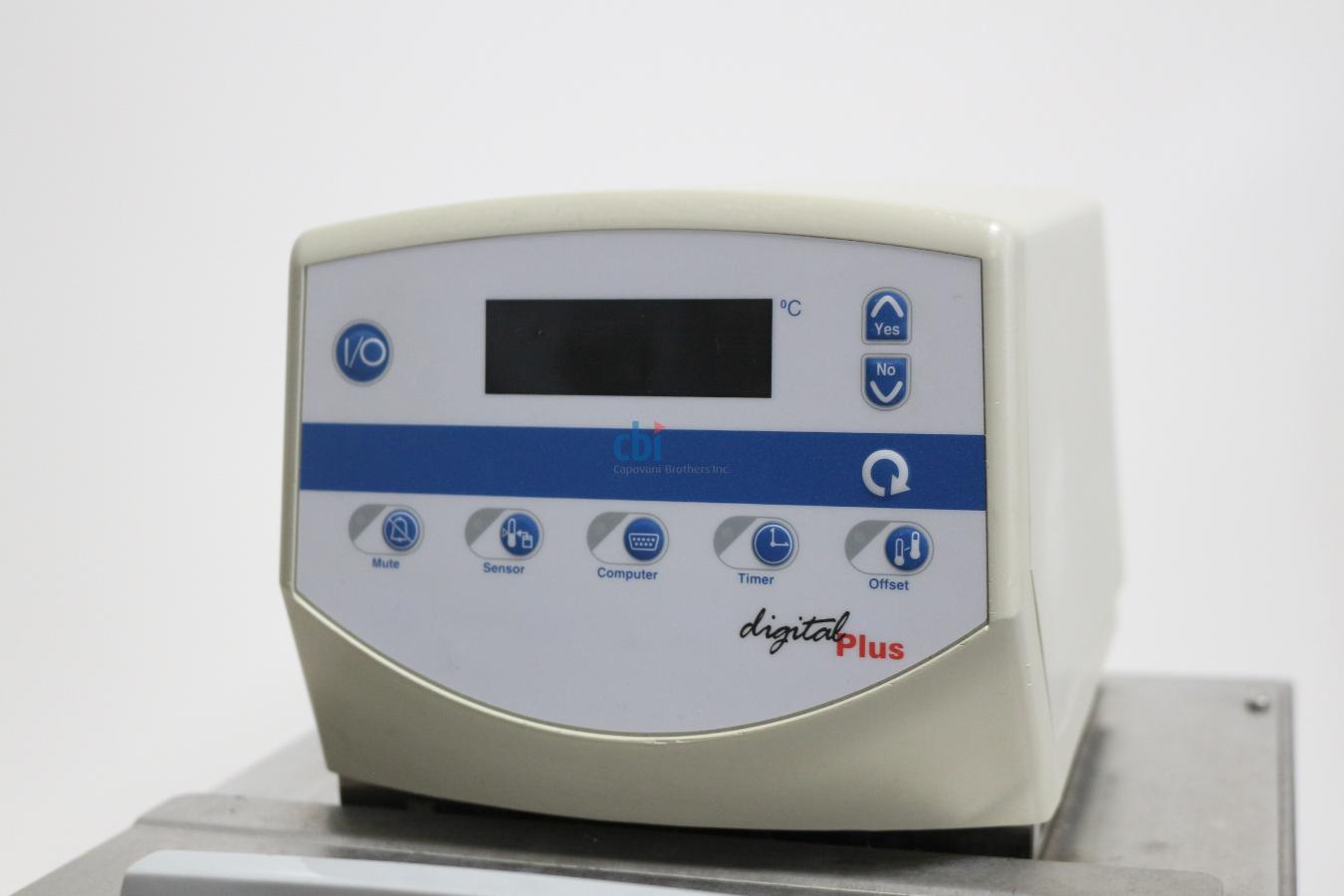

Controller Manufacturer/Model | Digital Plus |
External Cooling | Forced Air Cooled |

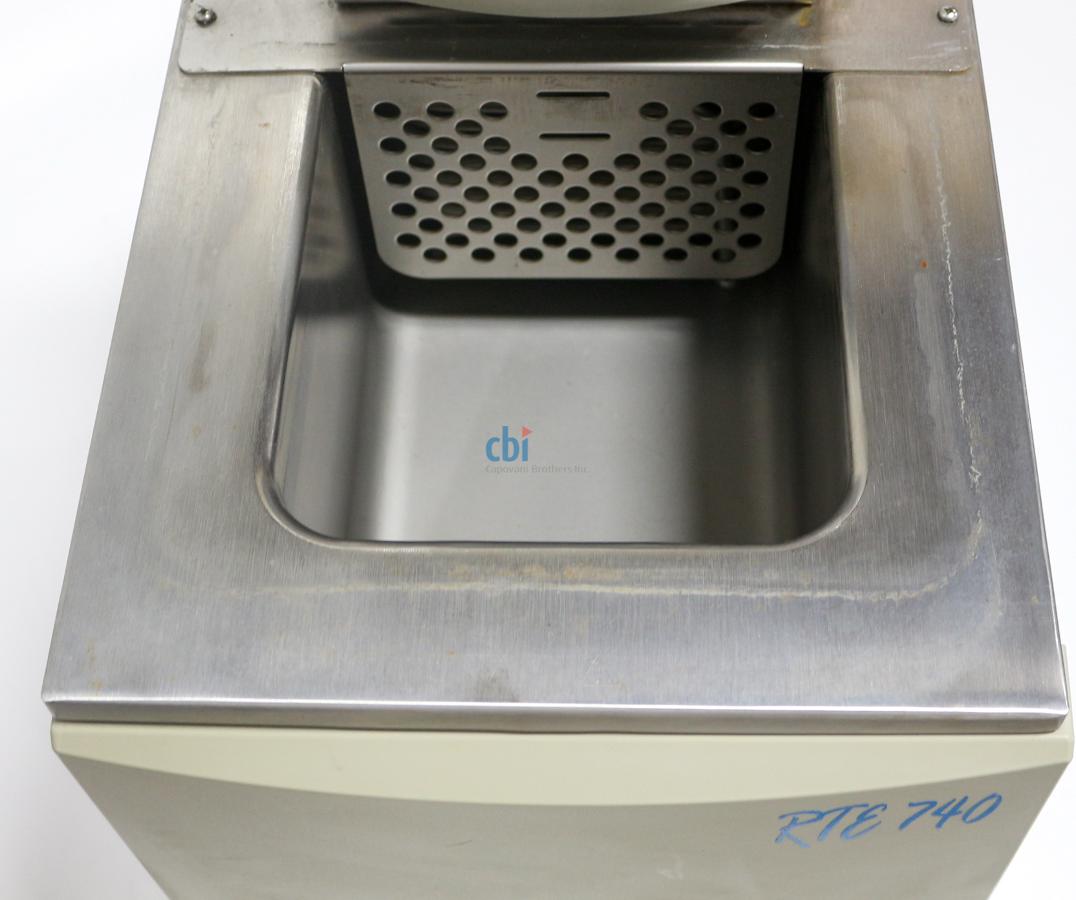

Bath/Tank Dimensions |  |
Length | 7.2047 in (18.30 cm, 183.0 mm) |
Width | 6.6142 in (16.80 cm, 168.0 mm) |
Depth | 5.9843 in (15.20 cm, 152.0 mm) |
Inlet Connection | 1/4-NPT |
Outlet Connection | 1/4-NPT |
Capacity/Liquid | 7.20 L (1.90 gal) |
Refrigerant Type & Quantity | Suva R-404A 8-oz |

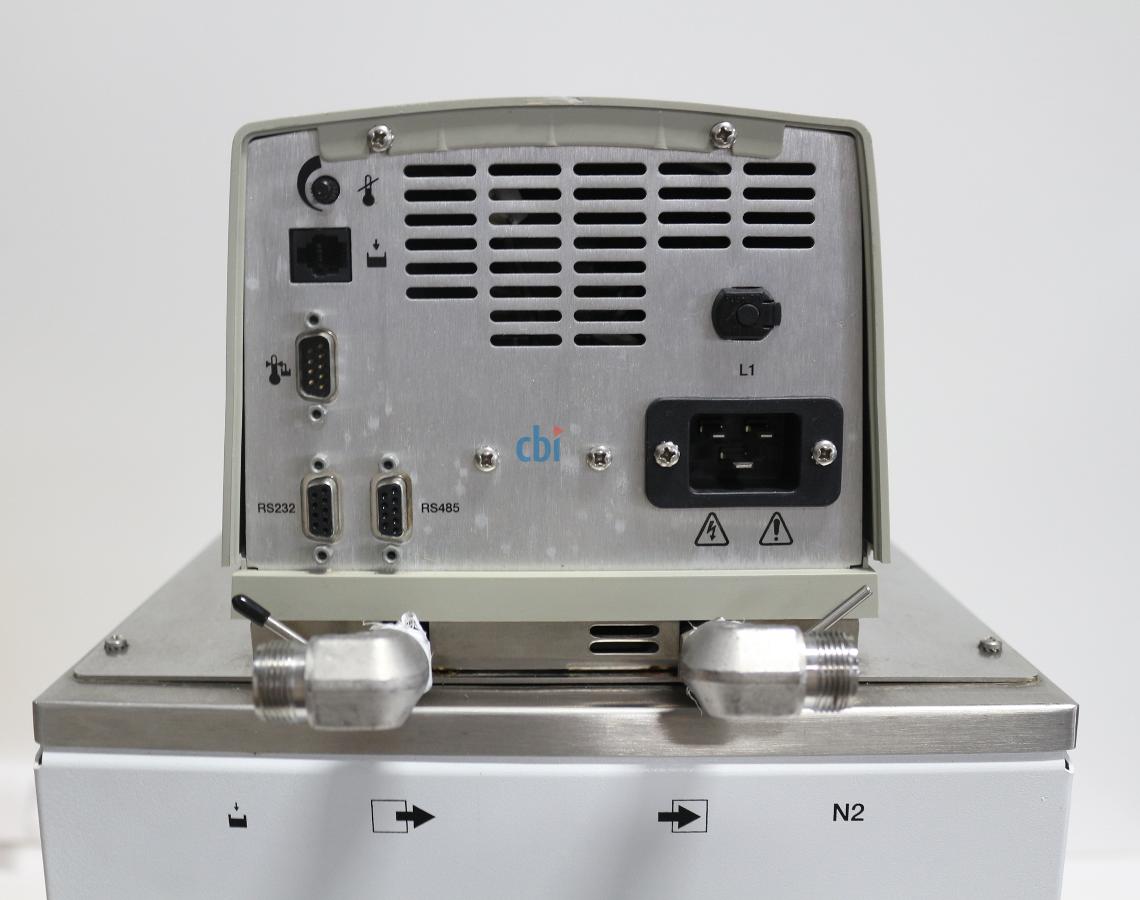

Other Information | RS232/RS485, , 1/8" Nitrogen Purge, Timer, Temperature Offset, Optional External Sensor Connector, high temperature adjustable cut off. |
Extended Description |
Details at Thermo Neslab RTE 740.pdf |
Power Requirements | 115 V
16.0 A
60 Hz
1 Phase
|
Exterior Dimensions |  |
Width | 11.500 in (29.2 cm) |
Depth | 20.500 in (52.1 cm) |
Height | 26.500 in (67.3 cm) |
Weight | 88 lb (40 kg) |
