FULL DESCRIPTION of Item 225313

in Inert Gas Ovens
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 225313

Offered 1 Offered at Best Price

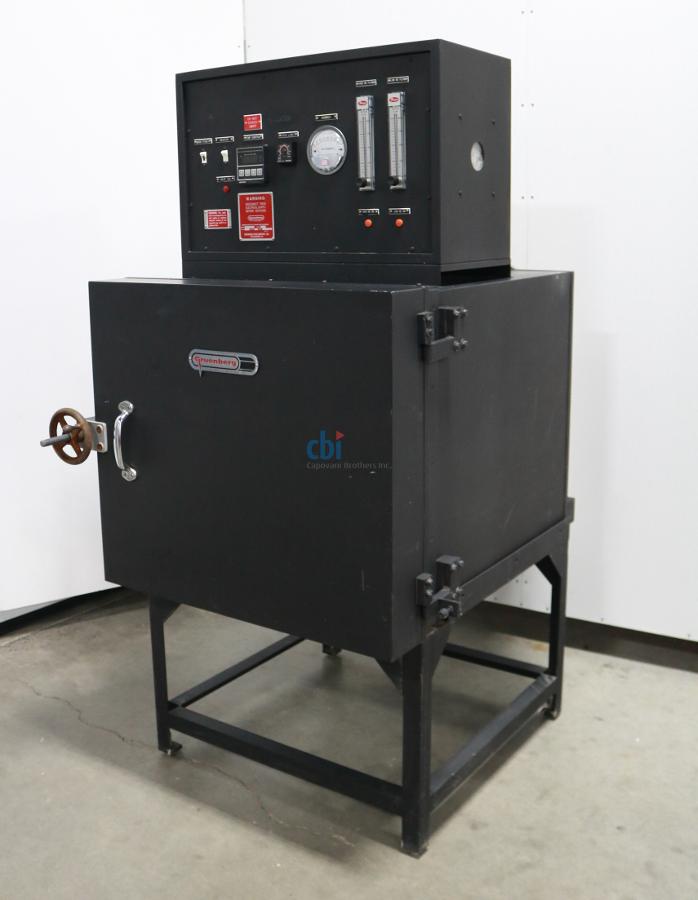

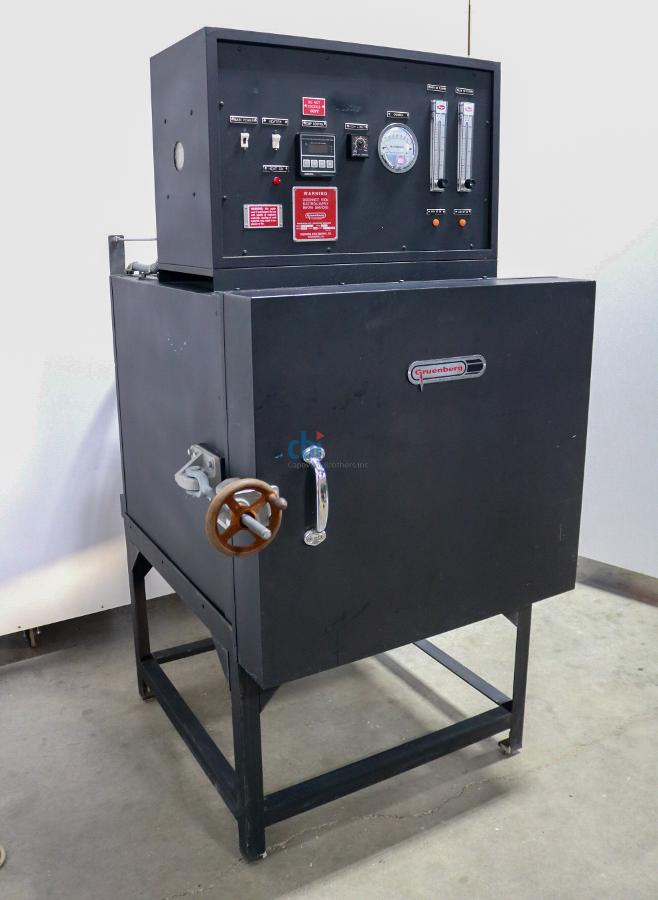

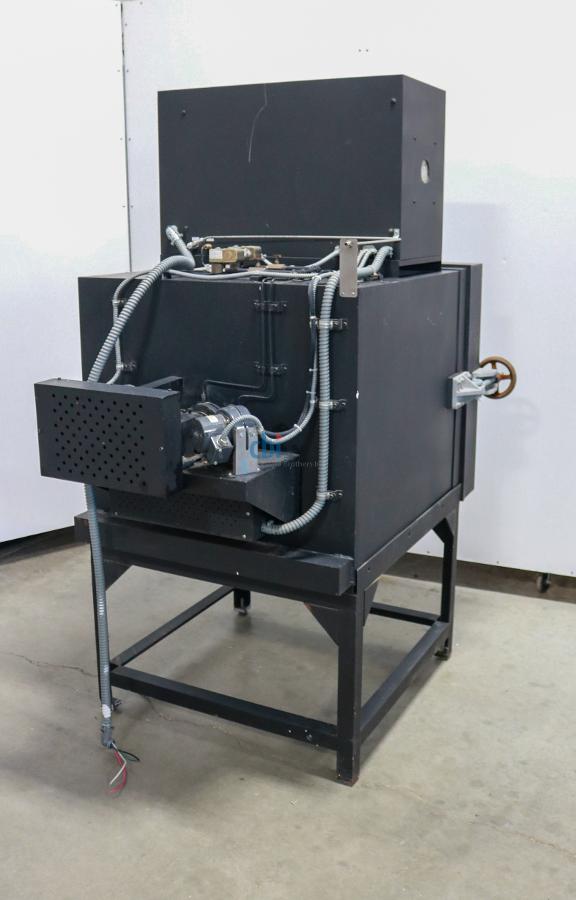

GRUENBERG INDUSTRIAL INERT GAS OVEN 1000°F 4.63 cu ft

Industrial Cabinet Inert Gas Oven

GRUENBERG INDUSTRIAL INERT GAS OVEN 1000°F 4.63 cu ft
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Gruenberg
Model B100CN46
Maximum Temperature 538  ºC  (1,000 ºF, 811 ºK)
Heat/Cool Controls
  Control Type Programmable
  Overtemperature Protection YES
  Chart Recorder None
Capacity/Volume Box 4.63  cu ft  (0.13 cu m)
Chamber Size
  Width 20.00  in  (50.80 cm)
  Depth 20.00  in  (50.80 cm)
  Height 20.00  in  (50.80 cm)
Number of Gas Inputs 1
Size of Gas Input 1/4"
Type of Flow Control Manual
Accessories

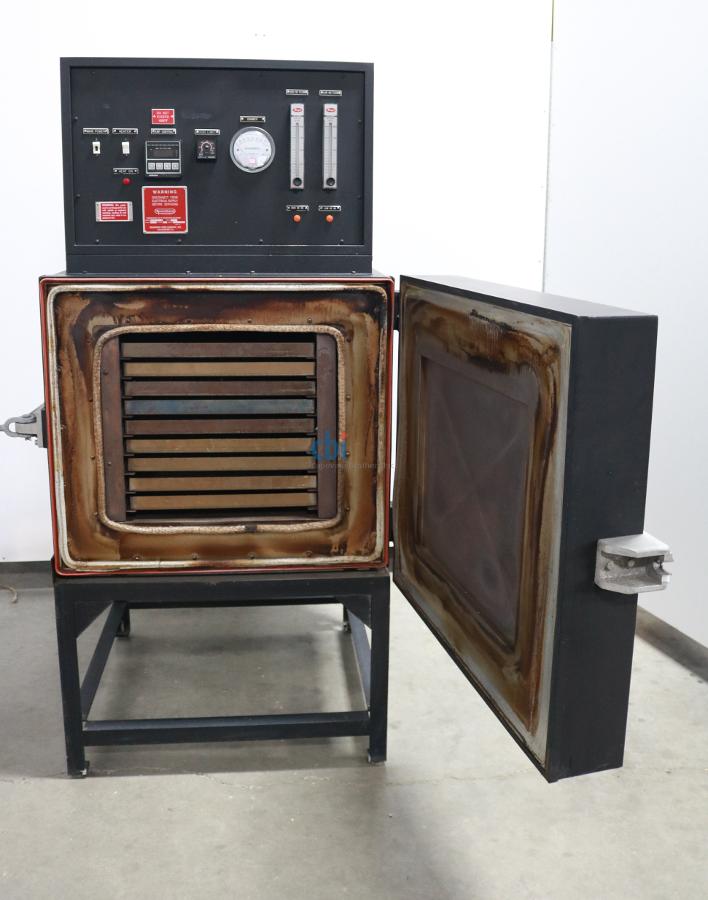

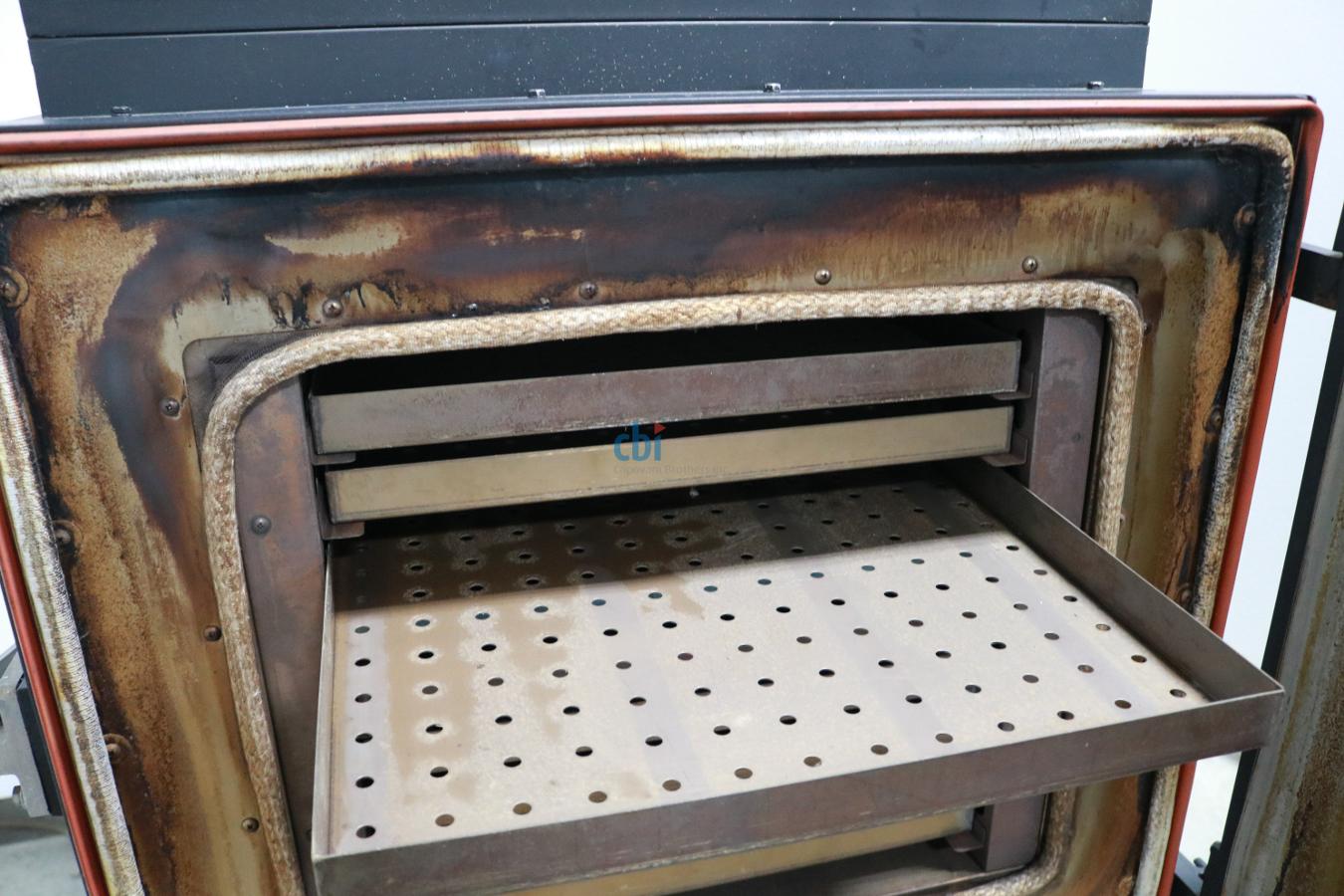

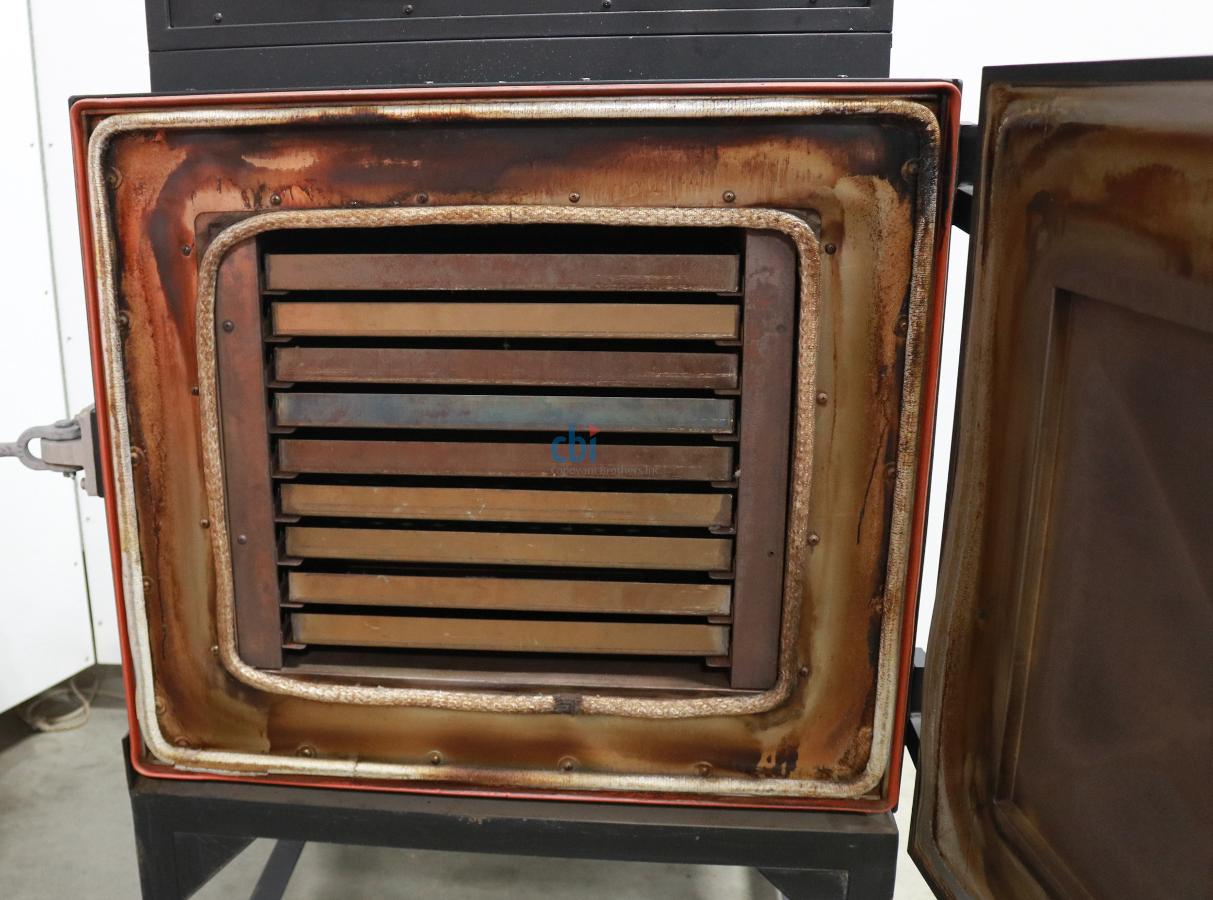

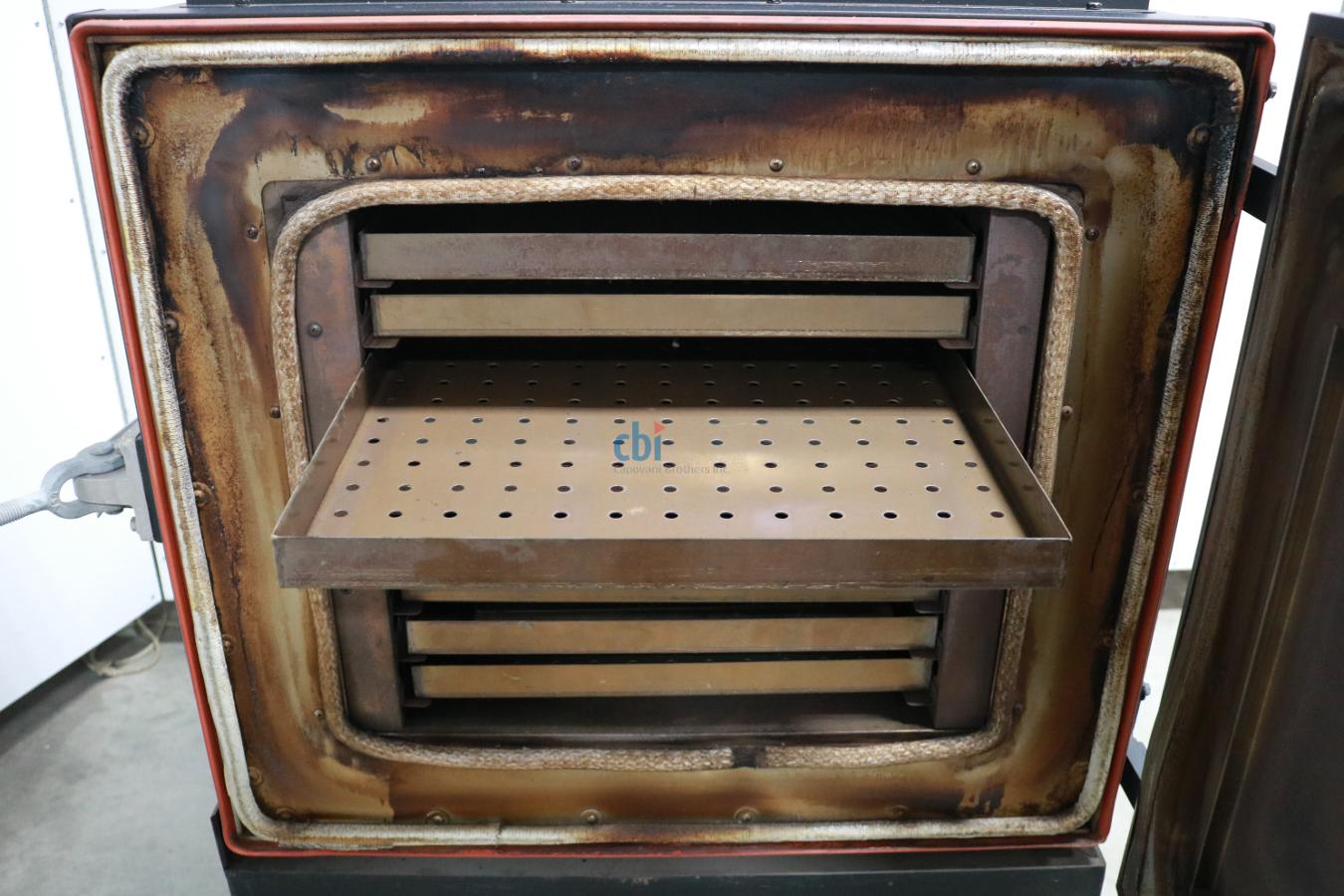

  • Contains 9 shelves

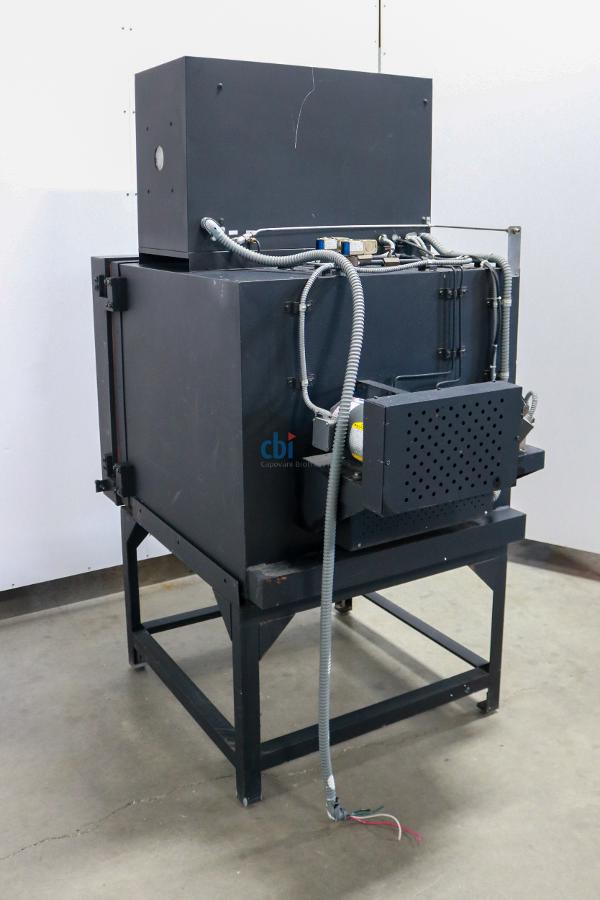

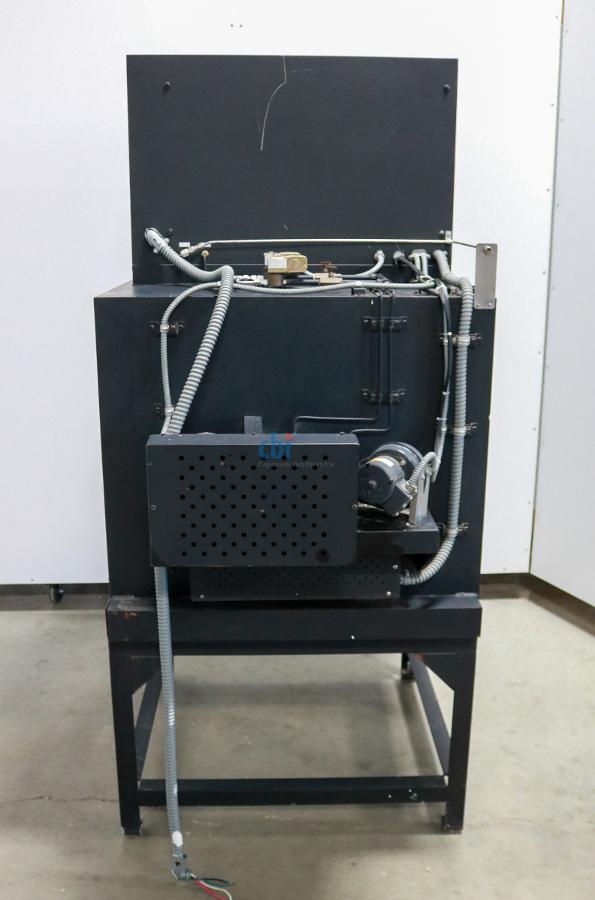

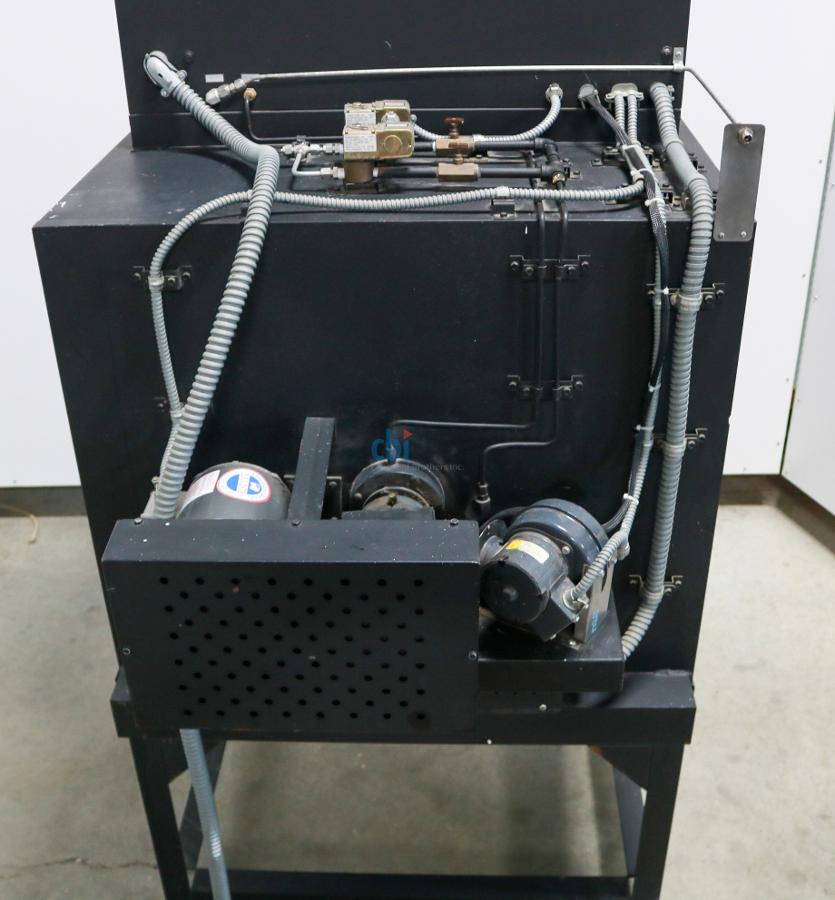

  • Circulation Fan is mounted in the rear wall plenum

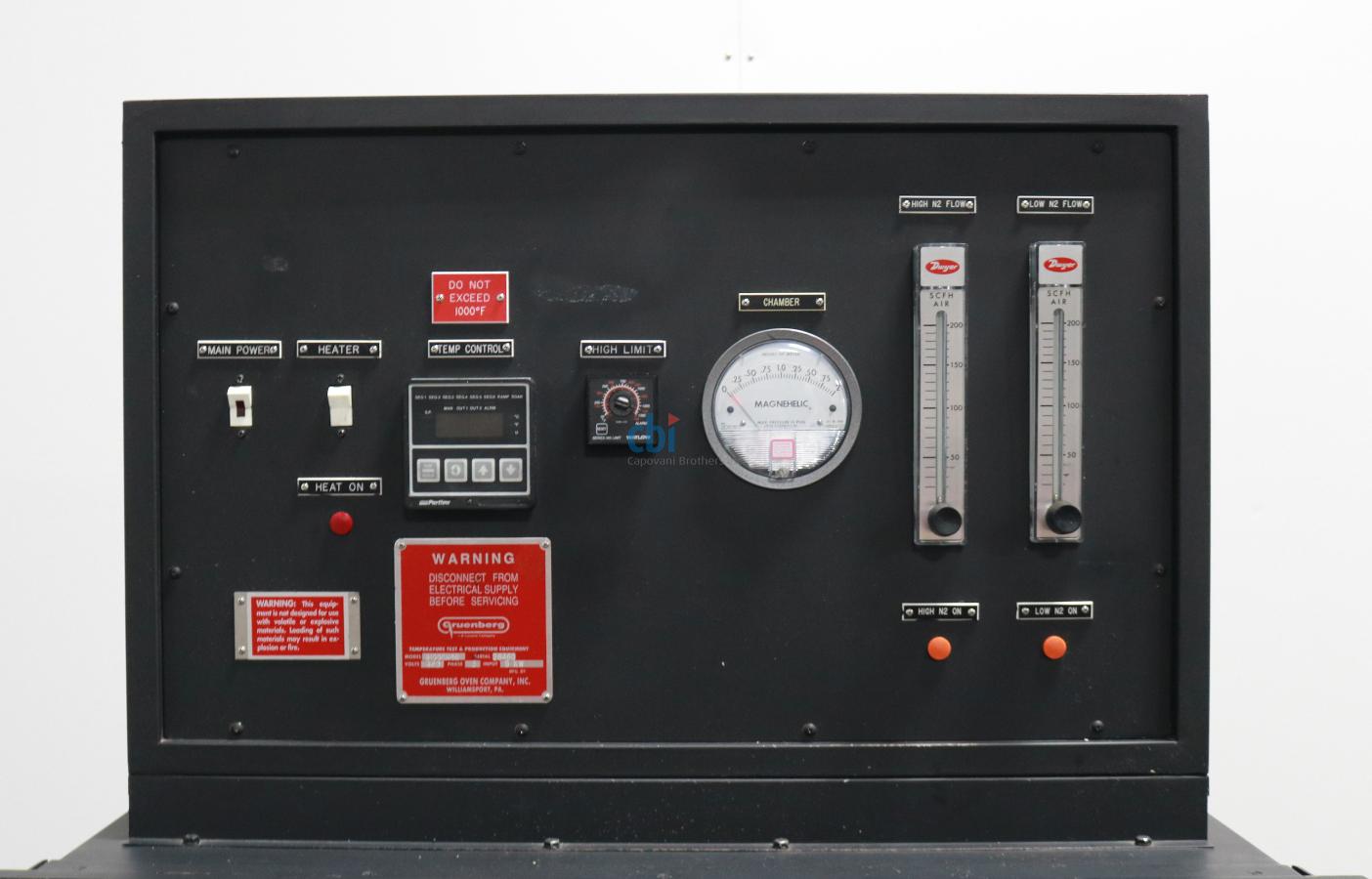

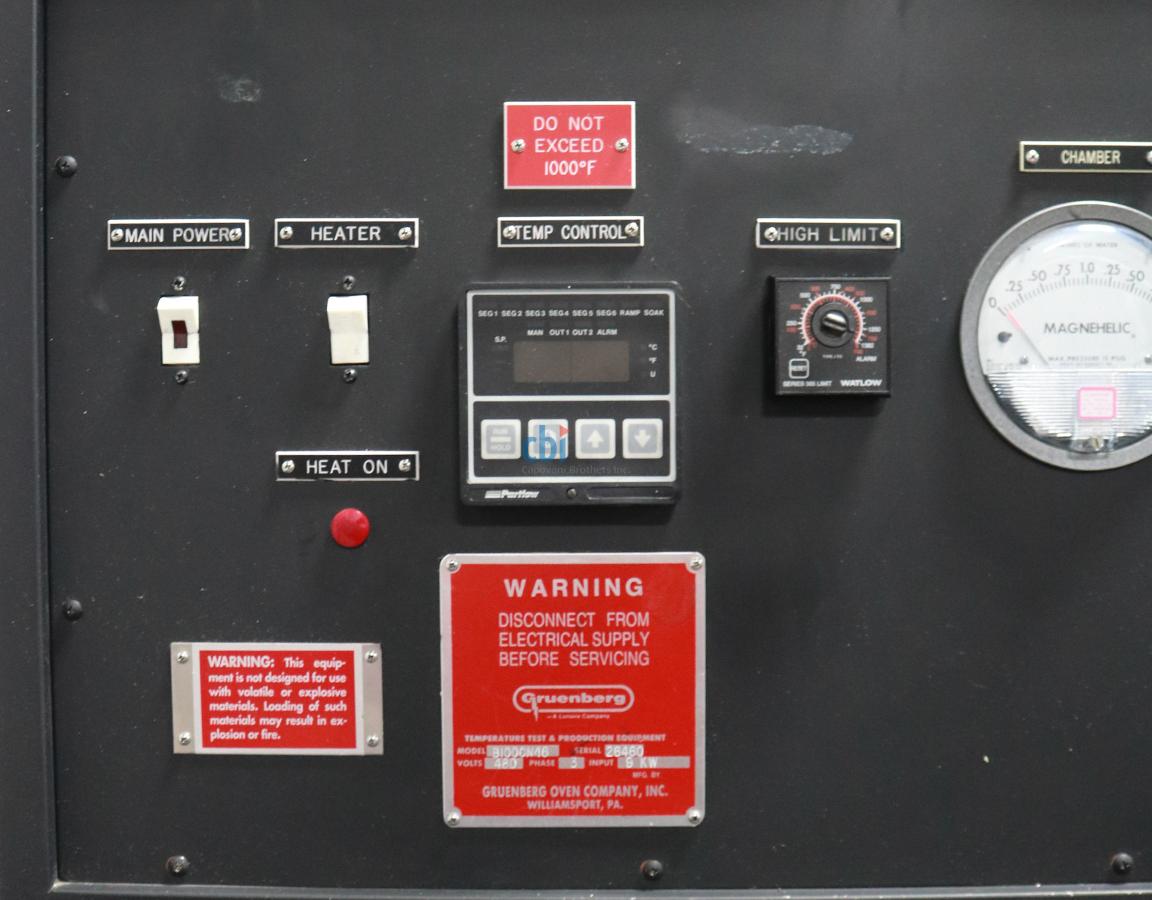

  • Partlow Temperature Controller
  • Watlow Series 385 High Limit Controller

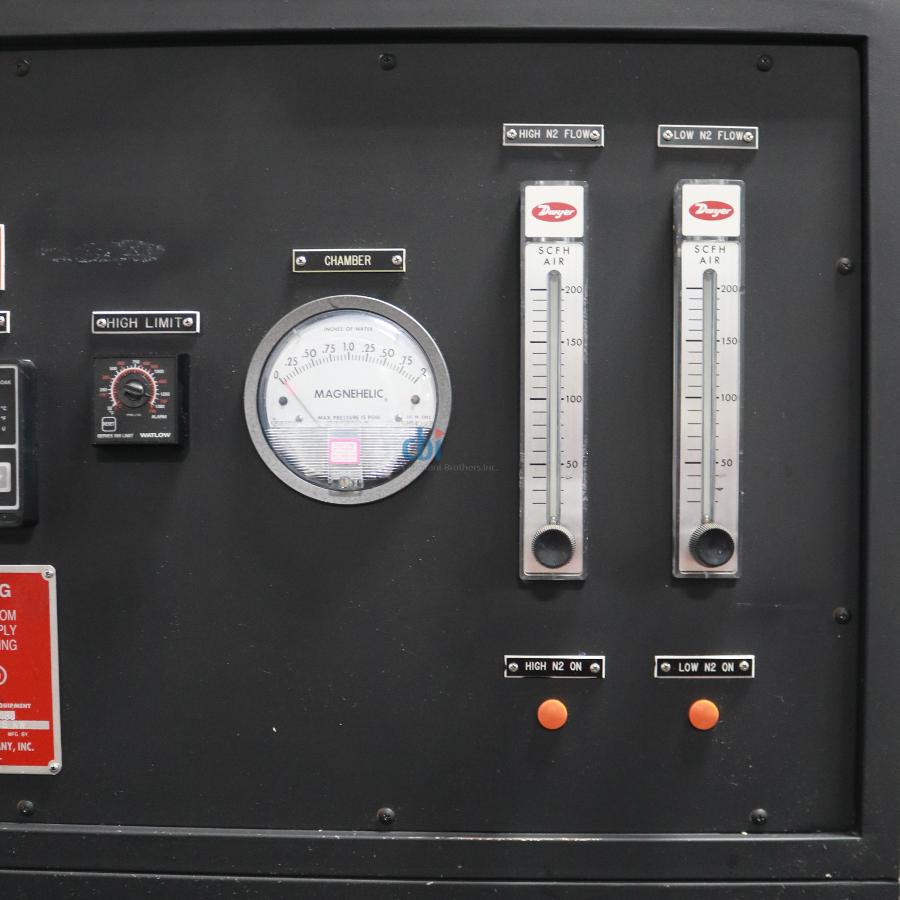

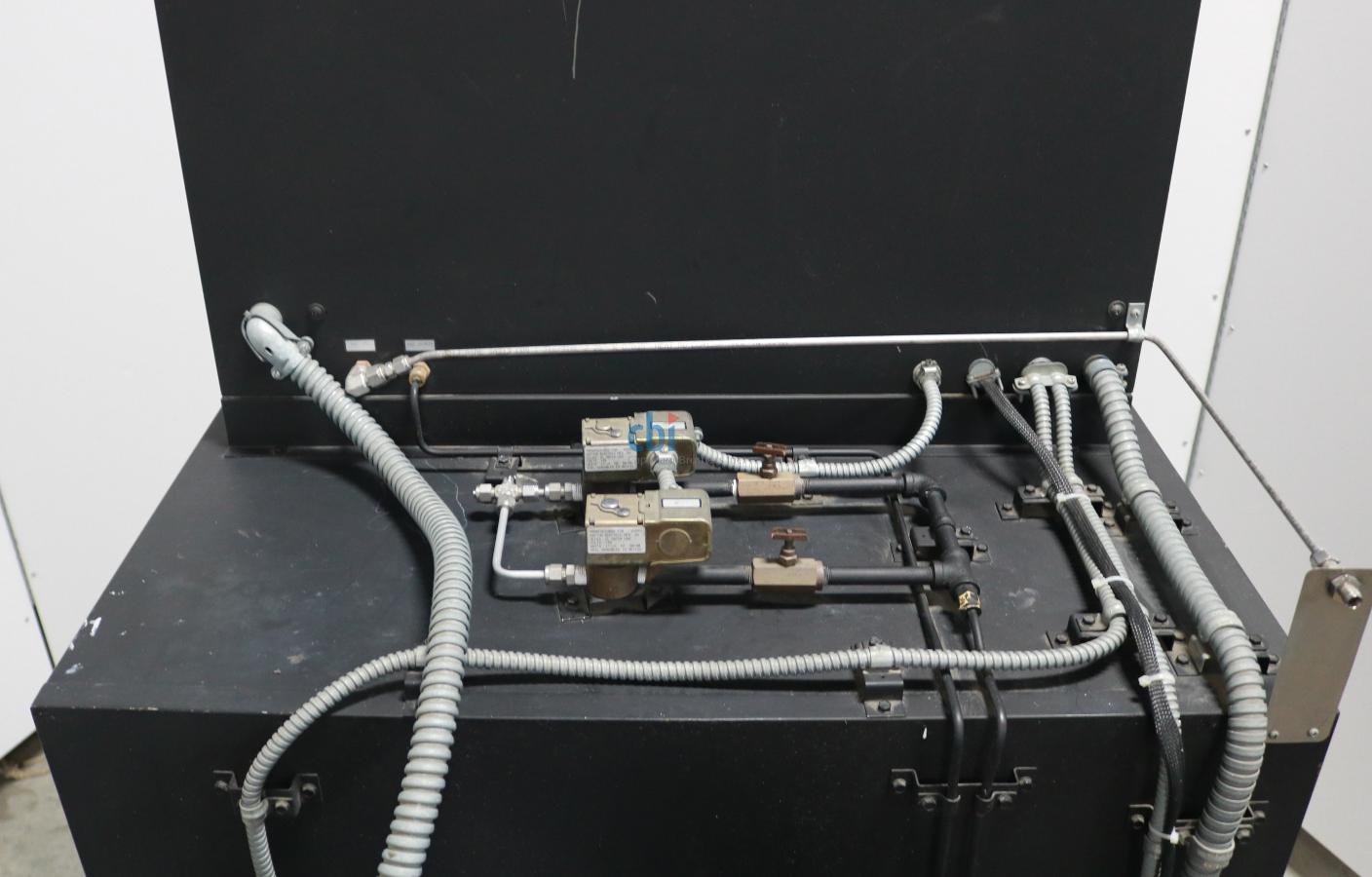

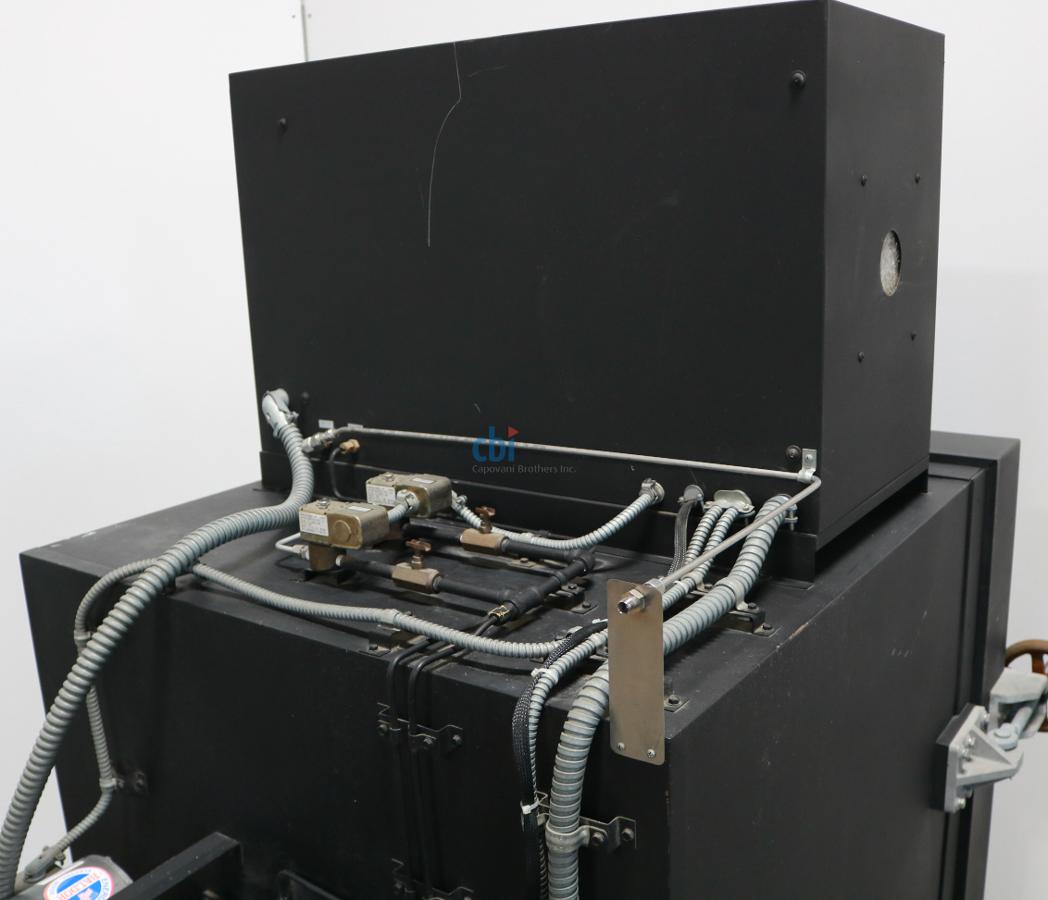

  • Adjustable High & Low N2 Flow Meters for the Nitrogen Purge System
  • Magnehelic Differential Pressure Gauge CAT. NO. 2002
Other Information

Partlow Temperature Controller: Up to 8 profiles can be programmed. Each profile can contain up to six segments. Each segment contains a ramp and a soak operation.

Magnehelic Differential Pressure Gauge: Measures 0 - 2 PSIG on the chamber.

Power Input 9 KW



Power Requirements 480 V     20.0 A     60 Hz     3 Phase
Exterior Dimensions
  Width 40.000  in  (101.6 cm)
  Depth 60.000  in  (152.4 cm)
  Height 72.000  in  (182.9 cm)
Weight 1,220  lb  (553 kg)
