FULL DESCRIPTION of Item 32928

in Vacuum Gate Valves
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 32928

Offered 5 Offered at $ 2,325.00 (each)

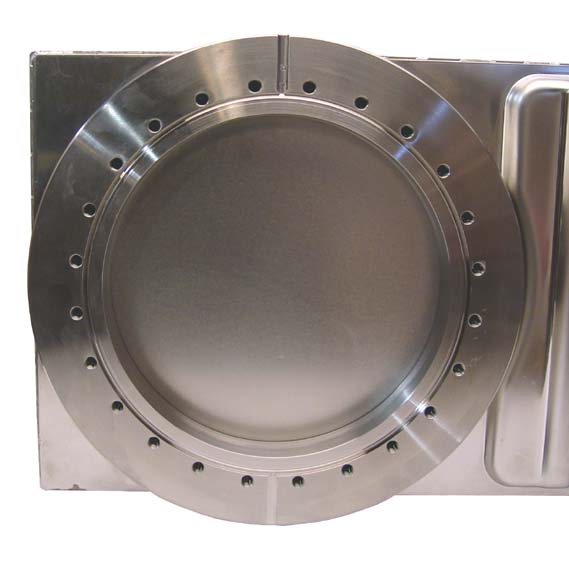

VAT GATE VACUUM VALVE CONTROL CF 8 INCH

Series 64  control Gate Vacuum Valve with 3-position pneumatics

VAT GATE VACUUM VALVE CONTROL CF 8 INCH
  Click to see additional image(s)... other image

Location: Scotia, New York
Unit Price $ 2,325.00 (each)
Number of Units 5
Manufacturer VAT
Model 64046UE48-0006
Valve Actuation Pneumatic
Flange Type Conflat
Flange Size 203.20  mm  (8.00 in)
Valve Material  Stainless Steel
Position Indicator YES
Accessories

Position Indicator with limit switches

Other Information

Valve bake-out temperature: 150°C
Pneumatic actuator bake-out temperature 50°C
Seal: bonnet and gate Viton
Valve material: 1.4301, AISI 304 stainless steel
24 bolts

Extended Description  Details at 640_1VAE.pdf
CE Marked YES
Year of Manufacture 1996
Condition Excellent
Exterior Dimensions
  Width 12.000  in  (30.5 cm)
  Depth 8.000  in  (20.3 cm)
  Height 31.000  in  (78.7 cm)
Weight 78  lb  (35 kg)
