FULL DESCRIPTION of Item 3563

in Vacuum Gate Valves
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 3563

Offered 6 Offered at $ 3,250.00 (each)

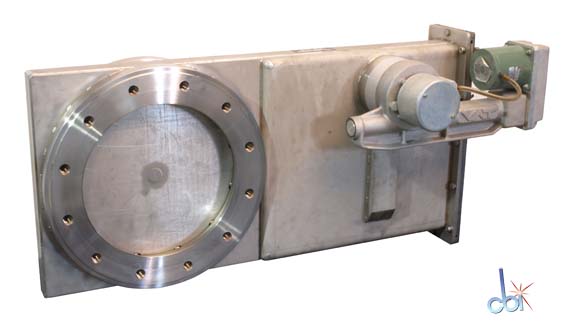

VAT Electro-Pneumatic VACUUM GATE VALVE ASA 320 MM

Electro-PneumaticVacuum Gate Valve

VAT Electro-Pneumatic VACUUM GATE VALVE ASA 320 MM
  Click to see additional image(s)... other image

Location: Scotia, New York
Unit Price $ 3,250.00 (each)
Number of Units 6
Manufacturer VAT
Model 14050-TE44
Valve Actuation Electro-Pneumatic
Flange Type ASA
Flange Size 320.00  mm  (12.60 in)
Valve Material  Stainless Steel
Position Indicator YES
Other Information

Position indicator
Valves seals:
Bonnet- Viton
Gate - Viton
Rotary feed through-Viton
Valve bakeout 150°C
Flange O.D.: 425 mm
Bolt circle 362 mm
Bolts 12 @ 3/4"

Condition Good
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 5.000  in  (12.7 cm)
  Height 41.000  in  (104.1 cm)
Weight 255  lb  (116 kg)
