in Automatic Epoxy Die Bonders
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 43059

Offered 1 Offered at Best Price


Semiautomatic Epoxy Die Bonder

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Hybond
Model EDB 140A
Description Semiautomatic Epoxy Die Bonder


  • Black & White CCTV System
  • Package depth sensor for consistent & precise bond line thickness

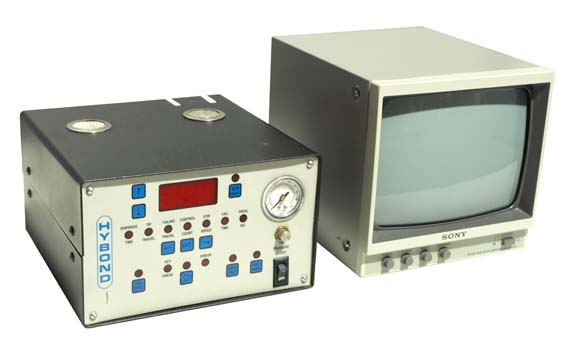

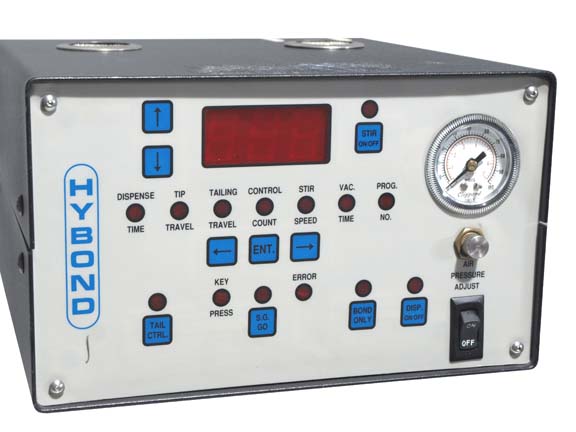

  • Programmable dispense control unit
  • Storage for up to 99 dispense programs
  • Manual X-Y alignment
  • PLC Control

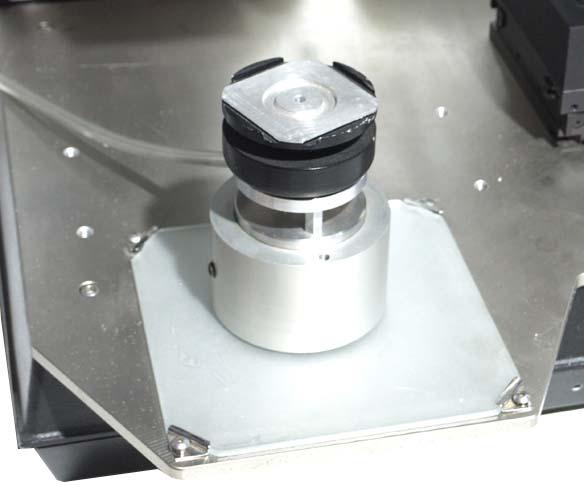

  • Waffle pack / loose die pickup pedestal

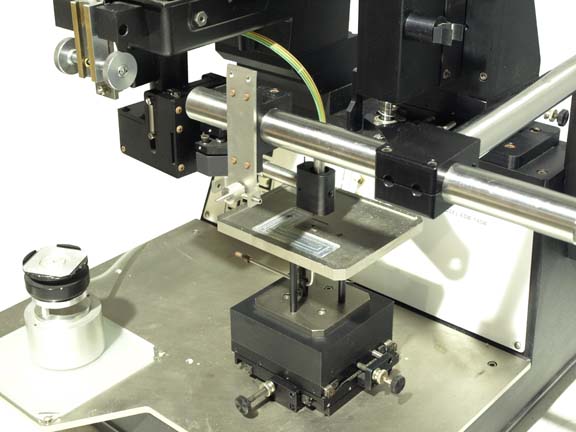

  • Pitch & Roll adjustments for bond head
  • Manual & Semiautomatic operation modes
Other Information

Dispense Materials: Epoxy. Bonder is capable of doing conductive silver glass; option not included available from Hybond
Bond Time Range: 7 to 15 seconds
Bond Force Range: 15 to 50 grams
Bondable Die Size Range: 6 x 6 mils (152 x 152 5m) to 750 x 750 mils (1,9 x 1,9 5m)
Placement Accuracy: 1 1 mil (25,4 5m) standard
Bond Line Accuracy: 1.0.5 mil (1m12,7 l5m)
Bond Head Movement: Motorized, rotational, w/ fixed pick-up and placement points
Bond Actuation: By opto-switch at fixed height. Cycle initiated by footswitch
Z Axis Travel / Vertical Bonding Window: 0.5 in (1.20 cm) / 0.125 to 0.500 in. (0,31 to 1,20 cm)

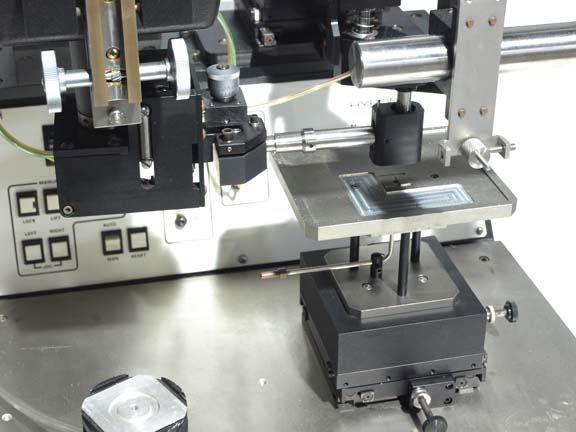

Table Motion: manual, with thumbscrew adjustments (standard)

Condition Excellent
Power Requirements 115 V     5.0 A     60 Hz     1¬†Phase
Exterior Dimensions
  Width 22.000  in  (55.9 cm)
  Depth 24.000  in  (61.0 cm)
  Height 24.000  in  (61.0 cm)

(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.
