in Positioning Controllers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 43661

Offered 2 Offered at $ 2,820.00 (each)

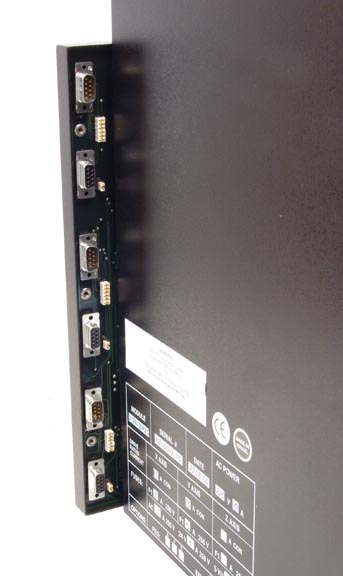

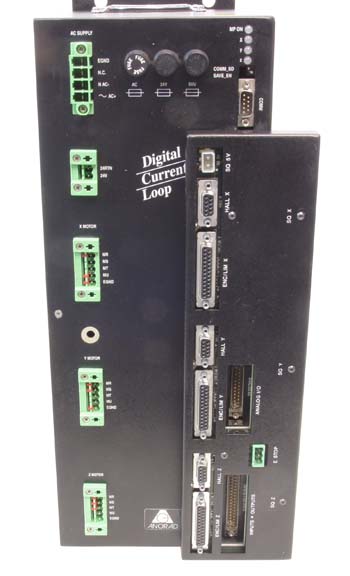

Servo Controller

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 2,820.00 (each)
Number of Units 2
Manufacturer Anorad
Model DLM2-5
Description Servo Controller

Two axis digital control module
Integral digital current loop
Amplifier and power supply

Other Information

Three axis
Position range: ± 999,999,999 counts
Velocity range: ± 1 to 10,000,000 counts/sec
Acceleration range: 1,000 to 127,000,000 counts/sec2
Servo Update Rate: 20 kHz Encoder input: 3 channel differential line receiver
Communication: RS232,RS422,programmable to 9,600 baud
Analog Inputs: ± 10V, 12 bit resolution, 2/axis (M-SERV) ± 10V, 12 bit resolution, 1/axis
Analog Outputs: (1) ± 10V, with 10 bit resolution/axis, (1) General purpose Dedicated
Inputs:(2) limits, emergency stop, opto-isolated. (48) inputs
Digital Inputs:(8) single axis, (16) multi axis, opto-isolated. (48) inputs
Digital Outputs:(8) single, (16) multi axis, opto-isolated, supported by a built-in 24V opto-isolated supply, (0.5A).

Power Requirements 120/240 V     50/60 Hz     1¬†Phase
CE Marked YES
Condition Very Good
Exterior Dimensions
  Width 7.250  in  (18.4 cm)
  Depth 11.000  in  (27.9 cm)
  Height 16.000  in  (40.6 cm)
Weight 20  lb  (9 kg)
