FULL DESCRIPTION of Item 47486

in Other Meters
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 47486

Offered 1 Offered at Best Price

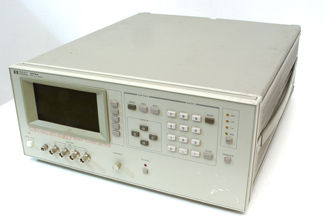

HEWLETT PACKARD P C-V METER

C-V Meter - 1 MHz

HEWLETT PACKARD P C-V METER

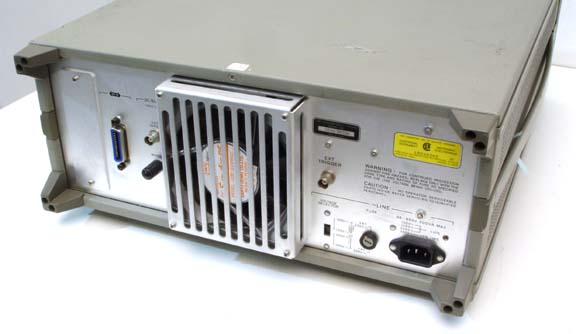

  Click to see additional image(s)... other image

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Hewlett Packard
Model 4279A
Description 1MHz C-V Meter
Interface IEEE 488-GPIB
Other Information

Features

  • C-V measurement for performing doping profile of wafers.
  • C-V characterization and sorting of varactor diodes.
  • Capacitance testing of rf mixer and switching diodes.
  • Testing capacitors with an applied DC bias for incoming inspection.
  • Measurement Time: 10ms/20ms/30ms
  • Measurement Accuracy: 0.1% (20ms)
  • Internal DC Bias: 0 to +/-38V, 0.1% programmable sweep
  • Measurement Range: 0.00001pF to 1280pF

https://www.keysight.com/us/en/support/4279A/1mhz-cv-meter.html



Condition Very Good
Exterior Dimensions
  Width 16.750  in  (42.5 cm)
  Depth 20.750  in  (52.7 cm)
  Height 7.000  in  (17.8 cm)
Weight 31  lb  (14 kg)
