in Rotary Vane Pumps
Deal directly with Owner:  Catalyst Equipment Corporation of Plano, Texas
Item ID: 47799

Offered 1 Offered at Best Price

Ebara Series 40x20

Dry Mechanical Vacuum Pump
Ebara Series 40x20

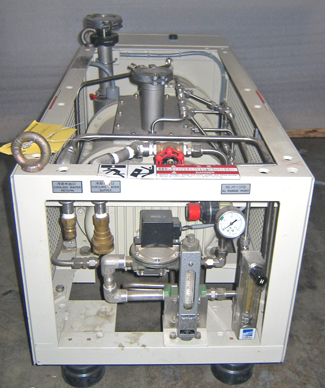

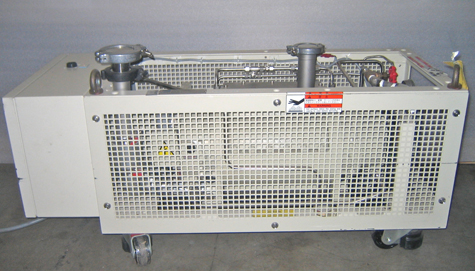

  Click to see additional image(s)... other images

Location: Plano, TX
Unit Price Unstated
Number of Units 1
Manufacturer Ebara
Model Series 40x20
Dry Pump YES
Pumping Speed 42.2  CFM  (1,192.5 l/m)
Ultimate Pressure  3.00E-2(En)  torr  (4.00E-2 mbar)
Duty--Service Normal
Motor Horsepower 3  HP
Rotational Speed 3,460 RPM
Oil Type Fomblin TM
Other Information
  • Pumping Speed: 42 cfm
  • Ultimate Pressure: 50Hz/60Hz –0.040/ 0.030 Torr
  • 5 Pump Stages
  • Motor Rating: 50Hz / 60Hz – 3,460 RPM, 3 HP
  • Electrical Requirements: 50Hz – 200 VAC 60Hz – 200-220 VAC, 3 Phase, 40 Amp
  • Cooling Water Requirements: 1.3 - 2.1 GPM at 60 PSI, Max. Temp. 30C
  • Dimensions 39.3” x 16.1” x 19.2” weight 440 lbs
Condition Good
Power Requirements 220/440 V     15.0 A     50/60 Hz
