FULL DESCRIPTION of Item 58212

in Ellipsometers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 58212

Offered 1 Offered at Best Price

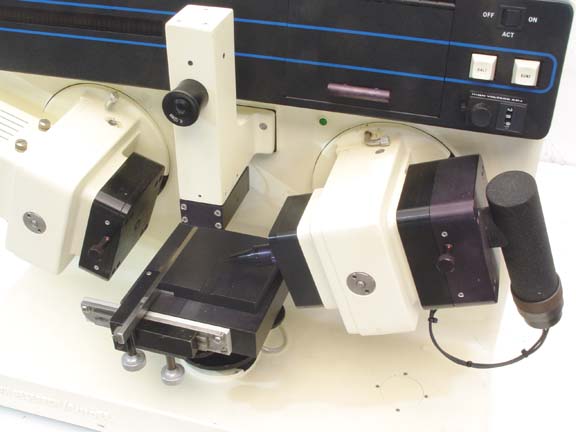

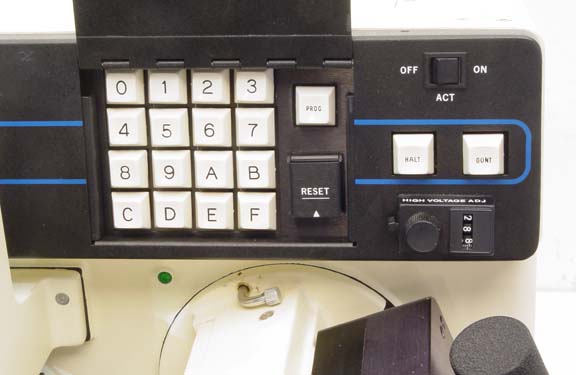

RUDOLPH RESEARCH ELLIPSOMETER 150MM

Ellipsometer

RUDOLPH RESEARCH ELLIPSOMETER 150MM
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Rudolph Research
Model AUTO EL RE-350
Wafer Size Range
  Maximum 150 mm
Other Information

Max sample size: 6" x 6"
Resolution & accuracy:
Polarizer or analyzer: 0.05°
Delta: 0.1°
PSI: 0.05°
Measuring time:
Single film: 15 seconds
Double film: 20 seconds
Sample stage:
X-Y-Z
Vacuum hold down
Illumination source: Pre-focused halogen bulb

Year of Manufacture 1990
Power Requirements 115 V     50/60 Hz     1 Phase
Exterior Dimensions
  Width 29.000  in  (73.7 cm)
  Depth 21.000  in  (53.3 cm)
  Height 17.000  in  (43.2 cm)
Weight 86  lb  (39 kg)
