Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 90869

Offered 1 Offered at Best Price

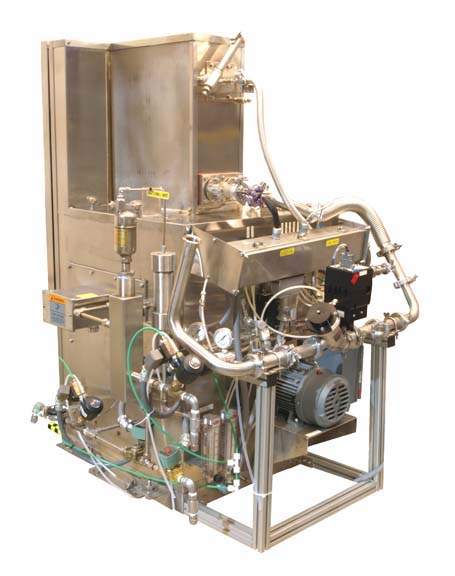

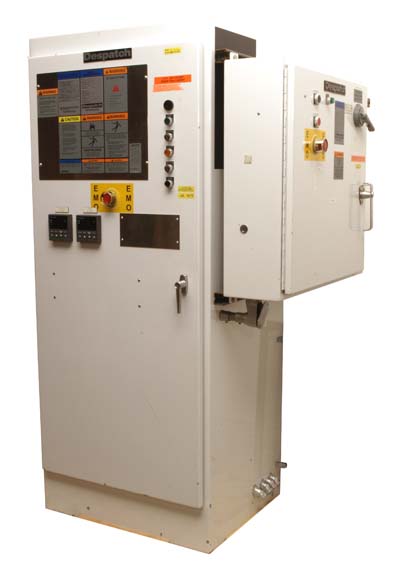

Magnetic Vacuum Annealing Oven
Thin Film Head/Hard Disc Manufacturing tool

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Despatch
Model MT300
Description Magnetic Annealing Oven
Maximum Temperature 300  ºC  (572 ºF, 573 ºK)
Temperature Control
  Control Stability ± 0.500 ºC
Heat/Cool Controls
  Control Type Programmable
  Chart Recorder None
  Controller Manufacturer/Model Honeywell UDC 2000

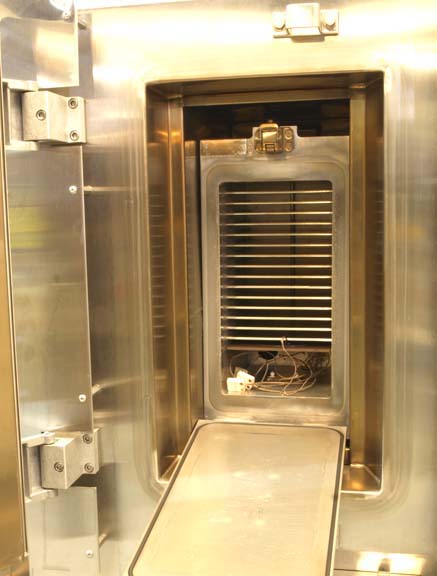

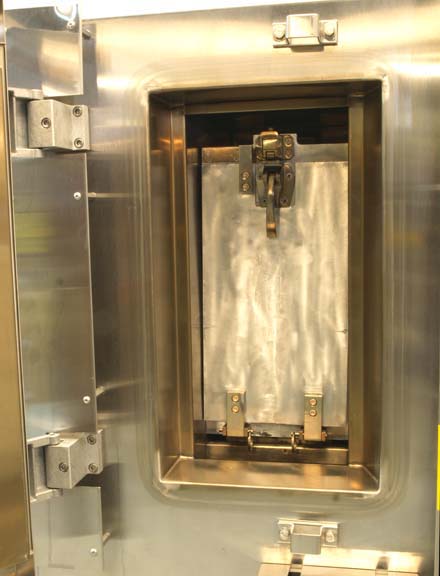

Chamber Size
  Width 6.25  in  (15.88 cm)
  Depth 12.25  in  (31.12 cm)
  Height 9.00  in  (22.86 cm)
Chamber Characteristics
  Chamber Construction Stainless Steel
  Maximum Number of Shelves 15
  Number of Shelves Provided 15
External Cooling Water Cooled
Other Information

Handles 3" to 6" wafers
15 wafers maximum
Variable heat soak
Solvents allowed: none
Heater: electric
Heater capacity: 15kW
Heater: 42 amp
Total amps 68FLA
Control voltage 120-1-60

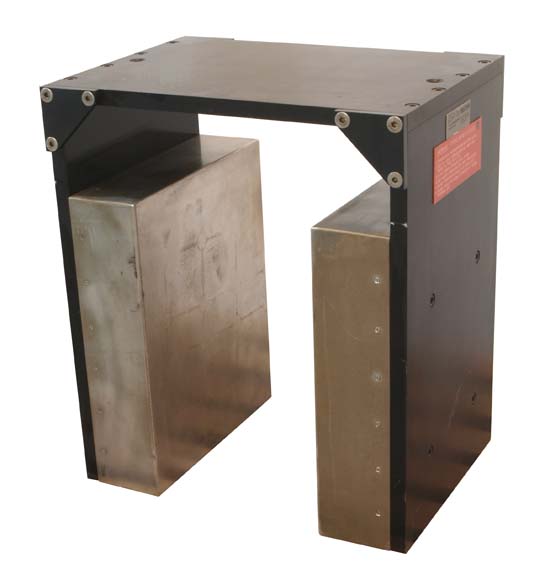

Dexter Permanent Magnet Part no. PMW97-0514-1, Field Strength: 250 gauss
Shelf dimensions: 6.25 x 6.25"
Vacuum 10-5 Torr as configured

Power Requirements 208 V     68.0 A     60 Hz     3 Phase
Year of Manufacture 1998
Condition Very Good
