Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 98184

Offered 1 Offered at Best Price

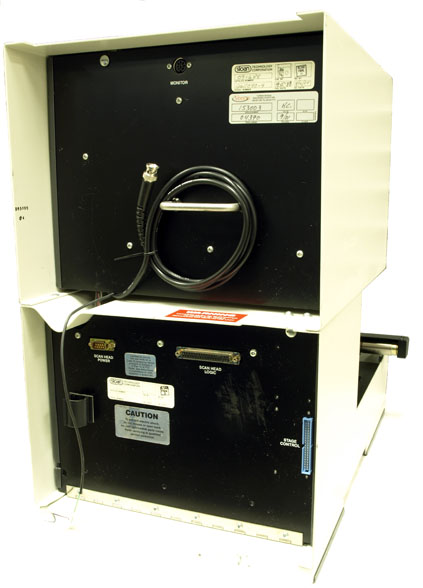

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Veeco

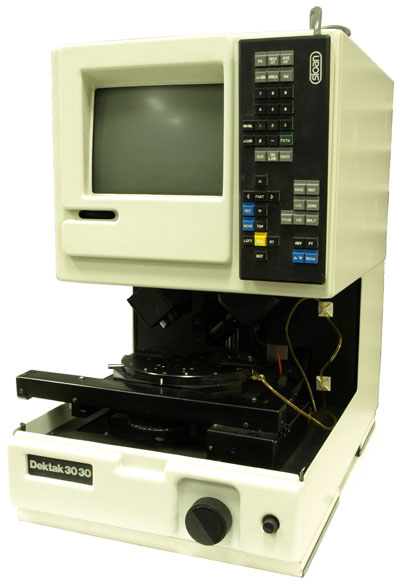

Model Dektak 3030 Auto II
Description Profilometer
Controller Type Microprocessor Controller Type

Thermal printer is included

Environmental shield is not included

Other Information
  • Measuring Range: 100Å to 1310kÅ
  • Scan Speed Range: Low, Medium, High
  • Vertical Resolution: 1Å in the 65kÅ range, 10Å in the 655kÅ range, 20Å in the 1310kÅ range
  • Data Points per micron: 0.04-- 40
  • Scan Length 50 microns to 50 mm
  • Leveling: 2 point programmable or cursor leveling
  • Maximum sample thickness: 1.75 inches

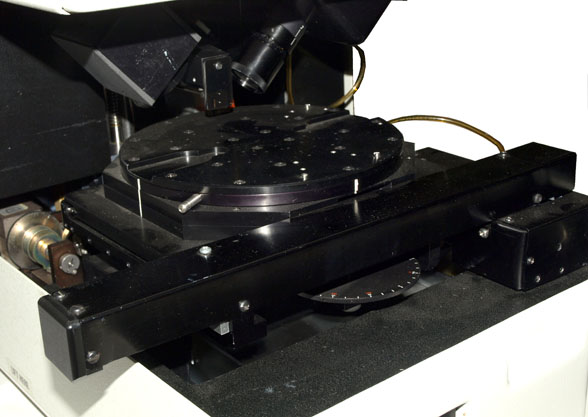

  • Motorized stage
  • Sample stage diameter: 6.375 inches
  • Sample stage translation (from center): X Axis, ±3 inches, Y Axis -3 inches
  • Stylus 12.5 micron radius (other sizes are optional)

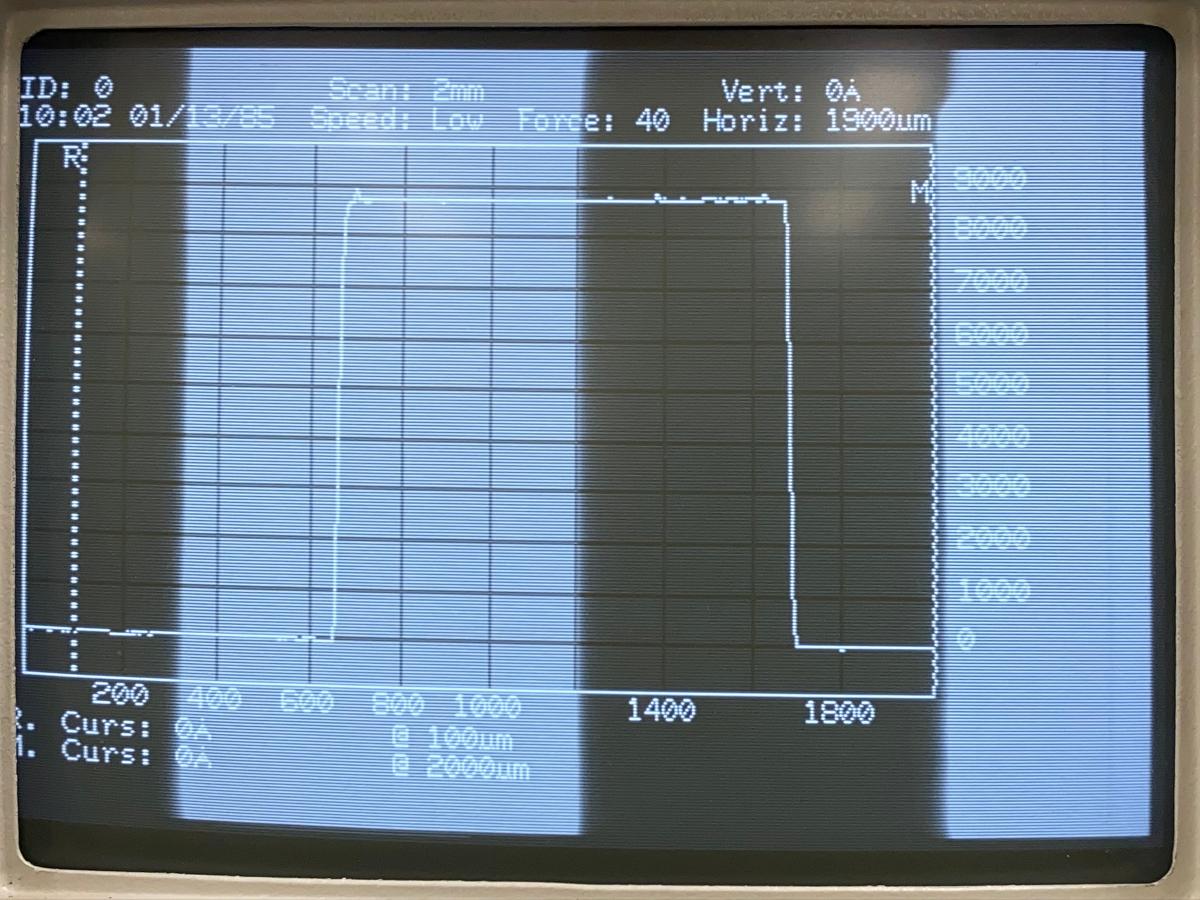

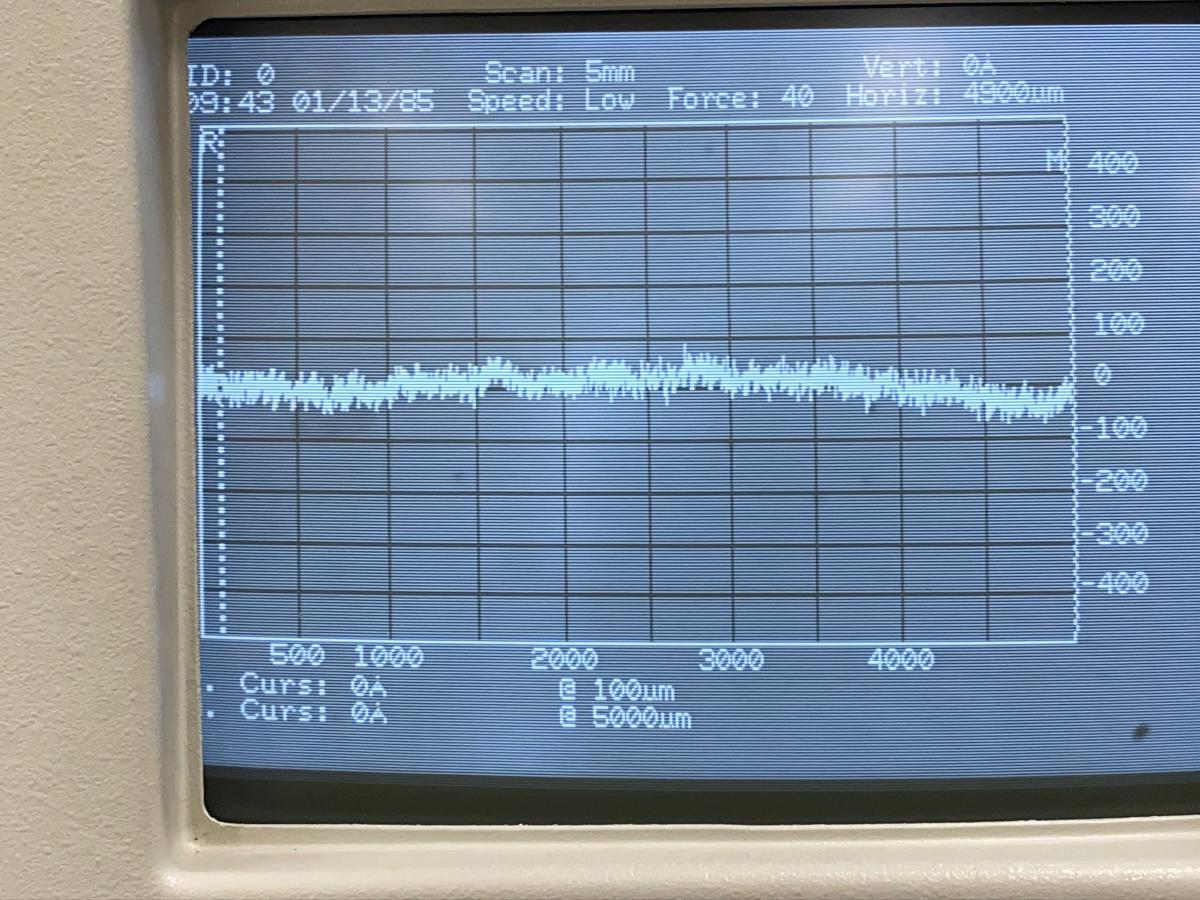

Unit is tested, see additional images 5 and 6 for sample scans

Power Requirements 120 V     2.0 A     50/60 Hz     1¬†Phase

(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.
