Item ID: 24564

**1 Offered at Best Price**

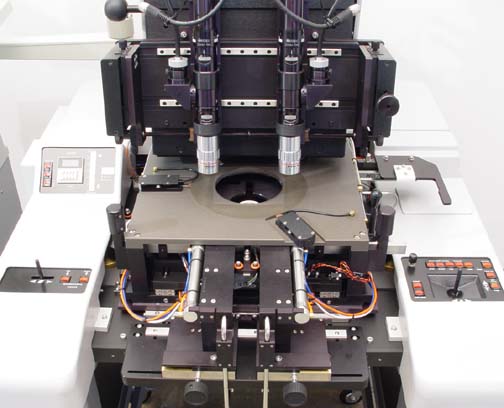

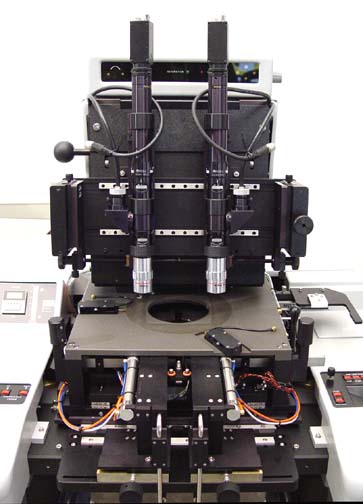

QUINTEL-NEUTRONIX MASK ALIGNER 200 MM

Mask Aligner with IR Backside Alignment

Quintel acquired by Neutronix

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Quintel
Model	UL 7000 IR
Wafer Size Range
Minimum	50 mm
Maximum	200 mm
Set Size	100 mm
Mask Plate Size	5'' x 5''
Alignment Optics	Splitfield Video
Proximity Alignment Capability	YES
IR Backside Alignment	YES
Illuminator Model Number	Q-500
Illuminator Power Rating	500 Watts
External Cooling	Air Cooled

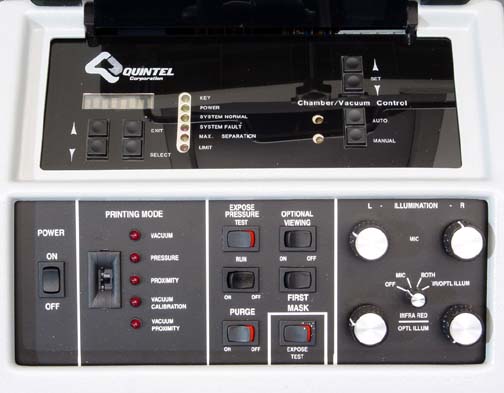

Other Information	Split field video with MPLAN APO 5X objectives Print Modes: Vacuum Pressure Proximity Vacuum calibration Pressure calibration
Condition	Like New
Year of Manufacture	2001
Power Requirements	120/240 V 50/60 Hz 1 Phase
CE Marked	YES
Weight	1,134 lb (514 kg)

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).

Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.

Domestic Terms and Conditions

International Terms and Conditions

FULL DESCRIPTION of Item 24564
