| Disk-Drive: | Direct-Drive |
| Dose-Type: | Regular |

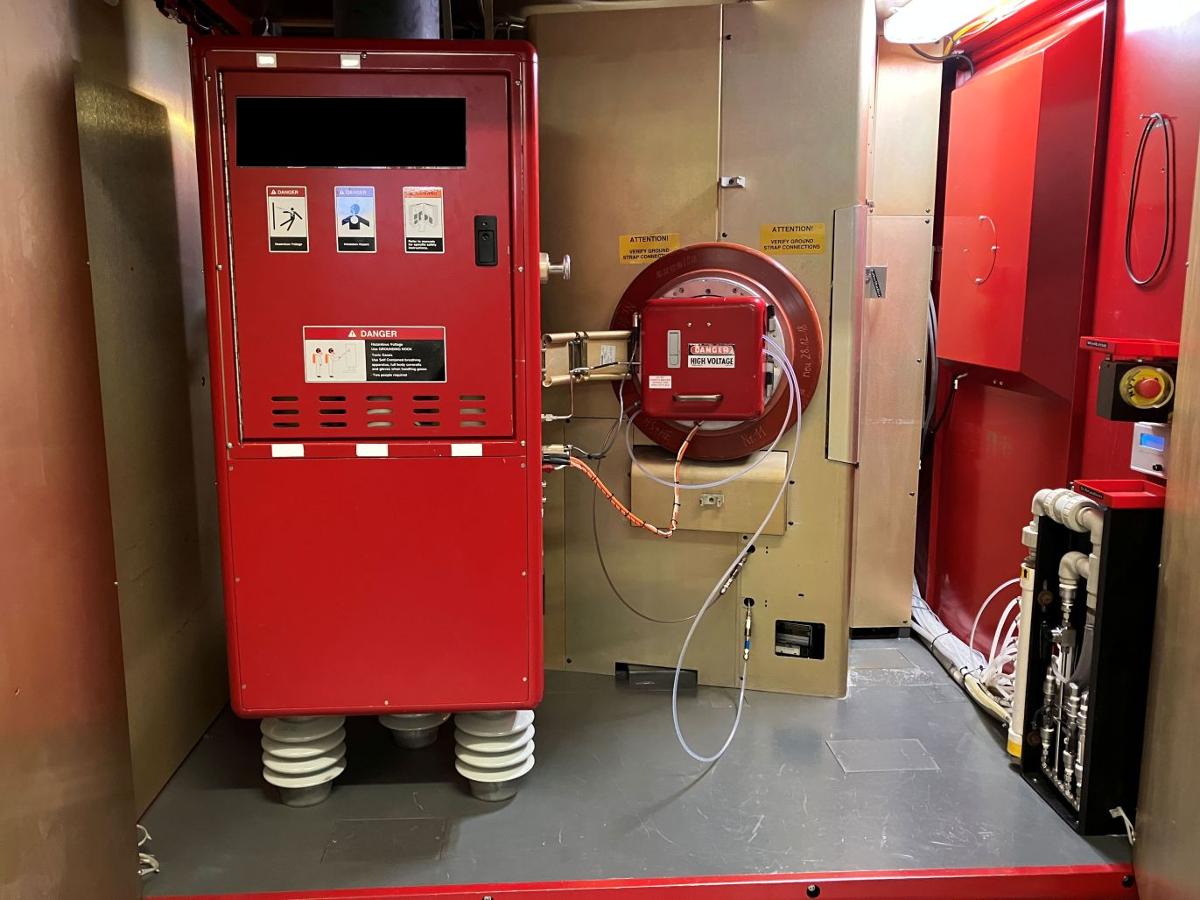

| Source-Type: | ELS4 IHC-Source without Vaporizer |
| Highvoltage-Transformer: | both Oil |
| Light-Tower: | red/yellow/green; no buzzer |

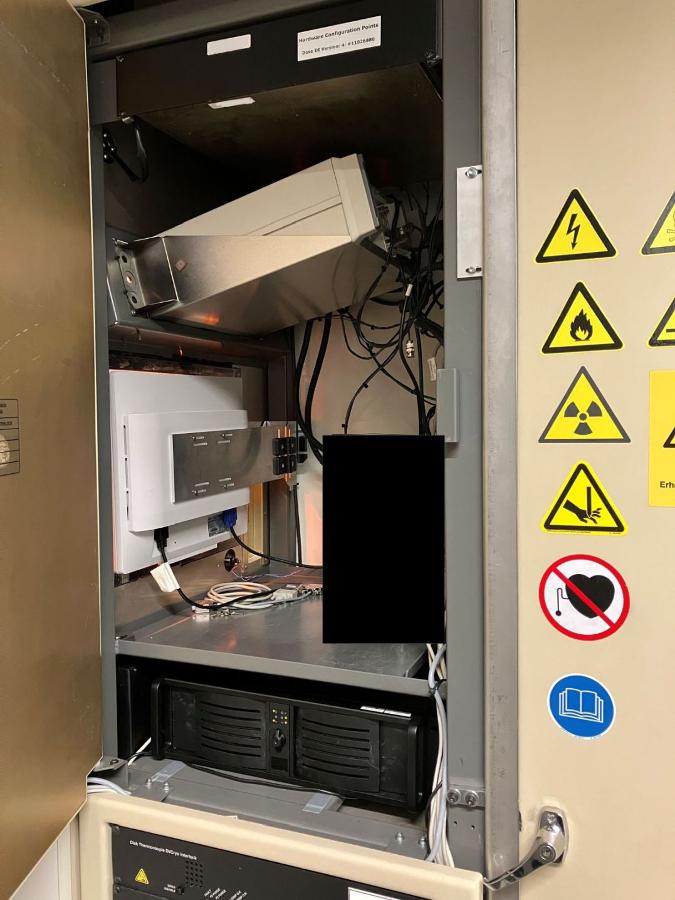

| Main-Workstation | SUN Solaris AXI 3HE (special case) |

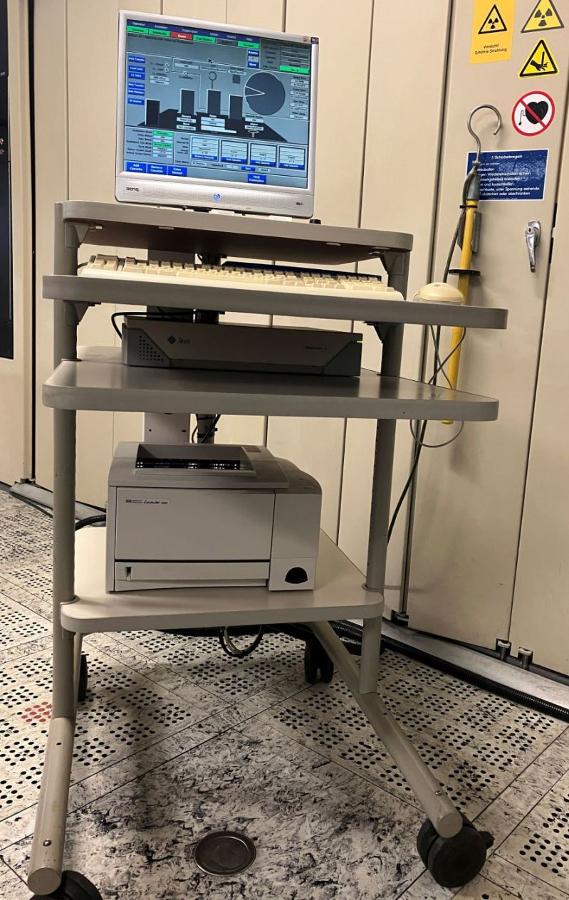

| Second-Workstation | SUN Sparc5 on cart with printer |

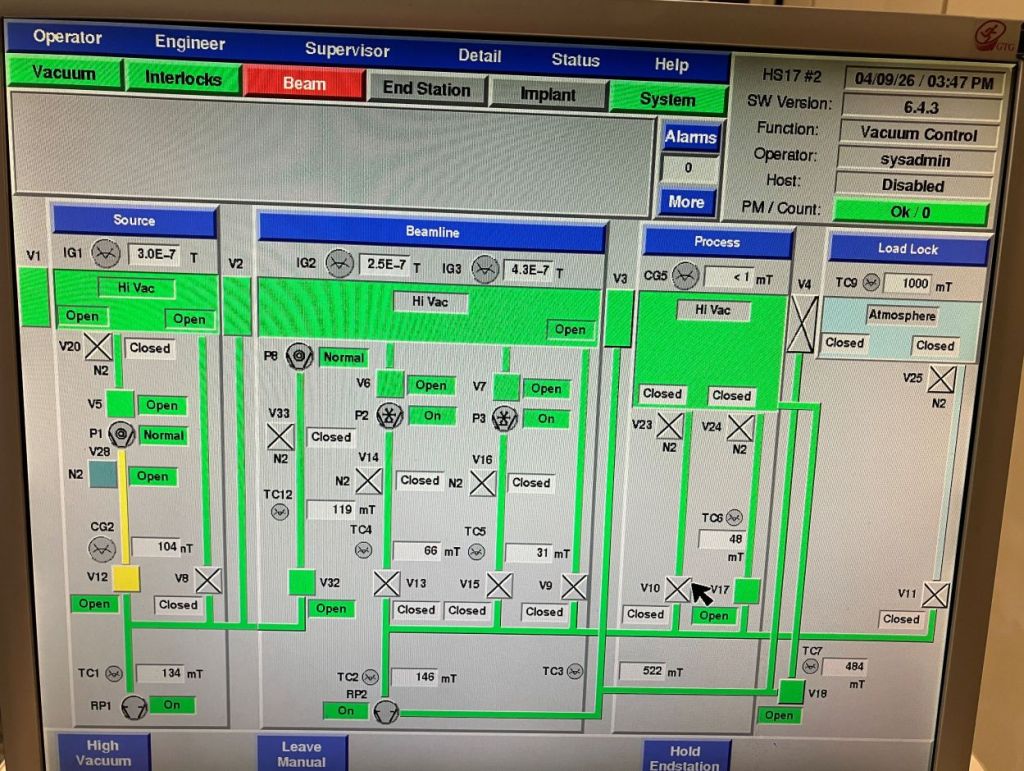

| Software-Version: | 6.4.3 (no license included) |
| Network: | 24port 100MB Ethernet with Cisco Router-Kit |

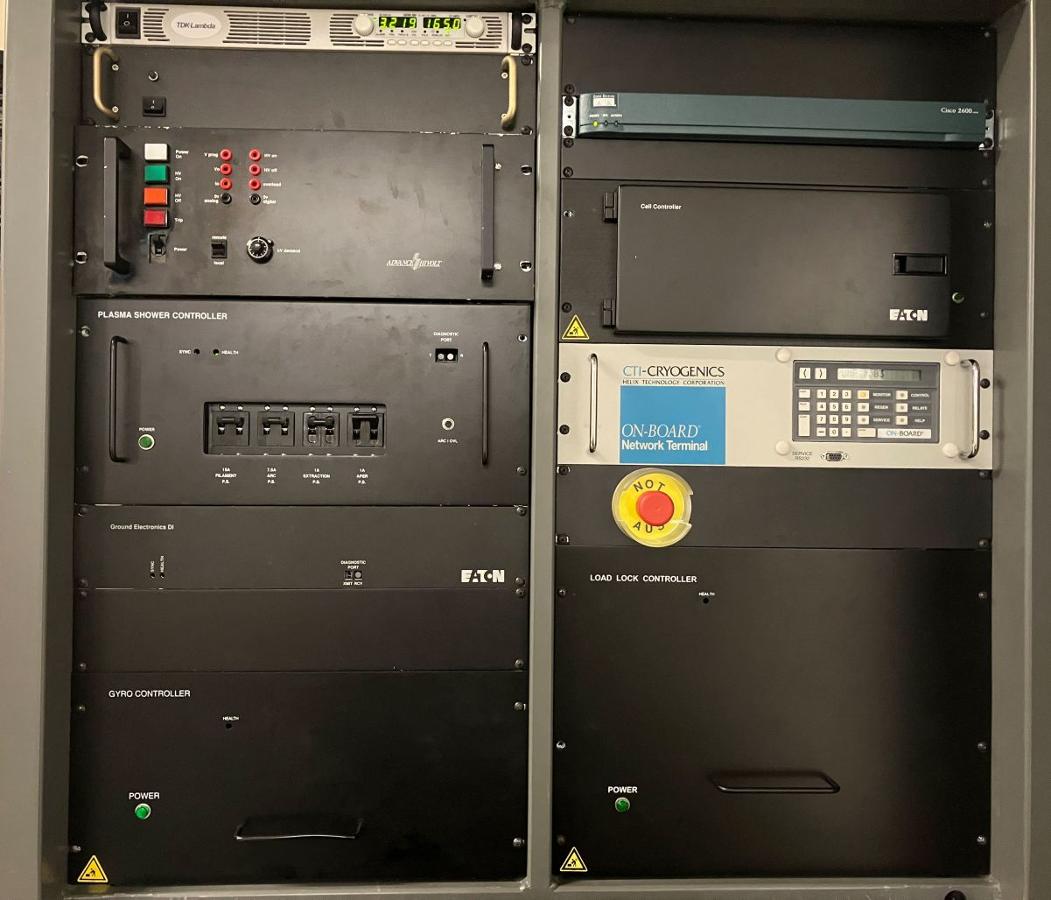

| Cell-Controller: | 177 Cell Type |

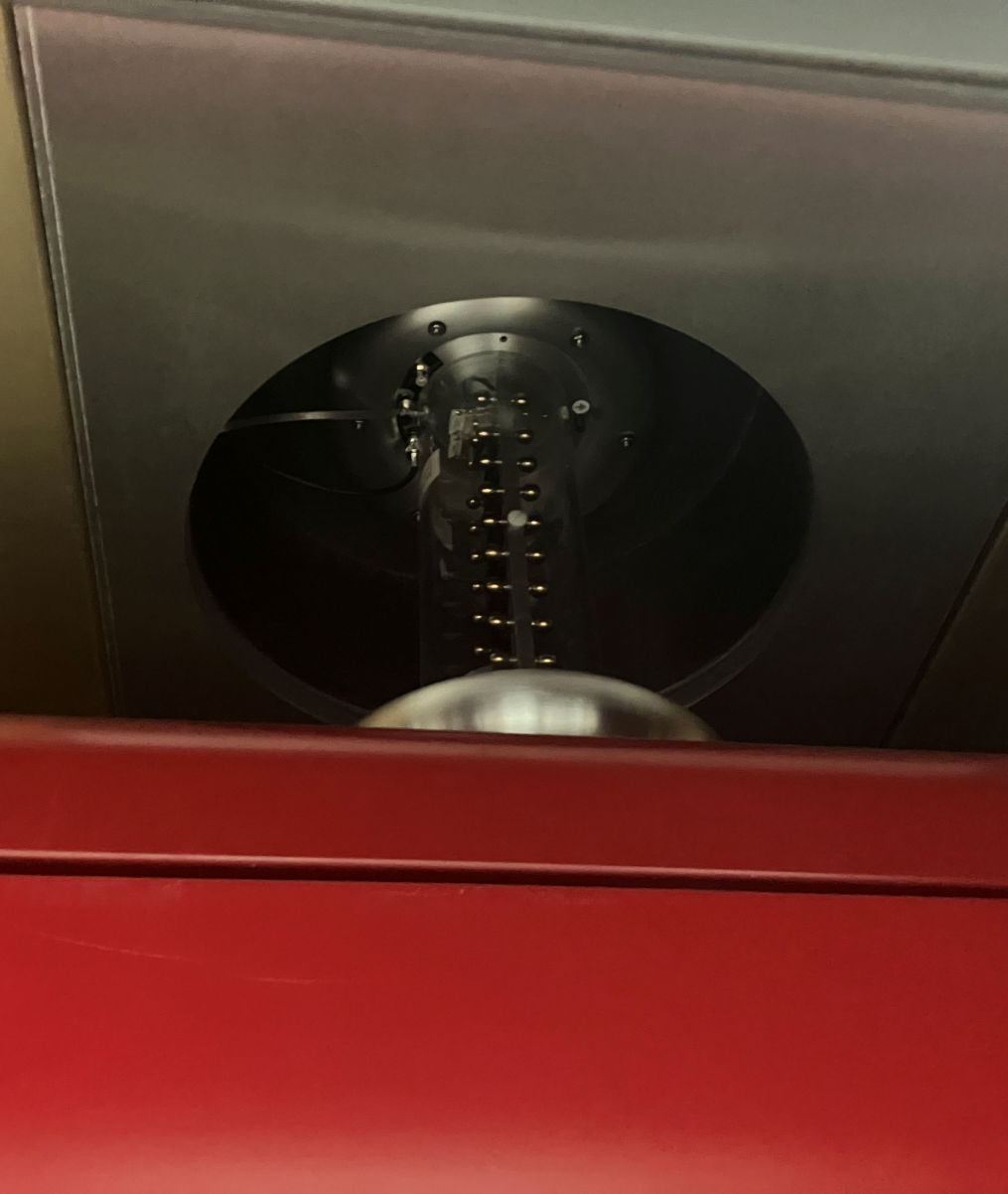

| Options: | Accel-Higvoltage Probe installed |
| Condition | tool run fully productive (24/7) between 15 and 160kv Energy until we switched it off on 03/2026 |
| Availability | Immediately. Start of shipment at the earliest 8 weeks after receipt of payment due to decontamination, dismantling and packing of the tool. depending on the availability of external service providers |
| Notes: | slight corrosion spots(rusty) on the frame, just a visual matter |
| | Clean-Room Table on frontside missing |
| | 0,5L Xe-Plasma-Bottle Holder missing + Terminal Water Cover missing |
| | HPES-Upgrade installed, but Upgrades were stoped after HPES-Upgrade! |
| | Rough-Pumps and Disk-Chiller not included |

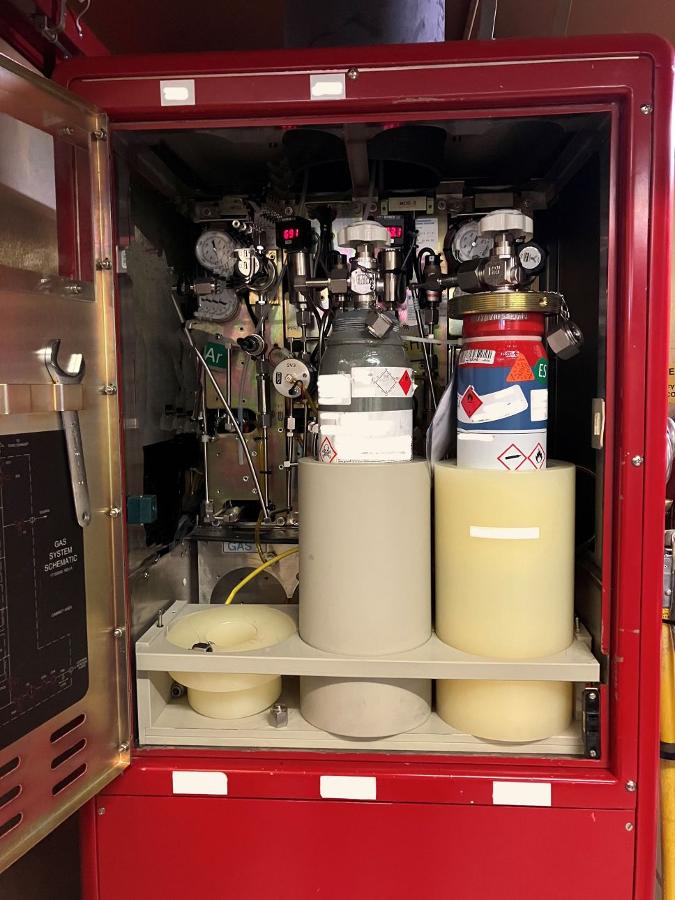

| | modified Gasbox-Frame for 6L-Bottles |
| | modified Plasma-Gun Power-Supply installed(TDK) |
| | Minor modifications on tool: like interlocks,... |
| | No Manual-Set/ no Spares |
| | If required, tool can be inspected on site |
