PLASMA-THERM DUAL PLASMA ETCH AND REACTIVE ION ETCH SYSTEM 200MM

Dual Plasma Etch and Reactive
Ion Etch Processing Systems

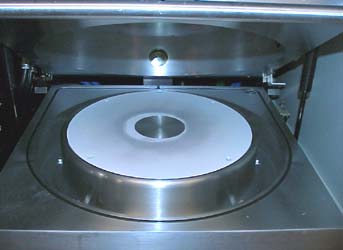

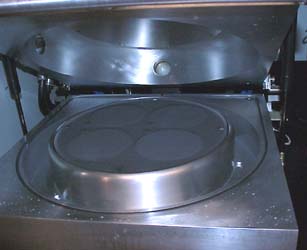

System consists of a process chamber, upper electrode (with gas feed), and substrate electrode.

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Plasma-Therm
Model	Wafer Batch 740/740
Wafer Size Range
Minimum	100 mm
Maximum	200 mm
Process	Plasma and Reactive Ion Etch

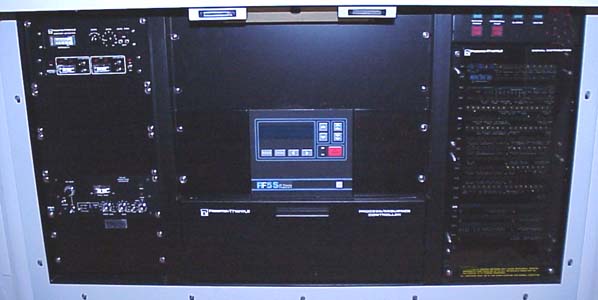

Controller Type	Microprocessor Controller Type
End Point Detection	Included
High Vacuum Pump	Leybold 361C
Roughing Pump	Ebara A10S
RF Generator Model	None

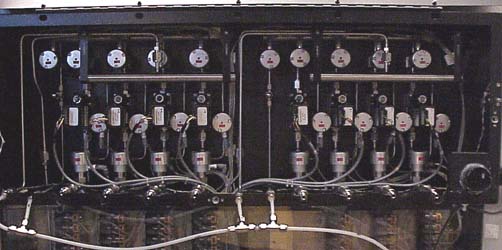

Number of Gas Inputs	Four Gas
Chillers
Number of Chillers	1
Chiller #1Manufacturer/Model	Tek-Temp MM1500/3000

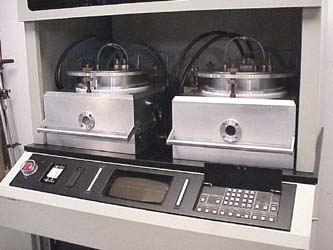

Other Information	Refurbishment to include the following: Control Upgrade: Our operating system upgrade has been developed as a direct replacement control system for PlasmaTherm process tools using off-the-shelf IO components and modern Windows Vista compatible control system software. A complete replacement of all IO and signal wiring is performed. None of the original IO is used. A full set of system documentation is provided which includes wiring diagrams, IO listings, OEM equipment spec sheets, and full system software source code. MFCs will be sent out for cleaning and recalibration; filters will be replaced. Wet clean of process chambers. Installation of rebuilt Leybold 361C turbo pump and controller. NB: Please note that the dual chamber configuration is designed to operate sequentially. The RF generator and vacuum sources are shared for each process chamber. However each chamber has its own set of four MFCs.
Exterior Dimensions
Width	45.000 in (114.3 cm)
Depth	43.000 in (109.2 cm)
Height	73.000 in (185.4 cm)
