FULL DESCRIPTION of Item 63666

in Other Plasma Processing Equipment and Tools
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 63666

Offered 2 Offered at Best Price


ASTEX CHEMICAL DOWNSTREAM PLASMA SOURCE

Chemical Downstream Plasma Source

Applied Materials part number: 3750-0112

ASTEX CHEMICAL DOWNSTREAM PLASMA SOURCE

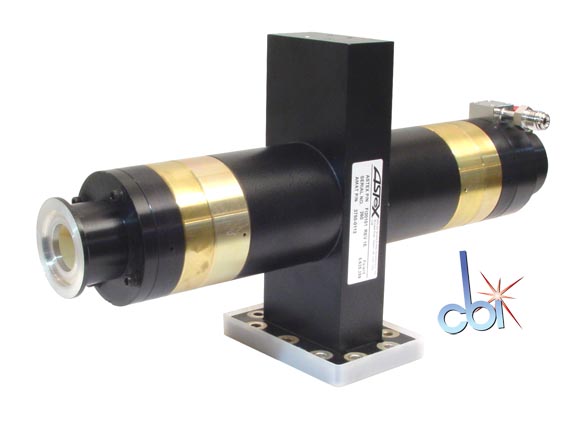

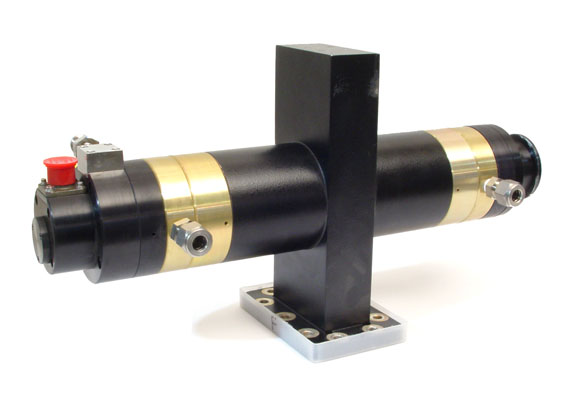

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 2
Manufacturer Astex
Model AX 7610
Description Chemical Downstream Plasma Source
Other Information

The AX7610 is a microwave plasma source for downstream chemical etch applications,
such as photoresist stripping and hard mask removal.
With replaceable quartz or sapphire tubes, the AX7610 downstream source offers flexibility of configuration to meet the most demanding application process parameters.
The sapphire tube version is compatible with much more severe CF4 and NF3 chemistries for isotopic etch and other applications.

Sapphire Plasma Source Tube
P/N FI20101
Applied part number: 3750-0112
Specifications:

2450 MHz
Max power output: 3 kW
Inert gas fitting: 1/4" VCR
Output flange: KF 40
Operating pressure: 2 to 8 Torr
Elect requirements: 24VDC 1 Amp
Process gas compatibility:
O2, N2, H2O, Ar, NF3, CF4, F6, and other Florine based gases

Exterior Dimensions
  Width 8.000  in  (20.3 cm)
  Depth 4.500  in  (11.4 cm)
  Height 14.500  in  (36.8 cm)
Weight 10  lb  (5 kg)
