Item ID: 84296

**1 Offered at Best Price**

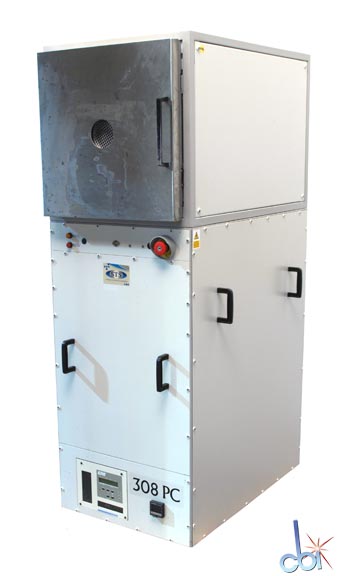

STS SURFACE TECHNOLOGY SYSTEMS BARREL PLASA ETCHER 600 WATT

Barrel Plasma Etcher

... other images

Location: Scotia, NY

Unit Price	Unstated
Number of Units	1
Manufacturer	Surface Tech Sys
Model	308 PC
Etcher Type	Barrel
Rated Power Output	600 Watts

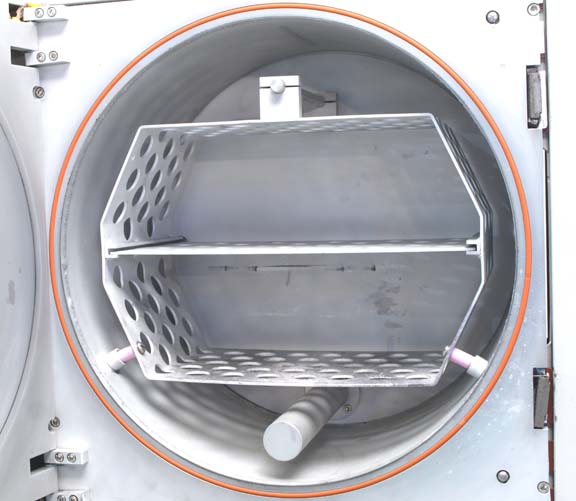

Reactor Center	Cylindrical
Reactor Center Size
Depth	10.00 in (25.40 cm)
Reactor Center Material	Aluminum
Automatching Network Included	Yes
Vacuum Pump Included	Yes
Vacuum Pump Model	Leybold D65BCS

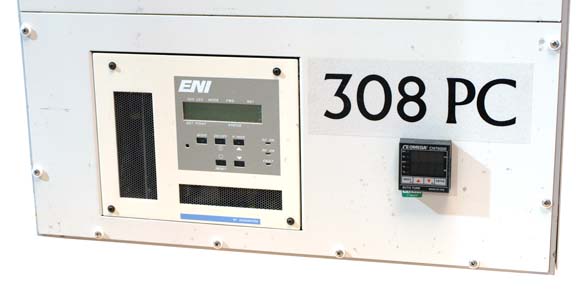

RF Generator Model	ENI AGC-6B

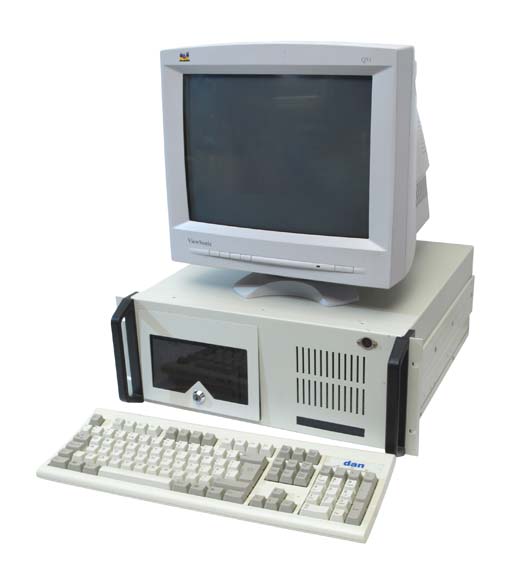

Other Information	Capacity: 100 of 100mm wafers 50 of 150mm wafers Process gas: O2, 10% H2/N2 Pressure range: 0 to 2 Torr Pump PFPE prepped Computer/monitor Plasma power: 600 Watt Chamber heat
Power Requirements	208 V 25.0 A 50/60 Hz 3 Phase
CE Marked	YES
Exterior Dimensions
Width	21.000 in (53.3 cm)
Depth	32.000 in (81.3 cm)
Height	65.000 in (165.1 cm)
