FULL DESCRIPTION of Item 147905

in Electron Beam Evaporators
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 147905

Offered 1 Offered at Best Price


CHA SEC 1000 RAP ELECTRON BEAM EVAPORATOR

Six Pocket Ebeam Gun, (2)Resistance Sources, 6kW Heater Array, 25.5" Bell Jar, Cryo Pumped
The CHA SEC-1000-RAP high-vacuum EBeam deposition system designed for use in production and research environments.

CHA SEC 1000 RAP ELECTRON BEAM EVAPORATOR
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer CHA Industries
Model SEC-1000-RAP
Description Electron Beam Evaporator
Vacuum System Cryo Pumped
Load Lock Included No
E Beam Power Supply
  High Voltage Maximum 8 kV
  Number of Guns Controlled 1
  Lateral/Longitudinal Beam Sweep Temescal Sweep Control
  Electron Source Type Six Pocket
  Crucible Size 15.00  cc  (0.92 cu in)
Vacuum System

CTI 10 Cryopump
LN2 Cold Trap
Model MPT-300 Molecular Sieve Mechanical Pump Trap (100 Watt)
CTI 8500 Compressor
Edwards E2M40 Mechanical Pump

Gas Inputs One
Gas Input Control Other
Substrate Heaters Yes
Film Thickness Monitor Yes
Other Information

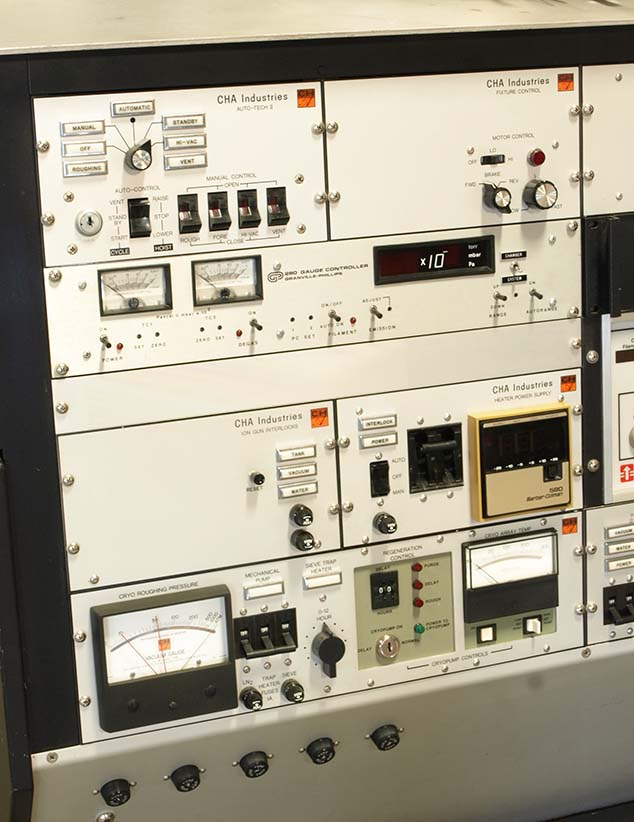

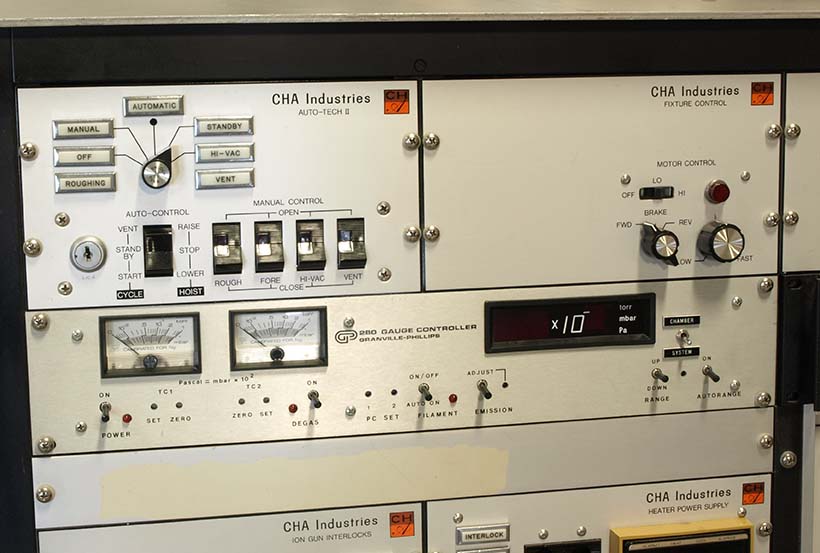

Auto-Tech II Valve Sequence Control
Motorized Hoist Assembly, 1/2HP
Six Pocket Ebeam Source--Temescal STIH-270-2MB6

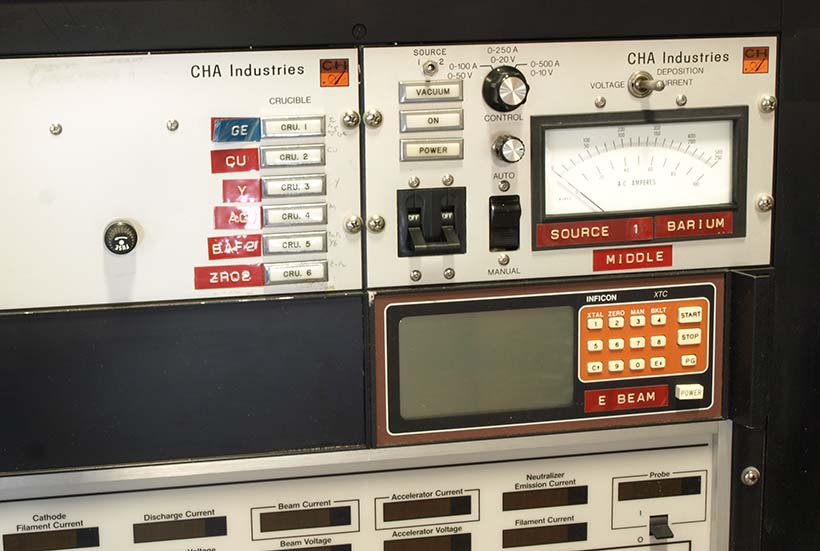

Inficon XTC Deposition Process Controller, Two Crystals Installed

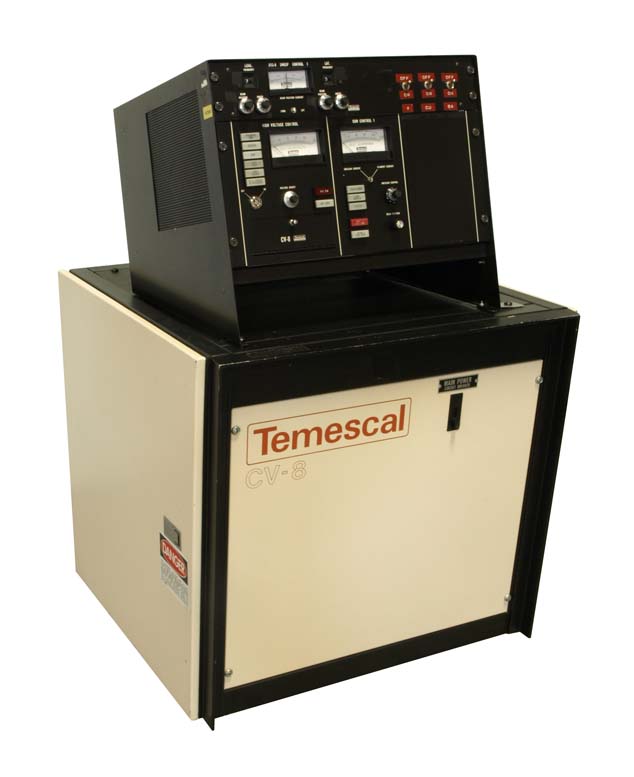

Temescal CV 8 Ebeam Power Supply, 8kV output
6kW Substrate Heater Supply w/ 6kW Heater Array
(2) Single Resistance Sources w/ 2kW Power Supply

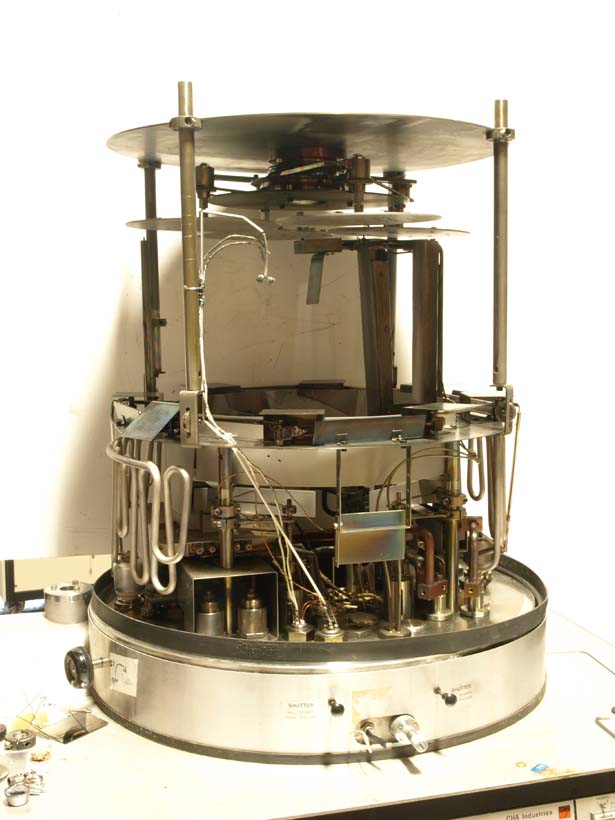

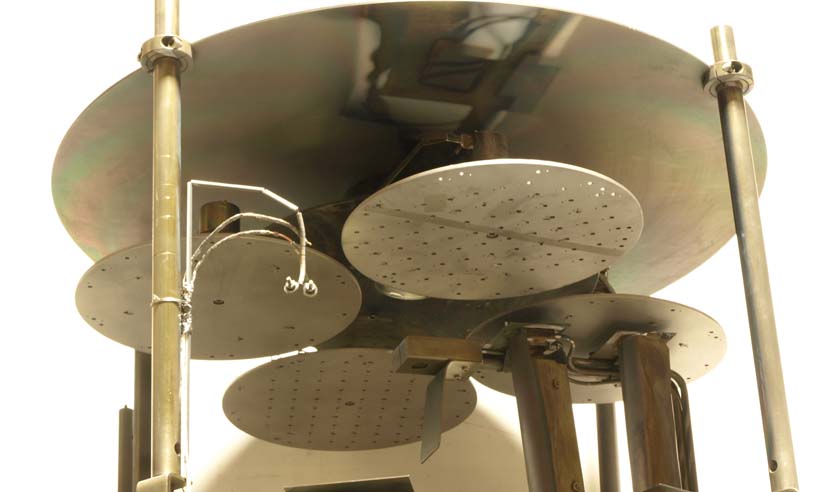

8.5" Dia. Flat Plate Planetary Fixturing With Spring Clip Specimen Retainers--Temescal Series TP-2
25.5" Stainless Steel Bell Jar , Water Cooled, (1) Viewport, (2) 2-3/4" CF Flanges

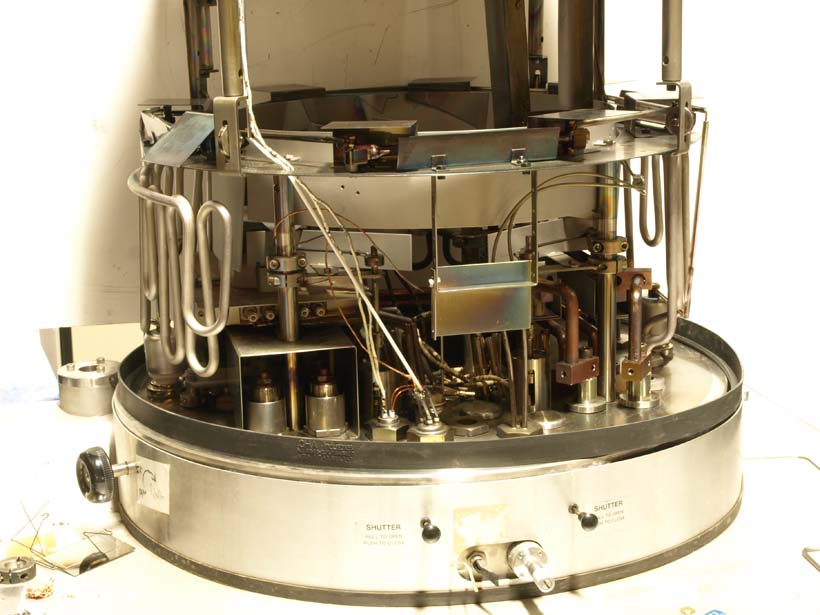

Manual Shutter Assembly
Manual Pocket Rotation

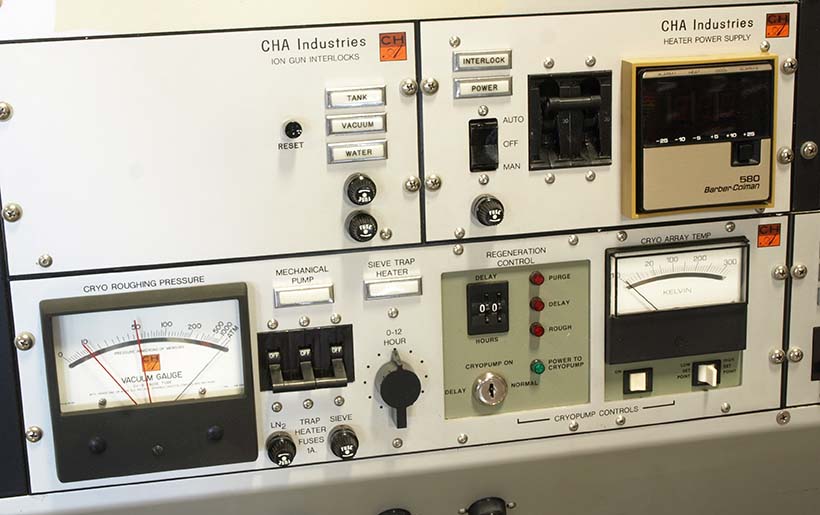

Serpentine Cryocoil Assembly

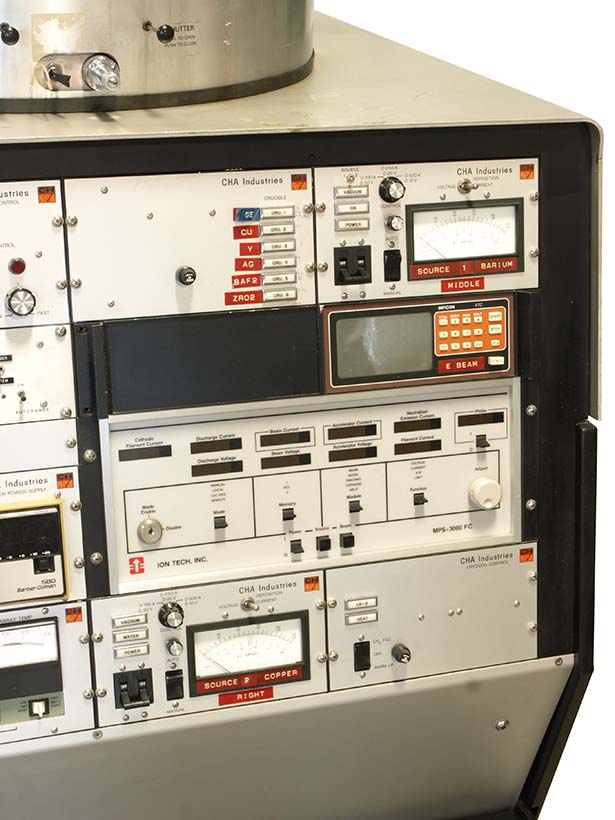

NB:  The ION Tech power supply shown in photos is NOT included.

Power Requirements 120/208 V     110.0 A     60 Hz     3 Phase
Exterior Dimensions
  Width 43.000  in  (109.2 cm)
  Depth 48.000  in  (121.9 cm)
  Height 96.000  in  (243.8 cm)
Weight 1,684  lb  (764 kg)
