FULL DESCRIPTION of Item 1798

in Other Wet Process Equipment
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 1798

Offered 1 Offered at Best Price

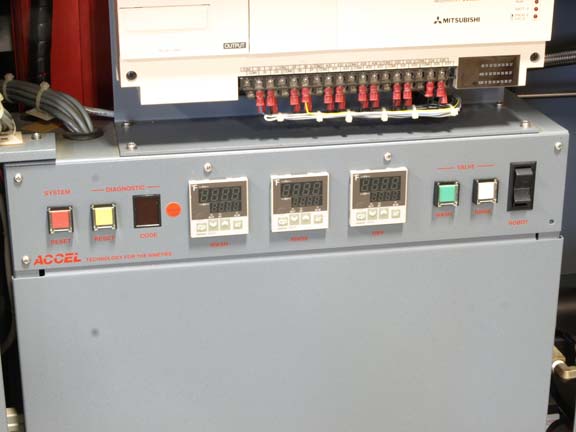

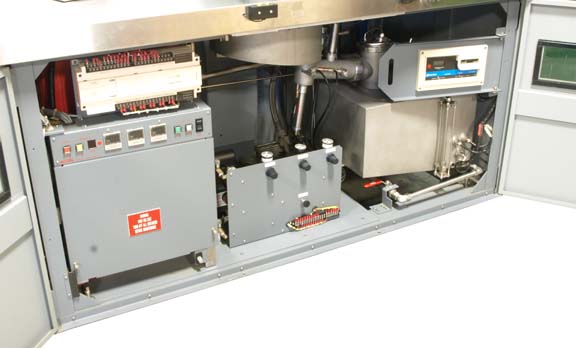

ACCEL CORP. SEMI-AUTOMATIC CENTRIFUGAL CLEANING SYSTEM

Semi-Automatic Centrifugal Cleaning System

Used for cleaning electronic assemblies

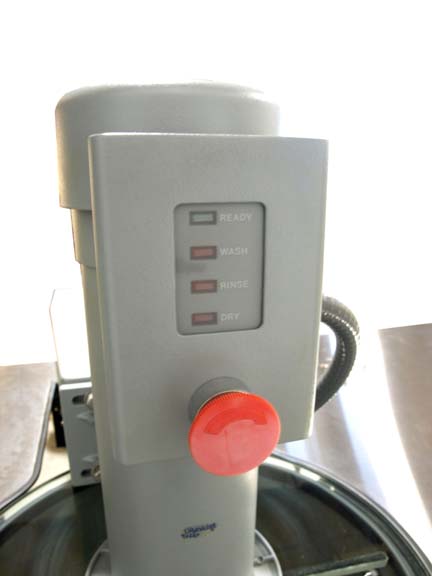

Three step process.: Washing, rinsing, drying

  • Circuit assemblies
  • Precision parts
  • Medical devices
  • Bumper wafers
  • Flip chips , MCMs, BGAs, and hybrid circuits
    No drain or waste water treatment required
    Automatic recovery of solvents from waste water

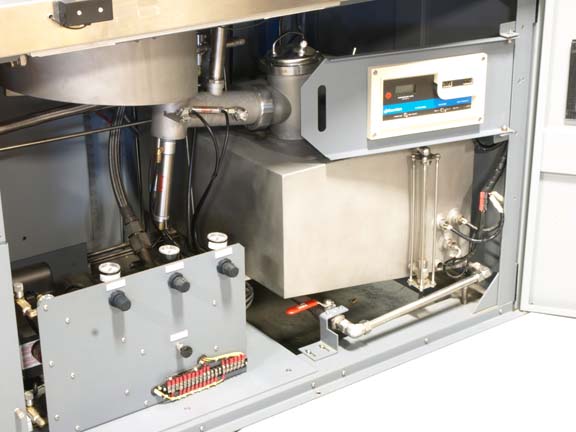

    Four stage water purification process
ACCEL CORP. SEMI-AUTOMATIC CENTRIFUGAL CLEANING SYSTEM
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Accel
Model MICROCEL II
Description Semi-Automatic Centrifugal Cleaning System
Other Information

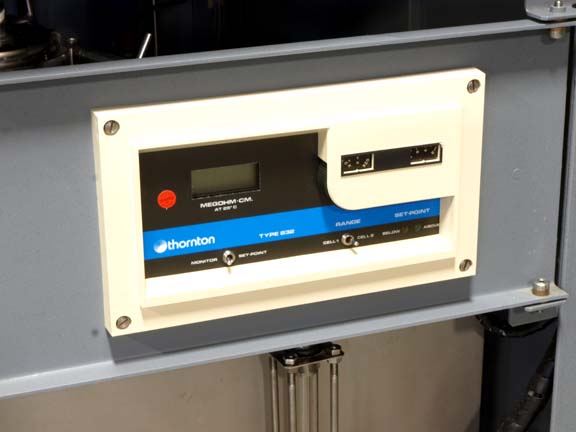

Cleaning: 0.0 - 2.0 gr NaCl/in2, resistivity of Solvent extract testing per DOD-STD-2000-1
Drying: 100%, no moisture remaining on product
Throughput: up to 200 ft2/hour, depending on product

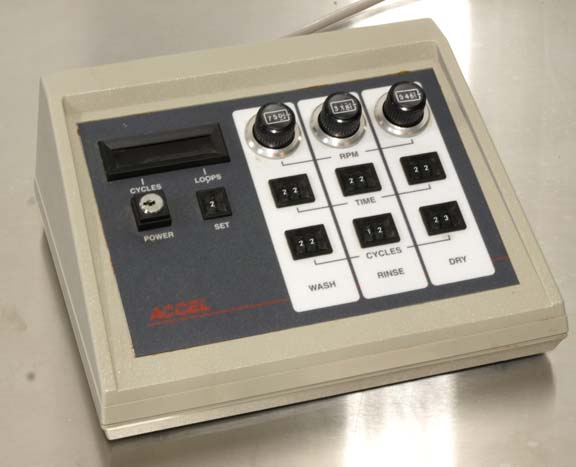

Speed range 0 to 1000 RPM
Process time:

  • Wash--0.5 to 2.0 minutes, typical
  • Rinse–1.0 to 2.0 minutes, typical
  • Dry–2.0 to 3.0 minutes, typical
    Chemistries:
  • Aqueous, Bio T200A
  • Axarel, Ionox HC
  • Armakleen, Ionox FCR
  • Bioact, EC-7R IPA
  • Bioact EC-15, Zestron

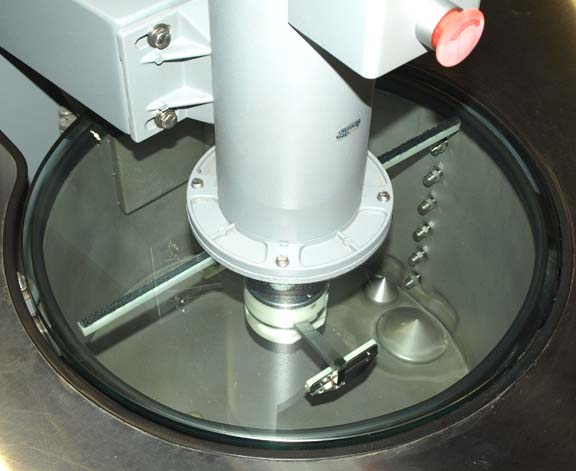

    Microcel II same machine, chamber has 16" Dia. will handle a 13" board
    More information available
Power Requirements 220 V     70.0 A     60 Hz     1¬†Phase
Year of Manufacture 1995
Exterior Dimensions
  Width 75.000  in  (190.5 cm)
  Depth 38.000  in  (96.5 cm)
  Height 41.000  in  (104.1 cm)
Weight 1,250  lb  (567 kg)
