Unit Price |
Unstated |
Number of Units |
1 |
Manufacturer | Blue M |
Model | POM-206C 1 |
Maximum Temperature | 343 ºC (649 ºF, 616 ºK) |
Heat/Cool Controls |  |
Control Type | Programmable |
Overtemperature Protection | YES |
Capacity/Volume Box | 4.10 cu ft (0.12 cu m) |
Chamber Size |  |
Width | 20.00 in (50.80 cm) |
Depth | 18.00 in (45.72 cm) |
Height | 20.00 in (50.80 cm) |

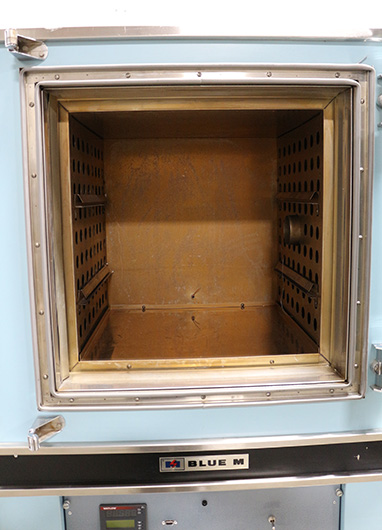

Chamber Characteristics |  |
Chamber Construction | Stainless Steel |
Maximum Number of Shelves | 2 |
Number of Shelves Provided | 0 |
Number and Size of Access Ports | 1- 2.75" Right side |
Viewing Window | YES |
External Cooling | Air Cooled |

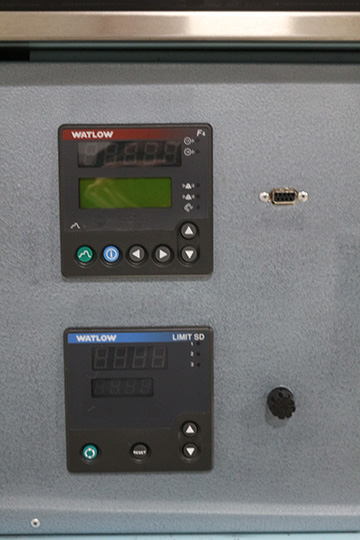

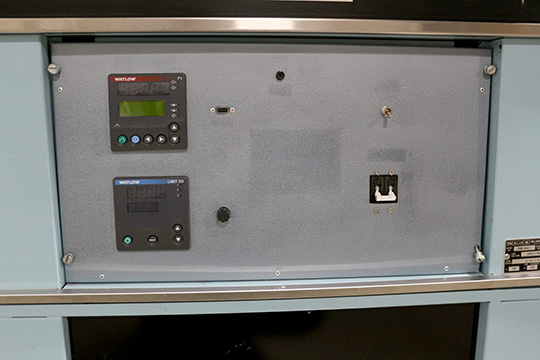

Other Information | Controller: Watlow F4 -- Programmable, Up to 256 steps can be programmed into as many as 40 nameable profiles.
Watlow Limit SD-- Over temperature control.
|
Power Requirements | 240 V
17.0 A
60 Hz
1 Phase
|
Exterior Dimensions |  |
Width | 35.000 in (88.9 cm) |
Depth | 30.000 in (76.2 cm) |
Height | 70.000 in (177.8 cm) |
Weight | 460 lb (209 kg) |
