ALL CATEGORIES   Semiconductor Mfg   Wafer Fabrication Eq   Chemical Vapor Dep   PECVD Tools   Production Tools    View    Search-by-Specs    Input    Edit


in Cluster PECVD Tools
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 30246

Offered 1 Offered at Best Price

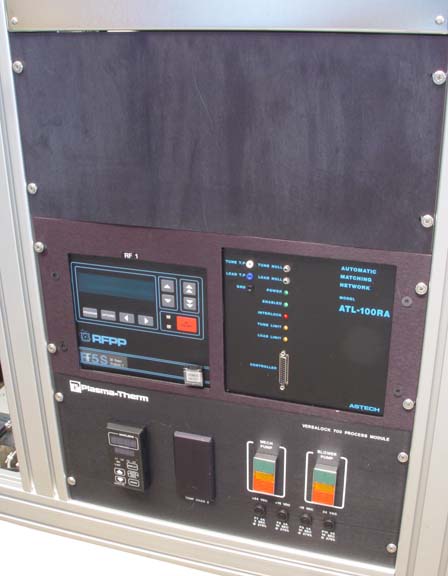

Single Chamber PECVD. Mixed Frequency Deposition

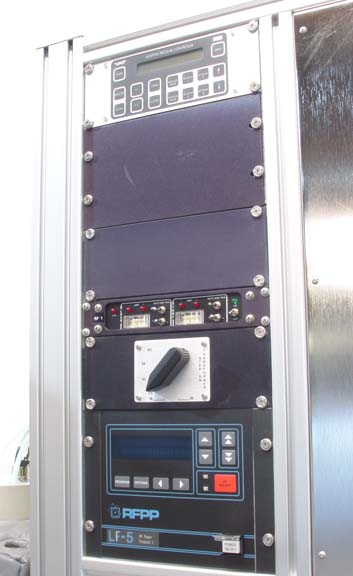

(MFD) Both High Frequency (13.56 MHz) and Low Frequency (50-460 kHz)
RF power delivered both electrodes.

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Plasma-Therm

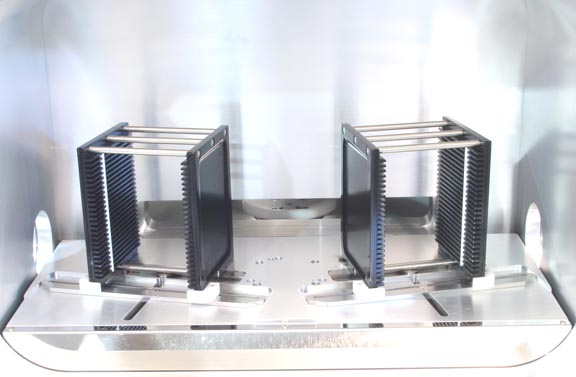

Wafer Size Range
  Minimum 50 mm
  Maximum 200 mm
  Set Size 100 mm
Number of Chambers 1
Process Capabilities Nitride Depostion

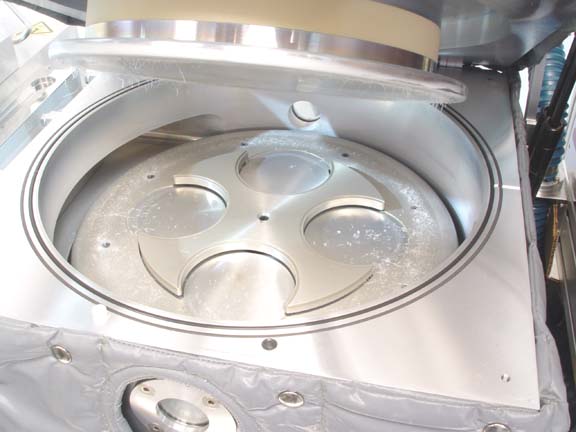

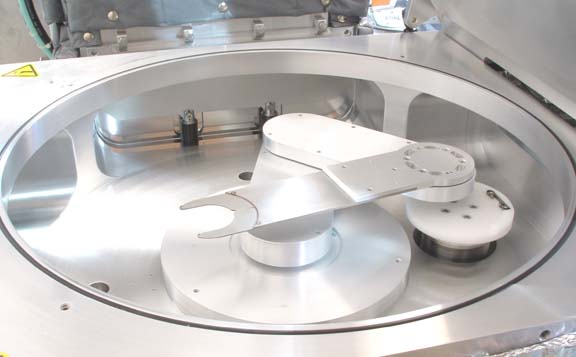

Chamber 1 Description

13.5" Electrode

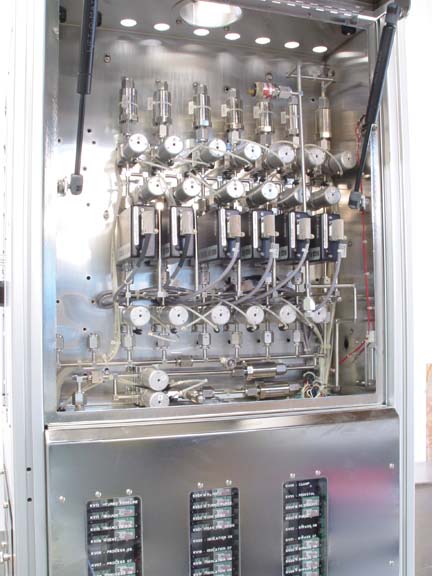

Gas Delivery

  • Six Channel; (2)2000 sccm, (2)1000 sccm, (1)200 sccm, (1)20 sccm

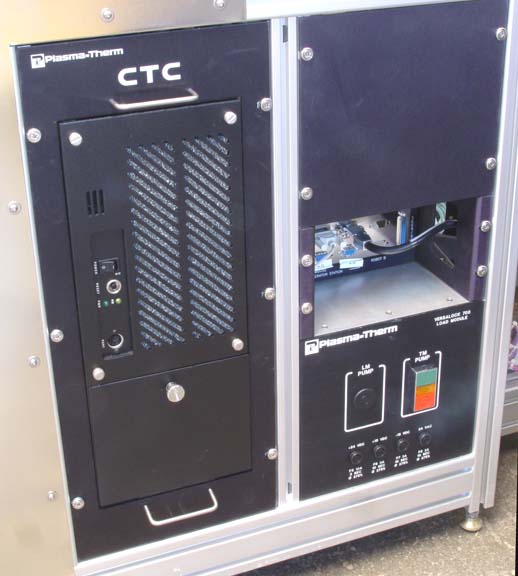

Controller Type PC Controller Type
Temperature Control T/C
External Cooling Water Cooled

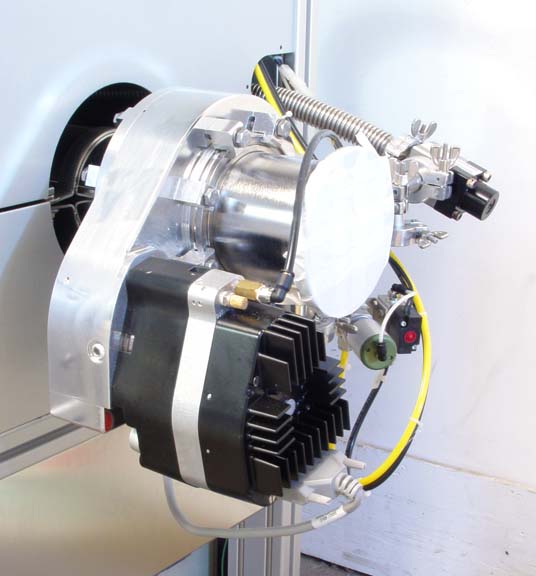

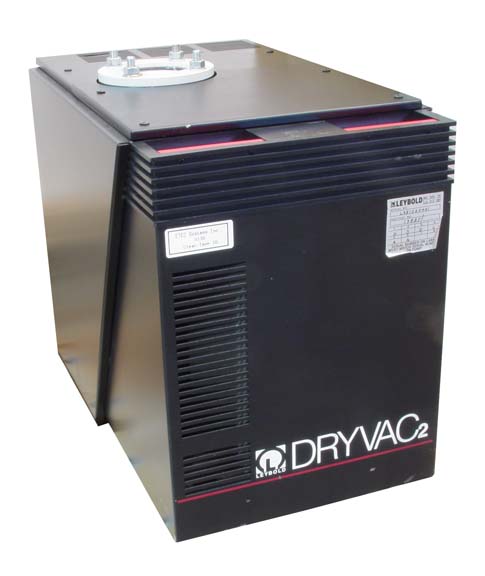

Leybold Pump Package

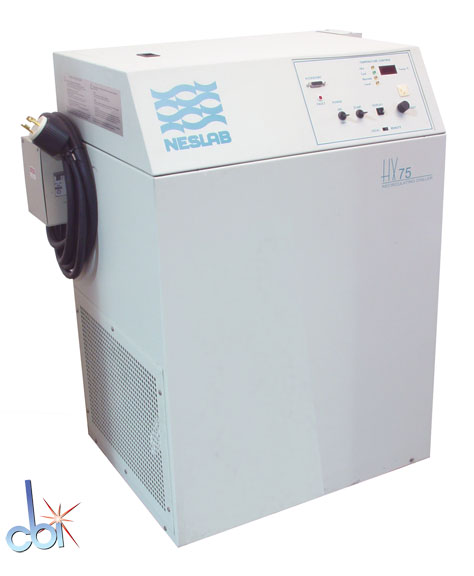

Neslab HX 75 Chiller

Other Information

Computer #1 dual boot VxWorks Wind River Systems 5.3.1 BSP version 1.1/1 and
Windows 3.11 System Monitor VLR v.1.10

Computer #2 NT4, Versaworks 2.5

Year of Manufacture 1999
Condition Excellent

(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.
