FULL DESCRIPTION of Item 43267

in Wafer Transfer Units
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 43267

Offered 1 Offered at Best Price


BROOKS AUTOMATION WAFER TRANSFER ROBOT AND ALIGNER

Wafer Transfer Robot and Aligner

BROOKS AUTOMATION WAFER TRANSFER ROBOT AND ALIGNER
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Brooks Automation
Model ACUTRAN 7
Description Wafer Transfer Robot & Aligner
Accessories

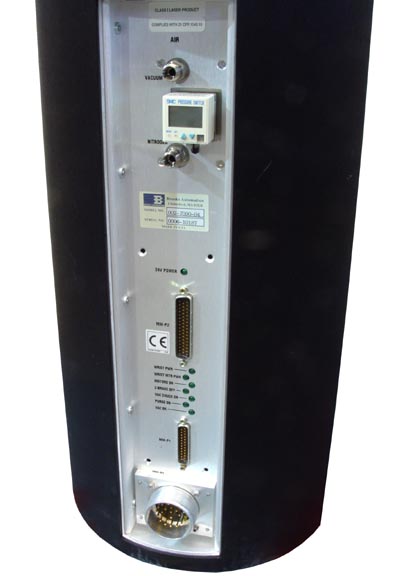

Robot arm p/n: 002-7090-04
Control module p/n: 002-5870-07

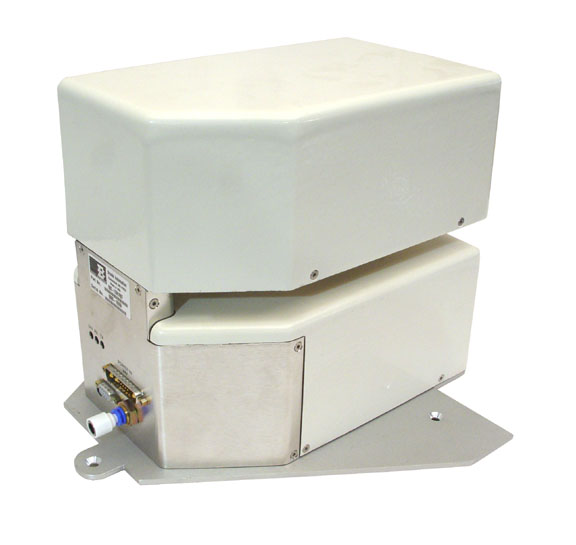

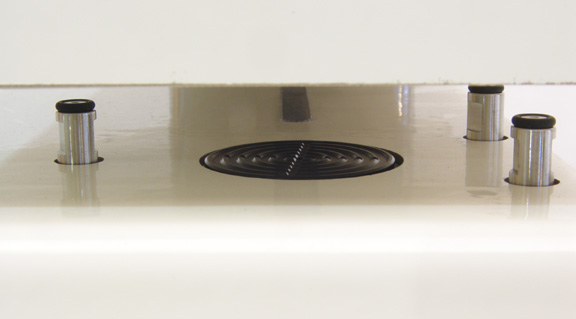

Wafer aligner p/n: 002-7391R07

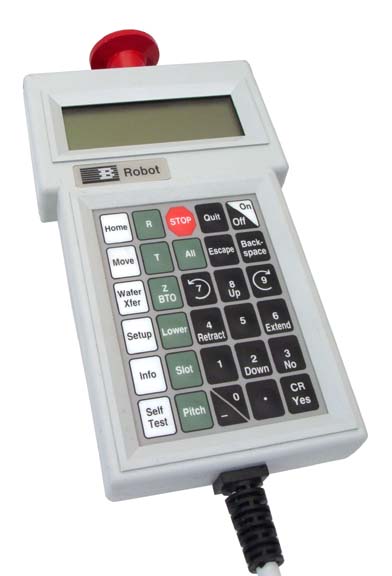

Control pendant
Cables
NB: Power supply to be supplied by customer, 24V 30A.

Other Information

Specifications

  • Radial axis stroke:
    Range of motion: 32.16 in
    Speed: 24 in/sec
    Repeatability: 0.003"
  • Rotational axis:
    Range of motion:Infinite
    Speed: 360 Deg./sec
    Repeatability:0.10 Deg.
  • Z Axis:
    Range of motion:17.25 in
    Speed: 12 in/sec
    Repeatability:0.003"
  • Transfer time: 4.5 sec
  • Wafer size: 100mm to 300mm
  • Load capacity: 1.2 Lbs.
  • Arm:Two link "SCARA" type

    Robot configured to application: F4-W3-V53-1-W3, V1.6
Condition Very Good
Exterior Dimensions
  Width 10.750  in  (27.3 cm)
  Height 27.500  in  (69.9 cm)
Weight 130  lb  (59 kg)
