FULL DESCRIPTION of Item 7358

in Other Wet Process Equipment
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 7358

Offered 2 Offered at Best Price


SEMITOOL SPRAY SOLVENT TOOL

Spray Solvent Tool
Refurbished by Rhetech in 2000

Photoresist develop/strip, polymer removal, pre-metal deposition cleaning.
High speed rinse and dry of wafers, with low particle counts and reduced DI water consumption.

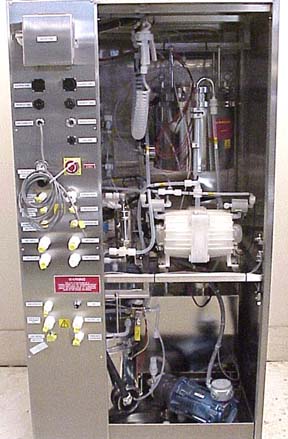

SEMITOOL SPRAY SOLVENT TOOL
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 2
Manufacturer Semi-Tool
Model WST 406 MG
Description Spray Solvent Tool
Accessories

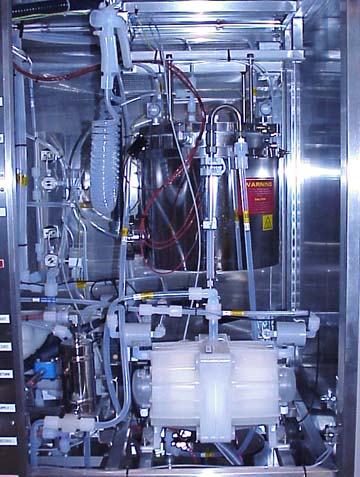

Chemical delivery module.

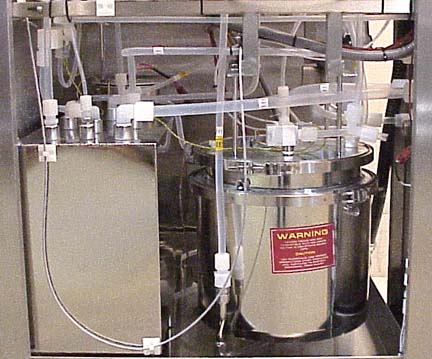

  • Dual heated chemical tanks, 6 Gal.

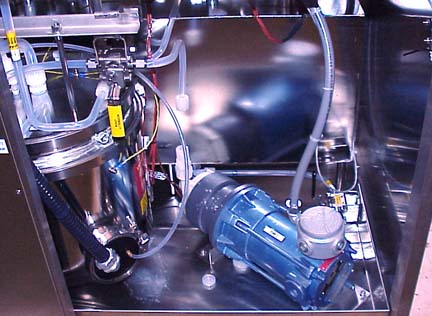

  • Dual chemical pumps
  • Chemical waste tank with pump

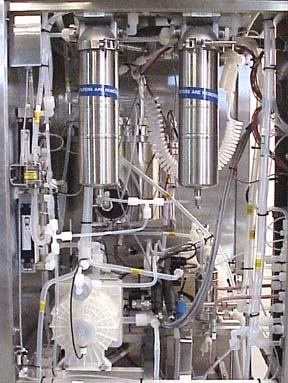

  • Dual chemical filters
  • All stainless steel construction
Other Information

Features:

  • Front loading with on-axis spin
  • Self-contained fluid dispensing and recirculation
  • System surfaces that come in contact with solvent solutions are stainless steel or Teflon coating
  • System spray and atomizing manifolds provide flexible patterns for fluid delivery

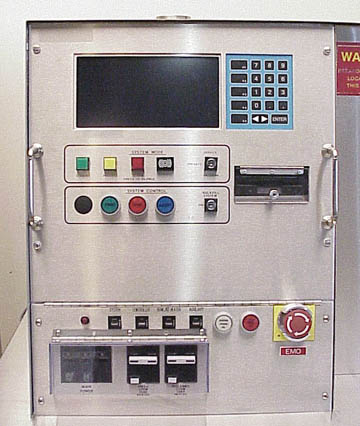

  • Microprocessor controlled process recipes perform system functions

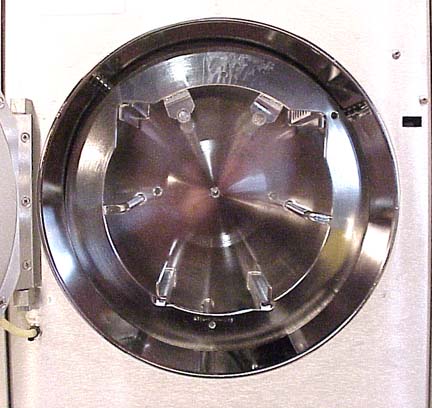

    Model 270 bowl, up to 150mm product
    Rotor installed for 150mm, p/n: A194-60MB-0215
Power Requirements 208 V     30.0 A     50/60 Hz     3 Phase
Condition Excellent
Exterior Dimensions
  Width 48.000  in  (121.9 cm)
  Depth 34.000  in  (86.4 cm)
  Height 62.000  in  (157.5 cm)
Weight 1,315  lb  (596 kg)
